Your present location:Home >> T/P Front-light >> 4.3 inch e-paper display parallel interface with frontlight partial refresh 800x600 GDE043A2-FL
  • Product Name: 4.3 inch e-paper display parallel interface with frontlight partial refresh 800x600 GDE043A2-FL
  • Code: 04304-1
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 191

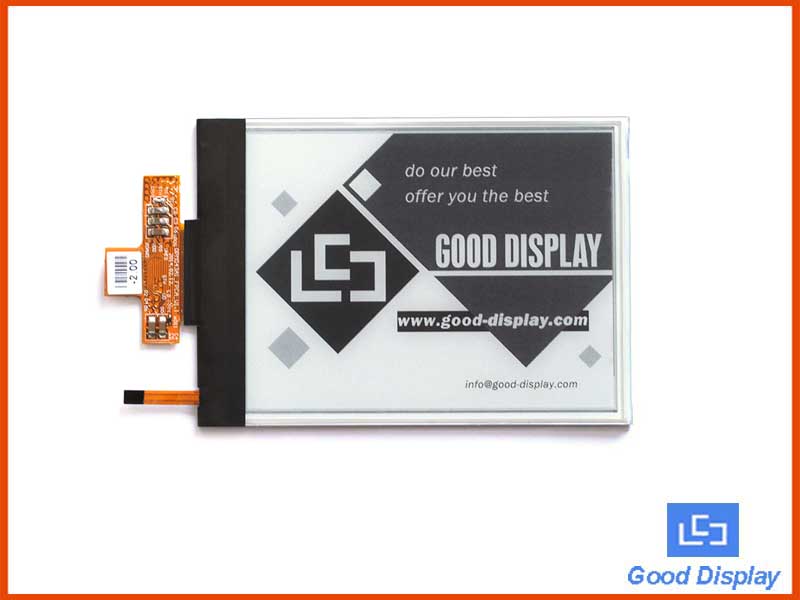

This is a Parallel interface 4.3 inch e-paper display with frontlight, 800X600 resolution, 26 pins FPC connection. The module is a TFT-array driving electrophoretic display, with integrated circuits including source and gate drivers.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, GDE043A2-FL is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, smart cards and other related products, and it can be used in dark surrounding.




· Parallel Interface
· With frontlight can be used in dark surrounding.
· Partial refresh
· Come with helpful development resources and manual (STM32 platform )






Part Number

GDE043A2-FL

Type

Dot Matrix

Resolution

800x600

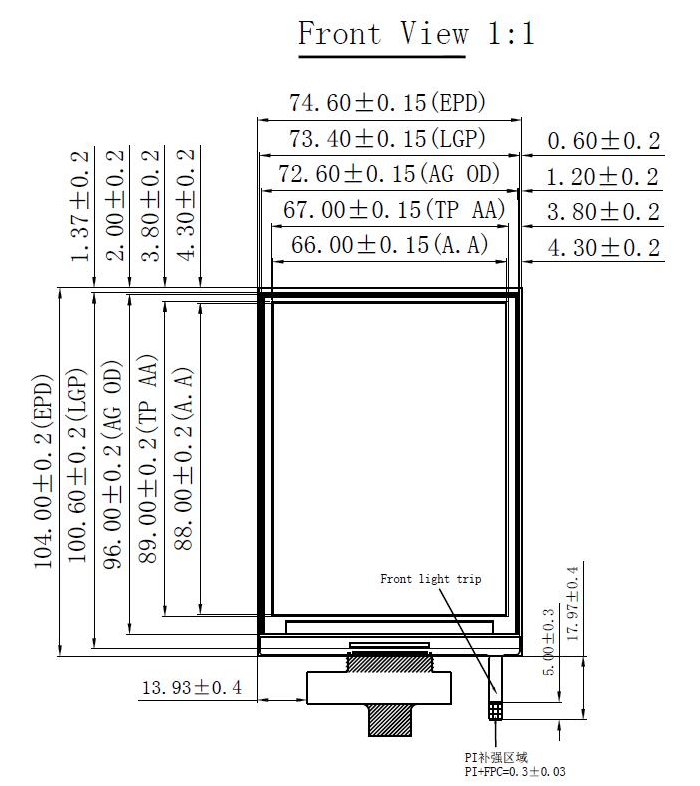

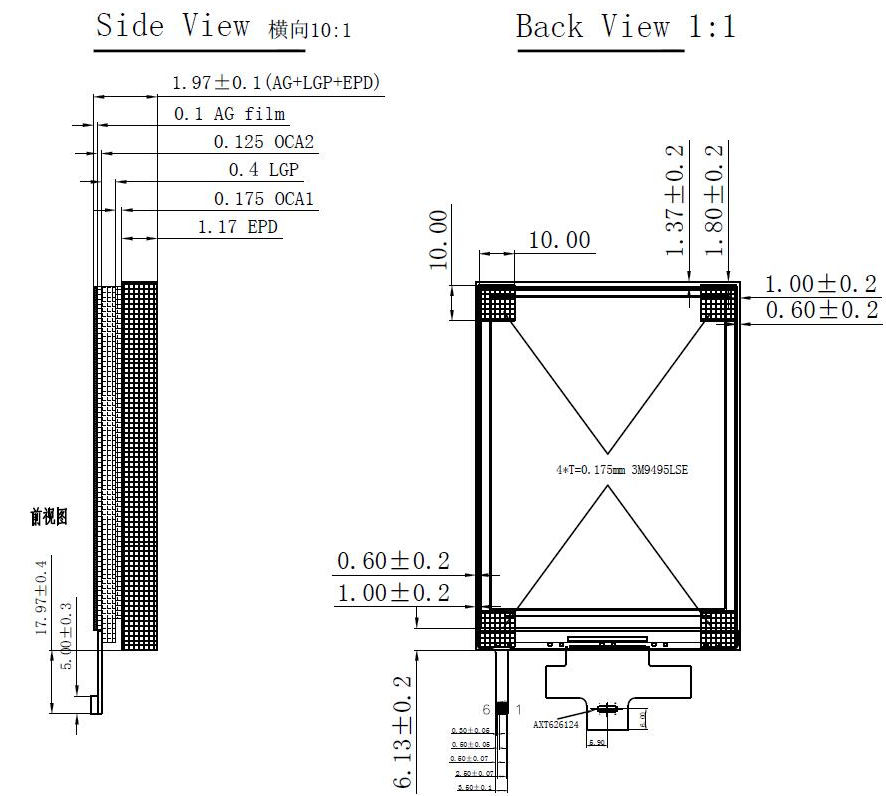

Outline Size(mm)

126.5x74.6x1.97

Active Size(mm)

88x66

Pixel Pitch(mm)

0.11x0.11

Operating Temp.

0℃~50℃

Storage Temp.

-20℃~70℃

LED Number

5 LEDs

Color

Black, White

Max Grayscale

16

Time of refresh(s) 1
Time of partial refresh(s) 1
Purchase Online



buyepaper











Part Number

Resolution

Feature

Full refresh

Frontlight(optional) T/P(optional)
GDE043A2 480x800 Parallel interface,Partial refresh 1s
GDEP043ZF3 800x600 Parallel interface 1s
GDE043A2-T 800x600 Parallel interface,Partial refresh,With touch screen 1s
GDE043A2-FL 800x600 Parallel interface,With front light 1s









File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDE042A2-FL Spec.

1.0

English

2019-12-18

1.68MB

Sample Code 1.0 English 2019-12-18 1.73MB
Picture Production and Bitmap Convert 1.0 English 2020-02-04 501.6KB









Development Board

File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 DESTM32-T Specification

                   1.1

               English

       2017-11-24

      703.97KB

 Schematic DESTM32-Tcon-11

                   1.1                English        2017-11-24         830.87KB

 Schematic DESTM32-L1-11

                   1.1                English        2017-11-24         779.58KB
TPS65185                1.0             English      2019-02-18        2.37MB
AVT6203A                1.0             English      2019-02-18        1.79MB






File Type

Description (Click to see more)

Language

Update Date
The Principle and Advantage of E-Paper English 2012-10-25
Matrix E-ink Display -- FAQ English 2017-08-16
Matrix E-ink Display -- FAQ Pt. 2 English 2018-11-13
Product list-1 English 2018-09-29
Product list-2 English 2018-09-29
Product list-3 English 2018-09-29
RoHS English 2018-12-27

Warranty

English

2016-10-25

Precautions for E-paper Display

English 2019-03-11











Q:Can this e-paper support partial refresh?
A:Yes.
