  • Product Name: AFM203T RTL8720CM WIFI bluetooth module
  • Code: AFM203T
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 61

Click to buy Now!!







Introduction:

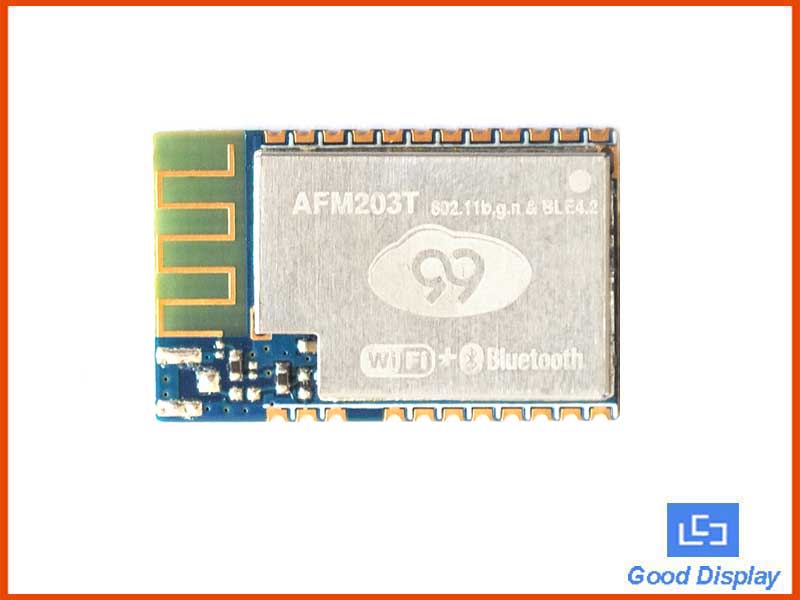

AFM203T is a low-power and small-volume embedded Wi-Fi + Bluetooth module. It uses Realtek's highly integrated wireless RF chip RTL8720CM and a small number of peripheral devices. The chip has built-in 802.11b / g / n Wi-Fi wireless Built-in ARM Cortex-M4F processing core, with large capacity (FLASH: 2MB ROM: 384KB) storage space (FLASH: up to 128MB), running space (SRAM: 256KB) and rich peripheral resources, RTOS system platform in MCU And the lightweight LWIP protocol, through packaging and optimization of the SDK, can meet a variety of embedded wireless communication applications.

The official designated development board that matches the AFM203T module is RTL8720CM-EVB.







Technical details:

ARM Cortex-M4 processing core, clocked at 100MHz

3.3V, 5V DC single power supply

Package: Stamp Hole

Size: 24(L) × 15(W) × 3.0(T)mm

AFM203T structure







WLAN, Bluetooth parameters

Standard: 802.11 b / g / n 1x1
Transmit power: 11b: 18dBm / 11g: 16dBm / 11n: 15dBm
Receiving sensitivity: 11b: -93dBm / 11g: -82dBm / 11n: -76dBm
Communication rate: 11Mbps @ 11b / 54Mbps @ 11g / 150Mbps @ 11n
Working mode: STA, AP, STA + AP, Buletooth
Hardware encryption: WPA / WPA2
Antenna: external antenna, IPEX antenna interface, on-board antenna








Features:

Complete IoT solution (low-level development, cloud services, APP)
Support AT + application set secondary development
Support secondary development of C-SDK package
Support OTA wireless upgrade
Support Bluetooth smart networking, Airkiss WeChat distribution network function
Industrial-grade application design, 4-layer PCB design, performance consistency guarantee
FCC / CE certification, RoHS compliant






Software Features

Built-in IPV4 / IPV6 protocol stack
Built-in FreeRTOS system
Supports low power BLE 4.0
Supports HTTP / HTTPS (SSL) encryption
Support Ella Cloud, Amazon, Cloud, JD Cloud, Alibaba Cloud
Support customized private cloud or user private cloud docking
Support secondary development, secondary integration









Module model

Name

Description

AFM203TI

PCB on-board antenna

AFM203TO

IPEX external antenna

AFM203TP

RF-Pin external antenna







Application:

Intelligent electrical outlet
Industrial control
Intelligent home appliances
Internet of things applications
Thermal printer
LED control card
The POS









Download:

File Type

Description (Downloadable)

Version

Language

Update Date

Size

Started guide 1.0 English 2020-10-16 104KB

Burn tool

1.0 English 2020-10-16 258KB
