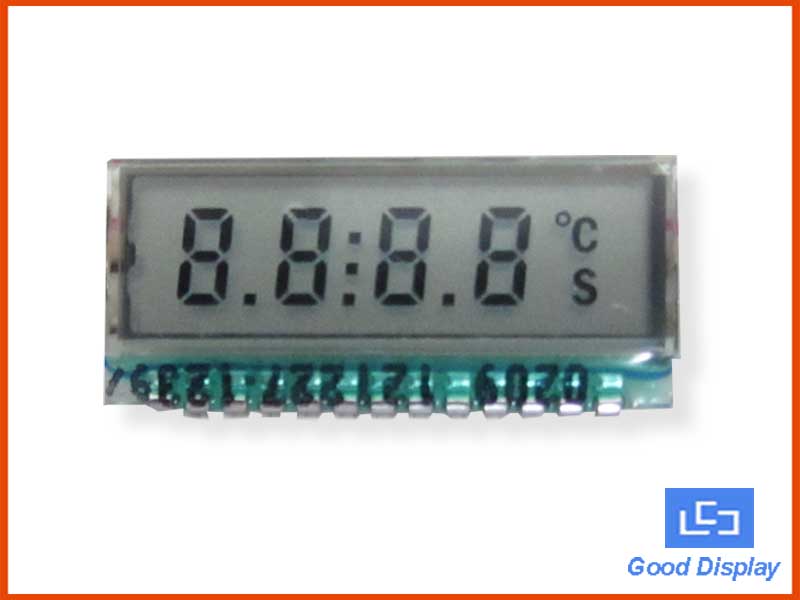

  • Product Name: 4 Digits LCD Panel, GDC0209
  • Code: 034
  • Quantity in stock: Yes
  • Retail price: 0.96USD
  • Unit of measurement: pcs
  • Net weight:
  • Views : 2793

Manufacturer GOOD DISPLAY
Part Number GDC0209
Display content

4-digits

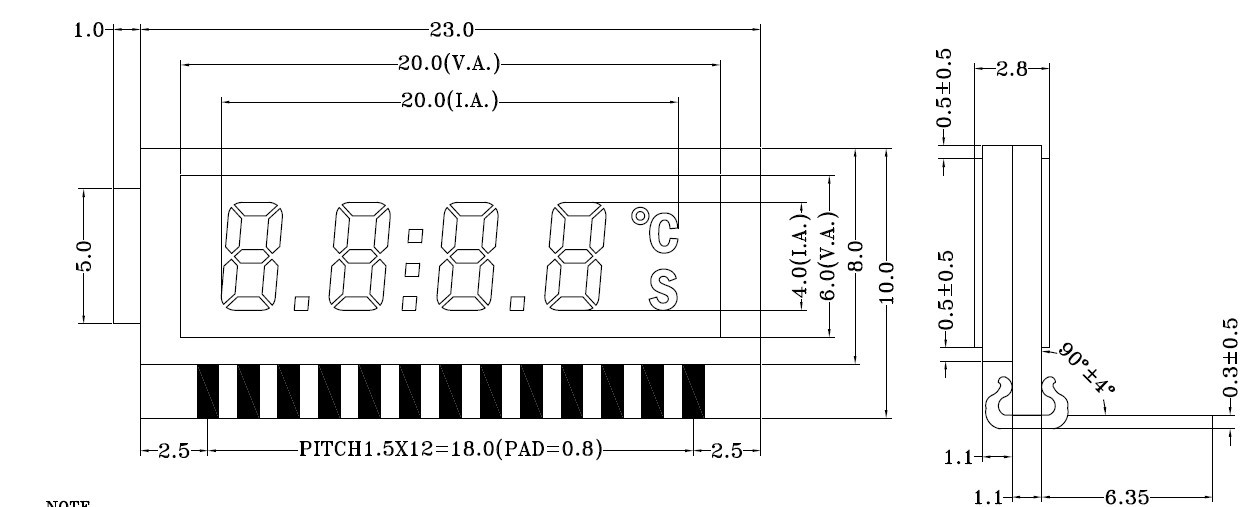

Outline Dimension 23.0x10.0x2.8mm
Active Area 20.0x6.0mm
Viewing Direction 6:00/12:00 o'clock
Backlight Color NO
Operating Voltage 2.50V



Operating Temp



Normal temp LCD:-10℃—60℃

Extended temp LCD: -20℃—70℃

Super-extended temp LCD: -40℃—80℃



Storage Tempe

Normal temp LCD:-20℃—70℃

Extended temp LCD: -30℃—80℃

Super-extended temp LCD: -45℃—85℃

Drive method 1/4Duty  1/3Bias
Display Type TN Positive
Polarizer Mode Reflection
Connector Pin (16 Pins) Pin Length is optional
Recommended Driver IC HT1621(Without)
Net Weight 3g
