Your present location:Home >> TFT LCD Display >> 2.4" TFT Module GD24TWD
  • Product Name: 2.4" TFT Module GD24TWD
  • Code: 8024
  • Quantity in stock: Yes
  • Retail price: 31.5USD
  • Unit of measurement: pcs
  • Net weight:
  • Views : 4336




GD24TWD VER:2.00 T24P138 color digital tft lcd module is composed by GD24TWD VER;2.00 driver board
And GT T24P138 LCD panel , it can input CVBS signal . with PAL and NTSC system. Button control method , with
OSD menu control . it is mainly used for video door phone or other display electronic equipments.







(Lastest type,Buy it now!!!)

LCD display size                                2.4 inch
LCD aspect ratio 4:3
backlight LED
Brightness                                    250 cd/m2
Resolution                                                        480 x (RGB) x 234
View angle(U/D/L/R) 10/30/40/40
Contrast 500:1(Contrast)
Input signal VIDEO
System: PAL/NTSC(automatic identifying and converting)

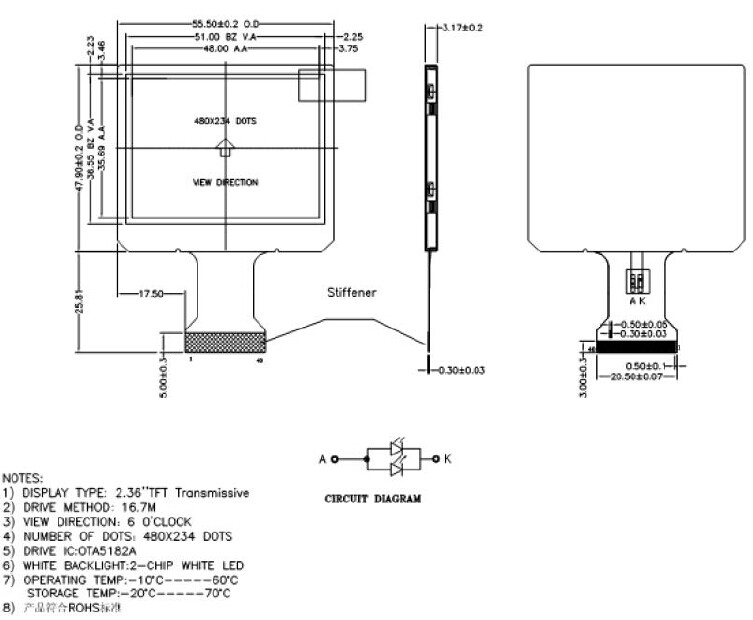

LCD screen dimension                  55.2(W)x47.55(H)x2.9(D)
Active Area(mm)                          48.0(H)x35.685(V)
Driver board imension                              50.0(W)x50.0(H)x7.0(D)
Working voltage(Power supply <=0.3VP-P) Min:DC9V;T:DC12V;Ma x :DC18V (5V Option)
Working current(DC 12V power supply) DC150mA±20mA
Power consume 1.8W(TYP)
Starting time 2.0ms
Operation temperature -10°C~60°C
Storage temperature -20°C~70°C
Relative humidity 5~95%RH





Wiring Diagram




PCBA   (A/D board)




Please see following important safety instructions
1. The nominal voltage of DC input to the A/D board is 12V, The size of DC current depends on the TFT LCD, audio amplifier, etc. Please note that your AC/DC adapter's output plug need to match the DC input jack,the diameter of the jack is 5.5 mm.
2. Before connecting these input/output ports, Video port, it is strongly recommended that your turn off the A/D board and remove the DC 12V plug from the DC input jack.
3. Don’t put the A/D board into an airtight package. When it works, it will produce a certain heat.
4. When assembling it, please use a suitable force; don’t distort the PCB and other components.






1. This product comes with one-year warranty. Buyers must contact us first for the exchange within the warranty period.
2. All the products will be 100% test before delivery.
3. Our warranty does not extend to any products that are physically damaged or are not under normal operating conditions as a result of misuse or improper installation on the buyer's part.
4. We will provide a Returned Merchandise Authorization (RMA) Number for each item that needs returning. We do not accept the returns without a RMA number.
5. The returns should be returned with our original packages.
6. Defective products must be returned within 30 days from the RMA issuing date. Otherwise, no replacement will be made.
7. Customers must contact us first for the return address.
8. No refund is accepted after 30 days of receipt.
9. The returns made for non-defective merchandise will be charged a up to 30% restocking fee.
10. In all cases, buyers pay for the shipping fees at their own cost to return products for exchange or refund. We will be responsible for the postage of replacements.
11. The refund will be made upon receipt of the return item. After we receive the product, we inspect it to determine the cause of any defect, then update by email with our findings. This process usually takes five business days.
