Your present location:Home >> 2-Color EPD >> 12.48 inch large e-ink display, 4 Grayscale big e-paper screen, GDEW1248T3
  • Product Name: 12.48 inch large e-ink display, 4 Grayscale big e-paper screen, GDEW1248T3
  • Code: 124802
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 2200

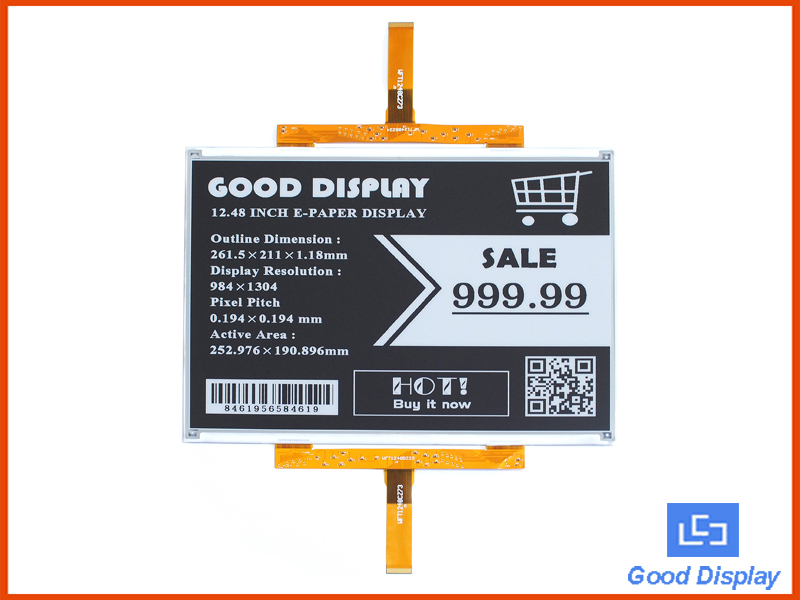

This is an 12.48 inch 4 Grayscale E ink E paper display panel with two FPC interfaces, 1304*984 resolution. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border are supplied with each panel.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW1248T3 is a very good choice for applications like

· Display board in supermarket
· Industrial application
· And other related products.







· 4 Grayscale
· 1304x984 resolution
· Two FPC interface, both have 30 pins
· SPI interface, for connecting with controller boards
· The I2C signal master interface to read built-in temperature sensor.
· Come with helpful development resources and manual (STM32 platform )
· Development platform available STM32 / Raspberry Pi











Part Number

GDEW1248T3

Type

Dot Matrix

Resolution

1304*984

Outline Size(mm)

261.5*211*1.18

Active Size(mm)

252.976*190.896

Pixel Pitch(mm)

0.194*0.194

Operating Temp.

0~50

Storage Temp.

-25~70

Connector

Two FPC ports

Max Grayscale

4

Color

Black,White

Packing volume 6 KG
Current of the refresh(mA) 8
Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.71
Time of refresh(s) 6
Purchase Online

 buyepaper / AliExpress









Part Number

Color

Resolution

Feature

Full refresh time
GDEW1248T3 Black, White 1304x984 Large size,4 Grayscale 6s
GDEW1248Z95 Black,White,Red 1304x984 Three colors,Large size 20s
GDEW1248C63 Black,White,Yellow 1304x984 Three colors,Large size 30s
