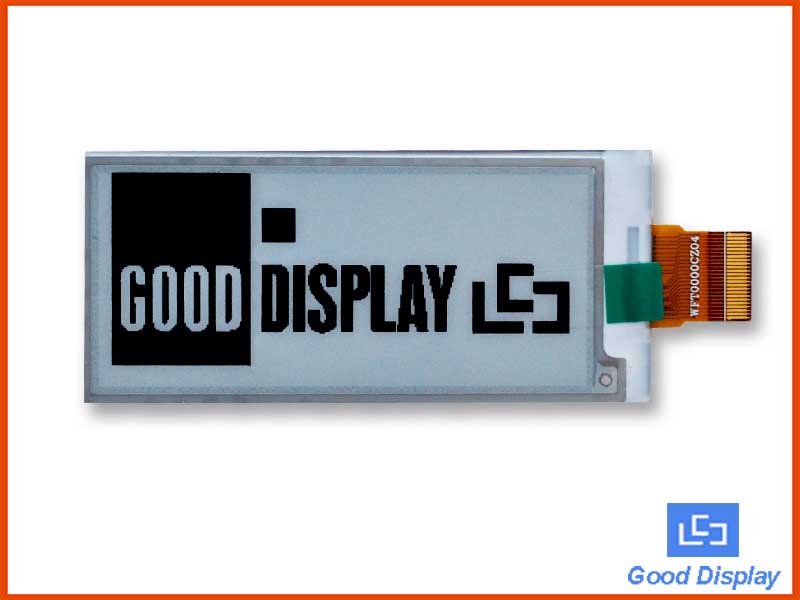

2.9 inch e-paper display GDEH029A1
  • Product Name: 2.9 inch e-paper display GDEH029A1
  • Code: 02901
  • Quantity in stock: Yes
  • Retail price:
  • Unit of measurement: pcs
  • Net weight:
  • Views : 11627



GDEH029A1 is an Active Matrix Electrophoretic Display(AMEPD) , with interface and a referencesystem design.
The 2.9' active area contains 296×128 pixels






296×128 resolution
Partial update
Development platform available STM32 / Arduino / Raspberry Pi / ESP8266








Model

GDEH029A1

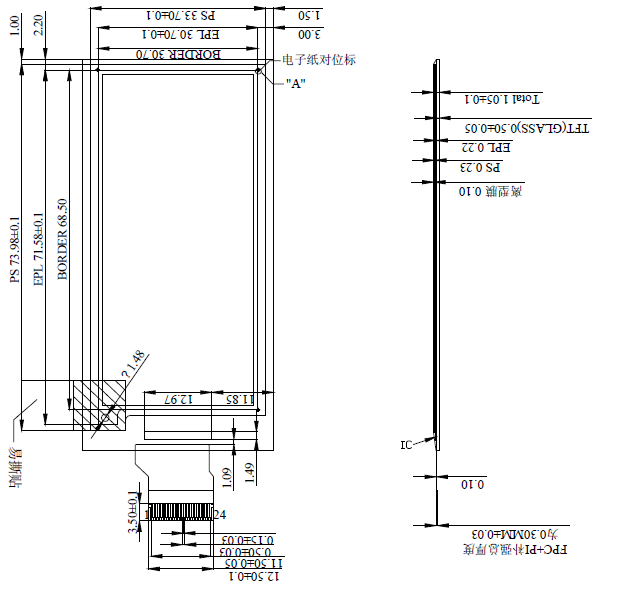

Dimension

79.0 (H)x36.7 (V) x1.05(D)mm

Screen Size

2.9inch

E-Paper Type

E-ink (EPD)

Resolution

296(H)x128(V)

Pixel Pitch

0.227×0.226mm

Active Area

66.9 (H)×29.1 (V)mm

Operation Temperature

0C to 50C

Storage Temperature

-25C to 60C

Weight

7.35±0.5g

Pixel Configuration

Rectangle

Controller IC

IL3820
Time of refresh(s) 3
Time of partial refresh(s) 0.3
Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.0165
