  • Product Name: E-paper display development demo kit with SPI interface and Micro USB interface
  • Code: DESPI-1
  • Quantity in stock: 100
  • Retail price:
  • Unit of measurement: --
  • Net weight: --
  • Views : 4318





This Development Kit designed for SPI E-paper Display aims to help users to begin constructing our e-paper display with provided source code to create more differentiated solutions. And it is added the functions of USB serial port and LED indicator light ect. It also supports being updated by computer directly.

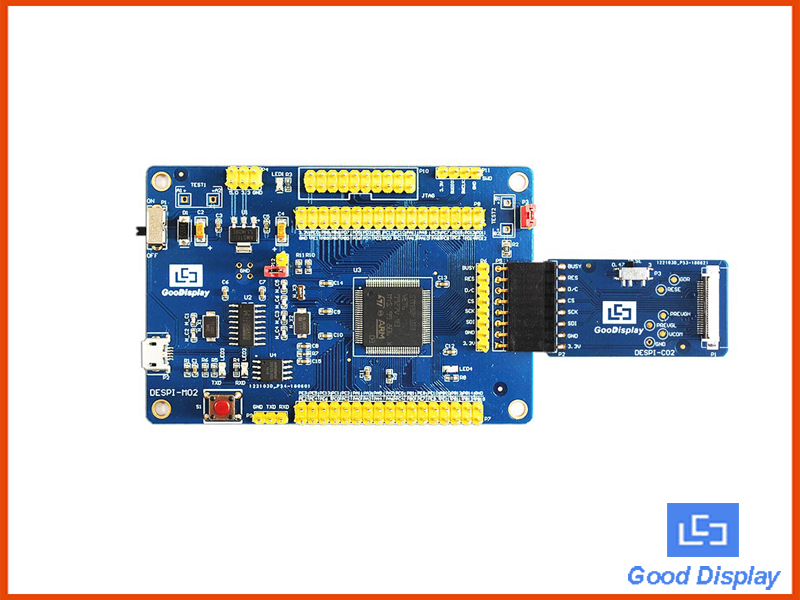

DESPI Develop Kit consists of the development board DESPI-M02 and the pinboard DESPI-C02.
It supports driving Good Display's black-white E-paper Display and three-color (black, white and red/Yellow) E-paper Display.





· For SPI interface EPD, power interface is Micro USB interface.
· USB serial port and LED indicator light.
· Storage capacity increase
. Supports being updated by computer directly.
· Comes with helpful development demo kit with resources and manual (STM32 platform )






Part Number

DESPI

MCU

STM32

Function

Drive E-paper Display

Outside Dimension

90x60mm (DESPI-M02)
41x22mm (DESPI-C02)

Power Interface

USB Interface

Power Input

DC5V

Feature

Fully and Partial refresh

Grey scale Level

Max 16 grey scale

Operating Temp

-20 ~70℃

Recommended Tool Keil4
Example Code Available
Reserved Function
USB to serial port, indicator
light 、keys、current detection and so on.

Purchase Online

buyepaper /AliExpress















RESE To 0.47 Ω:
3.2.6 inch E-Paper Display: GDEW026T0,GDEW026Z39
4.2.7 inch E-Paper Display:  GDEW027W3  GDEW027C44
5.2.9 inch E-Paper Display:  GDEW029T5,GDEW029Z10,GDEW029I6F
6.3.71 inch E-Paper Display: GDEW0371W7,GDEW0371Z80
7.4.2 inch E-Paper Display:  GDEW042T2,GDEW042Z15,GDEW042C37
8.5.83 inch E-Paper Display:  GDEW0583Z21,GDEW0583C64
9.7.5 inch E-Paper Display:  GDEW075Z09,GDEW075C21

RESE To 3 Ω:
1.1.54 inch E-Paper Display:GDEH0154D67,GDEM0154E97LT
2.2.04 inch E-Paper Display: GDE021A1
3.2.13 inch E-Paper Display: GDEH0213D30LT,GDEH0213B73
4.2.9 inch E-Paper Display: GDEH029A1,GDEH029D56LT
5.5.83 inch E-Paper Display: GDEW0583T7
6.7.5 inch E-Paper Display: GDEW075T8




File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-07-12

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-07-12         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB








Q:How to choose RESE?
A:The user can operate according to the instructions of the RESE corresponding to different sizes of electronic paper in the DEMO board instruction manual, only 0.47 and 3 ohms.

Q:Is there a prompt after the program is downloaded?
A:An LED indicator is onboard and will be illuminated when the program is downloaded.

Q:Does the SPI serial port choose three or four wires?
A:The default four-wire SPI, if the user wants to use three wires, you need to connect the BS pin to a high level.

Q:Does it support parallel communication?
A:The onboard CH340G is a USB to parallel chip. Users can directly connect the PC to the DEMO board with a USB cable, and then they can perform their own serial port operation.

Q:Does it support current measurement?
A:The latest boards support users in measuring on-board power consumption and e-paper power consumption.

Q:Does it support SPI interface download?
A:The user can download the SPI interface through the corresponding Boot interface of the onboard short-circuit, and download the software to operate with the FLYMCU. The download mode is similar to that of the C51.

Q:Does it support the development of other products?
A:All of the pins of the MCU have been taken out by our DEMO motherboard. Users can connect to other external devices through this DEMO board to design and develop other products.

Q:Does it support multiple sets of e-paper drive circuits to drive e-paper at the same time?
A:Yes, the DEMO motherboard can drive multiple sets of electronic paper drive boards, which have been reserved.
