Your present location:Home >> 3-Color EPD >> 1.54 inch tri-color e-ink display, three-color E-paper display, GDEW0154C39
  • Product Name: 1.54 inch tri-color e-ink display, three-color E-paper display, GDEW0154C39
  • Code: 015406
  • Quantity in stock: 100
  • Retail price:
  • Unit of measurement: --
  • Net weight: --
  • Views : 976

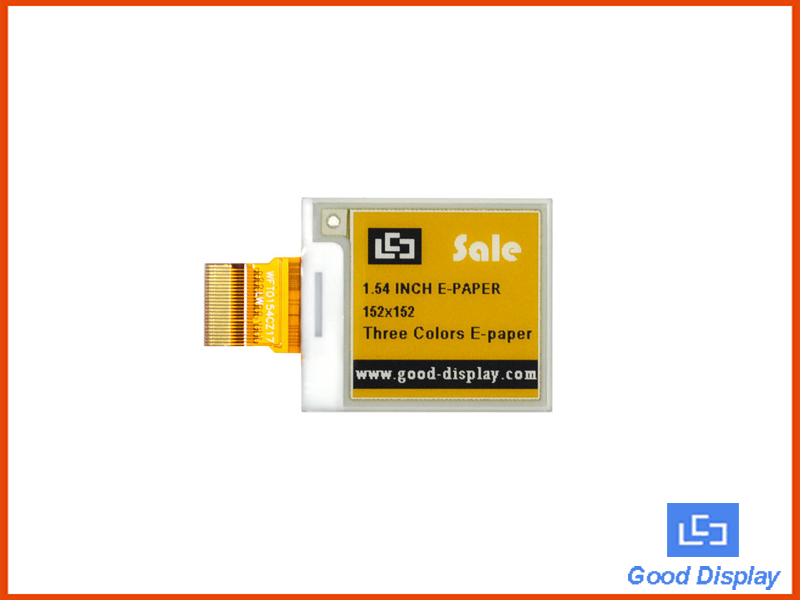

This is an E ink E paper display panel, 1.54 inch, 152*152 resolution, square, 24 pins FPC connection,
optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and
on-chip stored waveform,  supports yellow, black, and white, three-color.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under
sunlight, GDEW0154C39 is a very good choice for applications like:
· Shelf label
· Smart tags
· Wearable devices
· Smart home application
· Industrial instrument
· Smart cards
· And other related products.
Note: All of 3-color epaper doesn't support partial refesh





· Three colors, black, white and yellow
· 152x152 resolution
· The I2C signal master interface to read built-in temperature sensor.
· Come with helpful development resources and manual (STM32 platform )
· Development platform available STM32 / Arduino / Raspberry Pi / ESP8266






Part Number

GDEW0154C39

Type

Dot Matrix

Resolution

152*152

Outline Size(mm)

31.8*37.32*0.98

Active Size(mm)

27.51*27.51

Pixel Pitch(mm)

0.181*0.181

Operating Temp.

0~40℃

Storage Temp.

-25~60℃

Connector 24 Pin FPC, Pitch:0.5mm
Max Grayscale 2

Color

Black,White,Yellow

Current of the refresh(mA) 8
Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.0165
Time of refresh(s) 26

Purchase Online

buyepaper  / Amazon  /AliExpress











Part Number

Color

Full refresh Time

Resolution

Feature

T/P and Front-light(optional)

GDEH0154D67

BW

2S

200x200

Partial refresh,High Resolution

GDEW0154Z04

BWR

8S

200x200

Three colors

GDEW0154Z17

BWR

16S

152x152

Three colors

GDEW0154C39

BWY

26S

152x152

Three colors

GDEW0154I9F

BW

3S

152x152

Flexible

x

GDEM0154E97LT

BW

3S

152x152

Low temperature

GDEW0154T8

BW

3S

152x152

Partial refresh,4 Grayscale

GDEW0154M09 BW 0.82S 200x200 Fast speed,High Resolution





Datasheet-E Paper Display,Controller IC,Connector,Source Code

File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEW0154C39 Specifications

4.0

English

2019-03-12

2.2MB

IC Driver 1.0 English 2017-08-11 825.53KB
Connector Spec. 1.0 English 2017-08-11 1.77MB
Picture Production and Bitmap Convert 1.0 English 2020-02-04 524.95KB

If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry











STM32 Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-07-12

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-07-12         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
GDEW0154C39_STM32 Code               1.0            English      2019-10-22      2.32MB

If you want to buy the set: e-paper and matched demo, please click here: With Drive Board

Arduino Development Board

File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 DEArduino Specification

                   1.0

               English

       2018-11-28

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-11-28         701.28KB
DEArduino UNO for EPD_SCH               1.0             English      2018-11-28       462.58KB
GDEW0154C39_Arduino Code               1.0             English      2019-10-22        14.59KB

Rasberry Pi Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   3.0

               English

       2019-09-12

      673.62KB

DESPI-C03-SCH

                   1.0                English        2019-09-27         701.28KB
DESPI-M02-SCH                    1.0                 English        2018-07-12         1.2MB
GDEW0154C39 Rasberry Pi                1.0              English      2019-10-25        78.93KB

ESP8266



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 ESP8266(C02) Specification

                   1.0

               English

       2020-04-02

      939.11KB

 ESP8266(C03)Specification                  1.0              English       2020-04-02       1.04MB

 ESP8266 for EPD-SCH

                   1.0                English        2020-01-07         72.68KB
 DESPI-C02-SCH                    1.0                English        2018-07-12         72.68KB








File Type

Description (Click to see more)

Language

Update Date
The Principle and Advantage of E-Paper English 2012-10-25
Matrix E-ink Display -- FAQ English 2017-08-16
Matrix E-ink Display -- FAQ Pt. 2 English 2018-11-13
Product list-1 English 2018-09-29
Product list-2 English 2018-09-29
Product list-3 English 2018-09-29
RoHS English 2018-12-27

Warranty

English

2016-10-25

Precautions for E-paper Display

English 2019-03-11
