Your present location:Home >> 2-Color EPD >> 2.13 inch e-paper display module partial refresh e-ink screen GDEH0213B73

Product Name: 2.13 inch e-paper display module partial refresh e-ink screen GDEH0213B73
Code: 02139-1
Quantity in stock: --
Retail price: -
Unit of measurement: --
Net weight: --
Views : 1429

Details

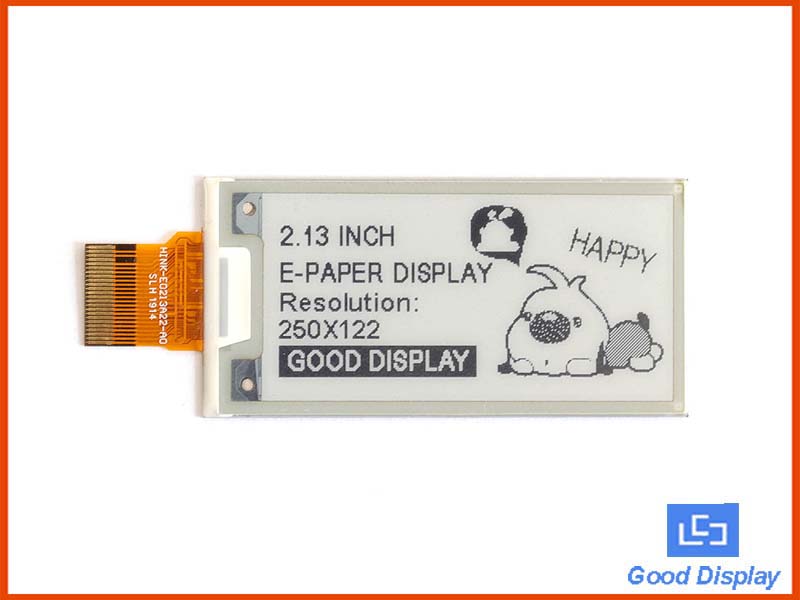

This is a black-white 2.13 inch e-paper display with 250*122 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform, Support partial refresh, fast update and no flicker update.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEH0213B73 is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, smart cards and other related products.

· 250x122 resolution

· Similar with GDEH0213B72(Discontinued), but newst IC driver

· Support partial refresh, fast update and no flicker update.

· The I2C signal master interface to read built-in temperature sensor.

· Come with helpful development resources and manual (STM32 platform )

· Development platform available STM32 / Arduino / Raspberry Pi / ESP8266

Part Number	GDEH0213B73
Type	Dot Matrix
Resolution	250*122
Outline Size(mm)	29.259.21.05
Active Size(mm)	23.7*48.55
Pixel Pitch(mm)	0.1942*0.1943
Operating Temp.	0~50C
Storage Temp.	—25~60C
Connector	24 Pin
Max Grayscale	2
Color	Black,White
Time of refresh(s)	4
Time of partial refresh(s)	0.42
Power consumption of the refresh(mW)	13.5
Standby power consumption Pc(mW)	0.006
Purchase Online	buyepaper / AliExpress

Part Number	Color	Resolution	Feature	Full refresh time
GDEH0213B72	Black, White	250x122	Partial refresh	2s
GDEH0213B73	Black, White	250x122	Partial refresh	4s
GDEW0213I5F	Black,White	212x104	Flexible,Partial refresh,4 Grayscale	3s
GDEH0213D30LT	Black,White	212x104	Low temperature	3s
GDEW0213V7LT	Black,White	212x104	Low temperature	3s
GDEW0213Z16	Black,White,Red	212x104	Three colors	16s
GDEW0213C38	Black,White,Yellow	212x104	Three colors	18s
GDEH0213Z98	Black,White,Red	250x122	Three colors	13s
GDEW0213T5	Black, White	212x104	Partial refresh,4 Grayscale	3s

File Type	Description (Downloadable)	Version	Language	Update Date	Size
	GDEH0213B73 Spec.	1.1	English	2018-11-14	2.2MB
	IC Driver	1.0	English	2019-07-08	1.58MB
	Connector Spec.	1.0	English	2018-07-31	1.77MB
	Picture Production and Bitmap Convert	1.0	English	2020-01-22	471.01KB

STM32 Development Board

File Type	Description (Downloadable)	Version	Language	Update Date	Size
	DESPI Specification	1.0	English	2018-07-12	673.62KB
	DESPI-C02-SCH	1.0	English	2018-07-12	701.28KB
	DESPI-M02-SCH	1.0	English	2018-07-12	1.2MB
	GDEH0213B73 STM32 Code	1.0	English	2019-10-22	2.32MB
	Partial refresh	1.0	English	2019-10-22	2.74MB
	Readme(SPI interface Partial refresh considerations)	1.0	English	2019-11-19	0.84KB

If you want to buy the set: e-paper and matched demo, please click here: With Drive Board / With Connect Board

Arduino Development Board

File Type	Description (Downloadable)	Version	Language	Update Date	Size
	DEArduino Specification	1.0	English	2018-11-28	673.62KB
	DESPI-C02-SCH	1.0	English	2018-11-28	701.28KB
	DEArduino UNO for EPD_SCH	1.0	English	2018-11-28	462.58KB
	GDEH0213B73 Arduino Code	1.0	English	2020-02-14	14.59KB

Rasberry Pi Development Board

File Type	Description (Downloadable)	Version	Language	Update Date	Size
	DESPI Specification	3.0	English	2019-09-12	673.62KB
	DESPI-C03-SCH	1.0	English	2019-09-27	701.28KB
	DESPI-M02-SCH	1.0	English	2018-07-12	1.2MB
	GDEH0213B73 Rasberry Pi Code	1.0	English	2019-10-25	27.08MB

ESP8266

File Type	Description (Downloadable)	Version	Language	Update Date	Size
	ESP8266(C02) Specification	1.0	English	2020-04-02	939.11KB
	ESP8266(C03)Specification	1.0	English	2020-04-02	1.04MB
	ESP8266 for EPD-SCH	1.0	English	2020-01-07	72.68KB
	D ESPI-C02-SCH	1.0	English	2018-07-12	72.68KB

Q:Can I use internal waveforms for this e-paper?

A:At present, this electronic paper has external waveforms and built-in waveforms, and users can choose according to their actual situation. The refresh rate of the external waveform is fast, but the fine-tuning circuit is required. The refresh rate of the built-in waveform is slightly slower, which can meet the basic needs of the user without changing the circuit.

Q:Is this e-paper's modulating mode in the same way as the modulating mode of the GDEH0213B72?

A:The modulating modes of these two e-paper displays are totally different.

File Type	Description (Click to see more)	Language	Update Date
	The Principle and Advantage of E-Paper	English	2012-10-25
	Matrix E-ink Display -- FAQ	English	2017-08-16
	Matrix E-ink Display -- FAQ Pt. 2	English	2018-11-13
	Product list-1	English	2018-09-29
	Product list-2	English	2018-09-29
	Product list-3	English	2018-09-29
	RoHS	English	2018-12-27

	Warranty	English	2016-10-25
	Precautions	English	2019-03-11
