Your present location:Home >> 3-Color EPD >> 2.13 inch black,white and red e-paper display, three colors, e-ink, GDEH0213Z98
  • Product Name: 2.13 inch black,white and red e-paper display, three colors, e-ink, GDEH0213Z98
  • Code: 02132-1
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 218

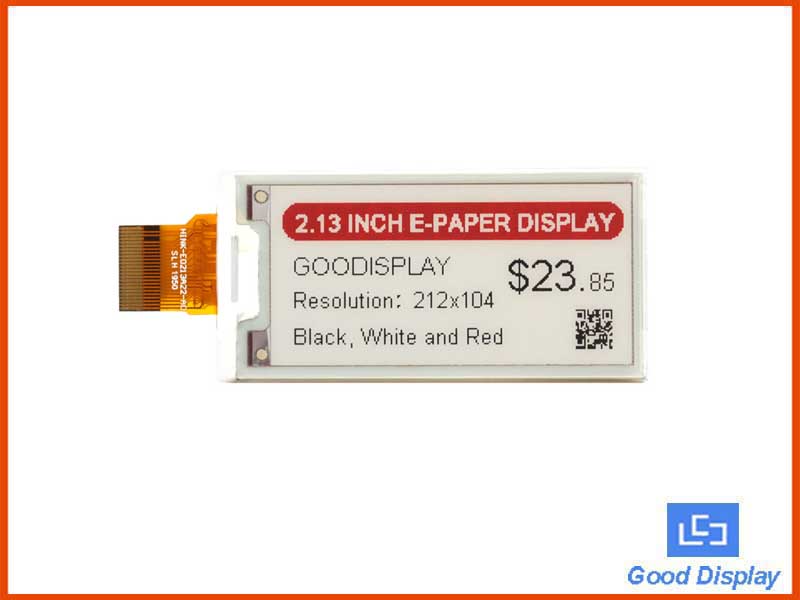

This is an E ink E paper display panel, 2.13 inch, 122*250 resolution, square, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform,  supports black, white, and red three-color.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEH0213Z98 is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument and other related products.
Note: All of 3-color epaper doesn't support partial refesh.





· Three colors, black, white and red.

· 122x250 resolution.

· SPI interface, 24 pin connectors

· The I2C signal master interface to read built-in temperature sensor.

· Development platform available STM32 / Arduino / Raspberry Pi / ESP8266

· Come with helpful development resources and manual (STM32 platform )







Model

GDEH0213Z98

Type

Dot Matrix

Resolution

250x122

Outline Size(mm)

29.2x59.2x0.9

Active Size(mm)

23.7x48.55

Pixel Pitch(mm)

0.194x0.194

Operating Temp.

0℃~40℃

Storage Temp.

-25℃~60℃

Connector

24 Pin

Max Grayscale 2
Color Black,White,Red
Power consumption of the refresh(mW) 9.9
Standby power consumption Pc(mW) 0.0099
Time of refresh(s) 13
Purchase Online buyepaper / Amazon







Part Number

Color

Resolution

Feature

Full refresh time

GDEH0213B72 Black, White 250x122 Partial refresh 2s
GDEH0213B73 Black, White

  250x122

Partial refresh 4s
GDEW0213I5F Black,White 212x104 Flexible,Partial refresh,4 Grayscale 3s
GDEH0213D30LT Black,White 212x104 Low temperature 3s
GDEW0213V7LT Black,White 212x104 Low temperature 3s
GDEW0213Z16 Black,White,Red 212x104 Three colors 16s
GDEW0213C38 Black,White,Yellow 212x104 Three colors 18s
GDEH0213Z98 Black,White,Red 250x122 Three colors 13s
GDEW0213T5 Black, White 212x104 Partial refresh,4 Grayscale 3s










File Type

Description (Downloadable)

Version

Language

Update Date

Size

Specification

1.0

English

2020-01-16

1.15MB

 IC Driver 1.0 English 2020-01-16 854.23KB
Connector Spec. 1.0 English 2017-08-11 1.77MB

If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry
