Your present location:Home >> 3-Color EPD >> 4.2 inch color e-paper display three color electronic paper GDEW042Z15

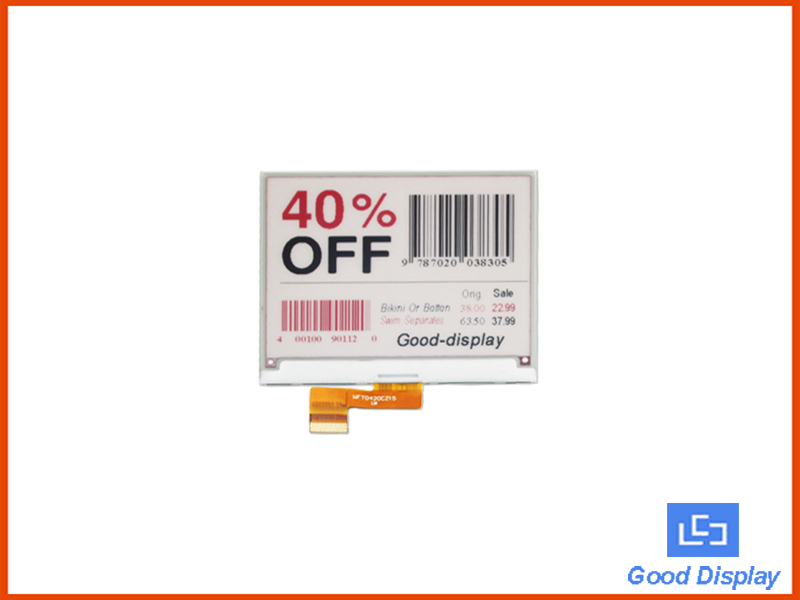

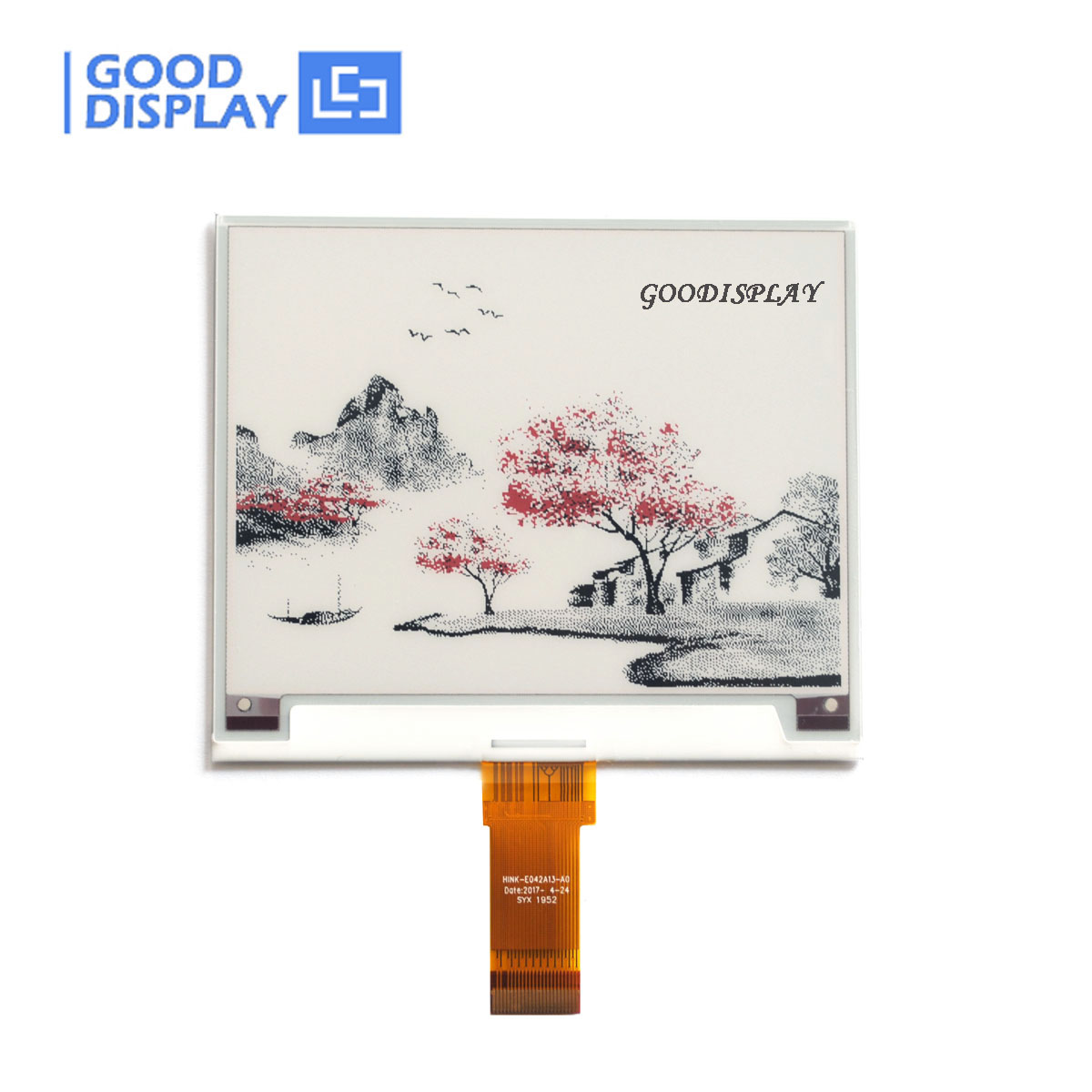

  • Product Name: 4.2 inch color e-paper display three color electronic paper GDEW042Z15
  • Code: 04202
  • Quantity in stock: Yes
  • Retail price:
  • Unit of measurement: pcs
  • Net weight:
  • Views : 4476

Now we have another type of 4.2 inch red e-paper, click the picture to know more:

4.2 inch three colors e-paper display red electronic paper screen module GDEH042Z96






The display is a TFT active matrix electrophoretic display, with interface and a reference system design.
The 4.2” active area contains 400×300 pixels, and has 1-bit white/black and 1-bit red full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border are supplied with each panel.
Note: All of 3-color epaper doesn't support partial refesh.







· Three colors, black, white and red
· 400x300 resolution
· The I2C signal master interface to read built-in temperature sensor.
· Comes with helpful development resources and manual (STM32 platform )
· Development platform available STM32 / Arduino / Raspberry Pi / ESP8266







Model

GDEW042Z15

Type Dot Matrix

Resolution

400x300(DPI:120)

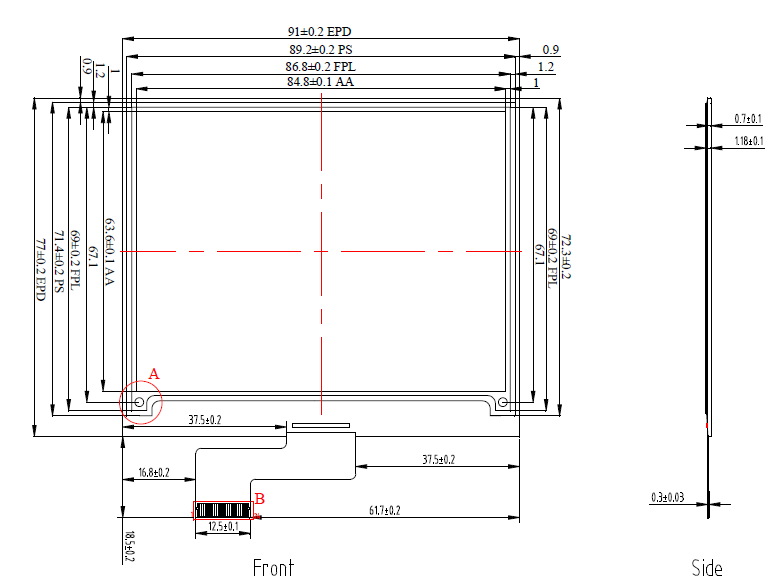

Outline Size(mm)

91x77x1.18

Active Size(mm)

84.8x63.6

Pixel Pitch(mm)

0.212x0.212

Operating Temp.

0℃~40℃

Storage Temp.

-25℃~60℃

Connector 24 Pin FPC, Pitch:0.5mm
Color Black,White,Red
Current of the refresh(mA) 8
Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.0165
Time of refresh(s) 15
Purchase Online

buyepaper /Amazon







Part Number

Color

Feature

Full refresh time
GDEW042T2 Black, White 4 Grayscale 3s
GDEW042Z15 Black,White,Red Three colors 15s
GDEW042C37 Black,White,Yellow Three colors 28s
GDEH042Z96 Black,White,Red Three colors 16s






File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEW042Z15 Spec.

3.0

English

2019-08-01

2.2MB

IC Driver 1.0 English 2018-07-31 825.53KB
Connector Spec. 1.0 English 2018-07-31 1.77MB
Picture Production and Bitmap Convert 1.0 English 2020-02-04 575.59KB

If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry







STM32 Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-07-12

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-07-12         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
GDEW042Z15 STM32 Code               1.0            English      2019-10-22      2.32MB

If you want to buy the set: e-paper and matched demo, please click here: With Drive Board / With Connect Board

Arduino Development Board

File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 DEArduino Specification

                   1.0

               English

       2018-11-28

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-11-28         701.28KB
DEArduino UNO for EPD_SCH               1.0             English      2018-11-28       462.58KB
GDEW042Z15 Arduino Code               1.0             English      2020-02-14        14.59KB

Rasberry Pi Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   3.0

               English

       2019-09-12

      673.62KB

DESPI-C03-SCH

                   1.0                English        2019-09-27         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
GDEW042Z15 raspberry                1.0             English      2019-10-25       27.08MB

ESP8266



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 ESP8266(C02) Specification

                   1.0

               English

       2020-04-02

      939.11KB

 ESP8266(C03)Specification                  1.0              English       2020-04-02       1.04MB

 ESP8266 for EPD-SCH

                   1.0                English        2020-01-07         72.68KB
 DESPI-C02-SCH                    1.0                English        2018-07-12         72.68KB









File Type

Description (Click to see more)

Language

Update Date
The Principle and Advantage of E-Paper English 2012-10-25
Matrix E-ink Display -- FAQ English 2017-08-16
Matrix E-ink Display -- FAQ Pt. 2 English 2018-11-13
Product list-1 English 2018-09-29
Product list-2 English 2018-09-29
Product list-3 English 2018-09-29
RoHS English 2018-12-27

Warranty

English

2016-10-25

Precautions for E-paper Display

English 2019-03-11













If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry
