Your present location:Home >> 3-Color EPD >> 4.2 inch three colors e-paper display red electronic paper screen module GDEH042Z96

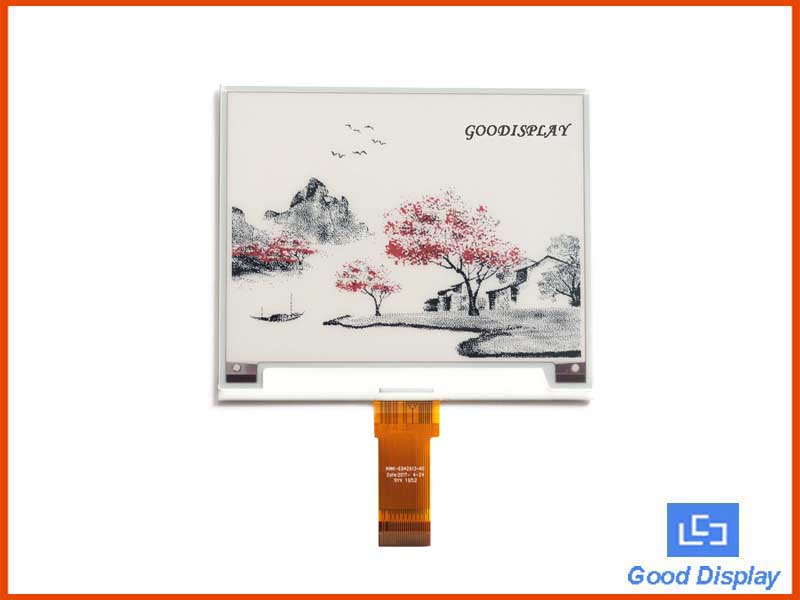

  • Product Name: 4.2 inch three colors e-paper display red electronic paper screen module GDEH042Z96
  • Code: 04202-1
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 64


This is a color 4.2 inch e-paper display with 400x300 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform,  supports black, white and red.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEH042Z96 is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, smart cards and other related products.

Note: All of 3-color epaper doesn't support partial refesh.





· Three colors, black, white and red
· 400x300 resolution
· The I2C signal master interface to read built-in temperature sensor.
· Comes with helpful development resources and manual (STM32 platform )
· Development platform available STM32 / Arduino / Raspberry Pi / ESP8266







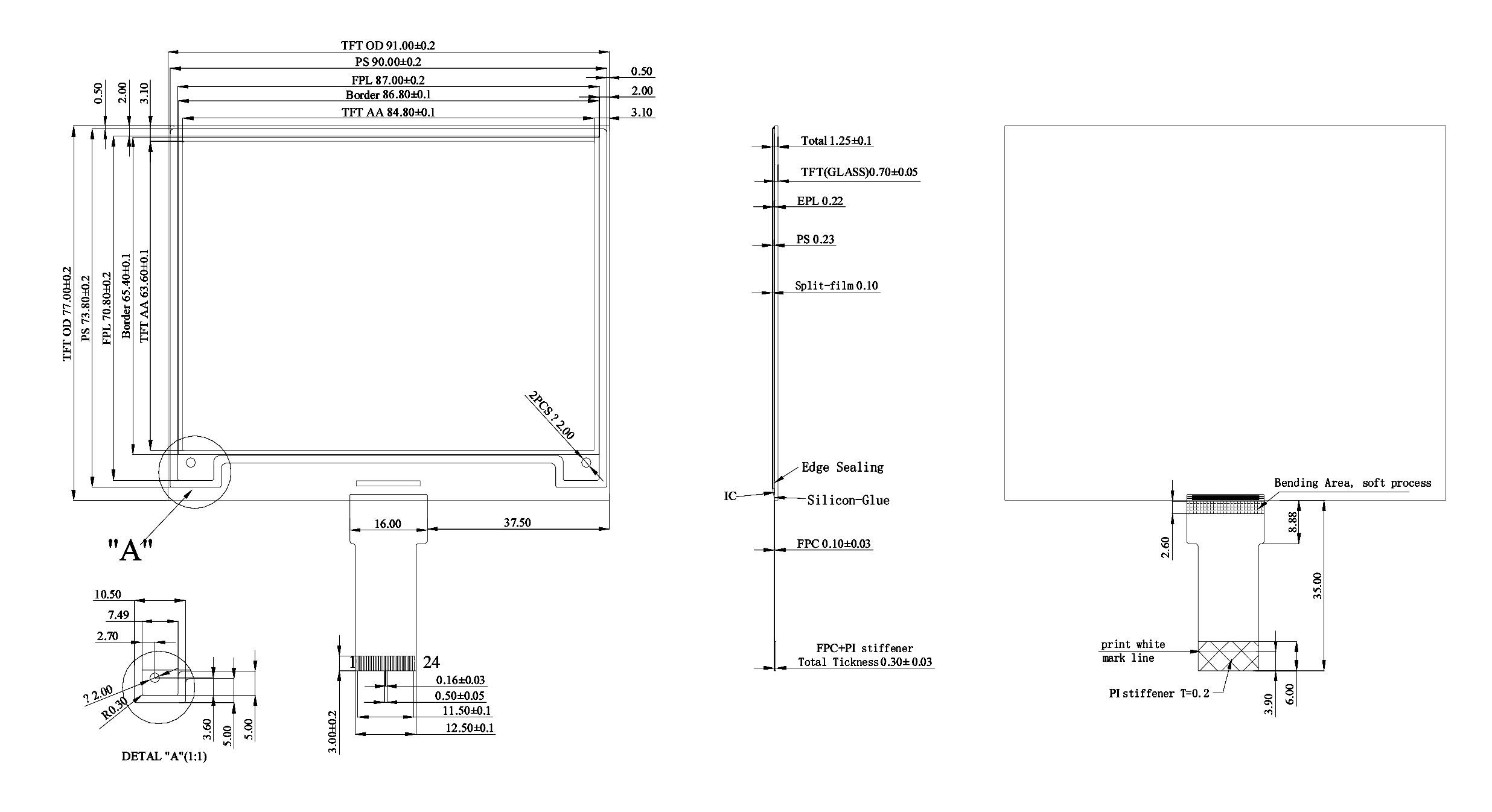

Model

GDEH042Z96

Type Dot Matrix

Resolution

400x300

Outline Size(mm)

91x77x1.25

Active Size(mm)

84.8x63.6

Pixel Pitch(mm)

0.212x0.212

Operating Temp.

0℃~40℃

Storage Temp.

0℃~40℃

Connector 24 Pin FPC, Pitch:0.5mm
Color Black,White,Red
Interface SPI
Time of refresh(s) 16
Standby power consumption Pc(mW) 26.4
Power consumption of the refresh(mW) 0.0165
Power Supply(V) 3.3
Purchase Online

buyepaper









Part Number

Color

Feature

Full refresh time
GDEW042T2 Black, White 4 Grayscale 3s
GDEW042Z15 Black,White,Red Three colors 15s
GDEW042C37 Black,White,Yellow Three colors 28s
GDEH042Z96 Black,White,Red Three colors 16s






File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEH042Z96 Spec.

1.0

English

2020-04-02

2.2MB

IC Driver 1.0 English 2020-04-02 535KB
Connector Spec. 1.0 English 2018-07-31 1.77MB

If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry
