Your present location:Home >> 3-Color EPD >> 7.5 inch colorful red e-paper display 880x528 resolution large e-ink screen module GDEH075Z90

Product Name: 7.5 inch colorful red e-paper display 880x528 resolution large e-ink screen module GDEH075Z90
Code: 07502-2
Quantity in stock: --
Retail price: --
Unit of measurement: --
Net weight: --
Views : 91

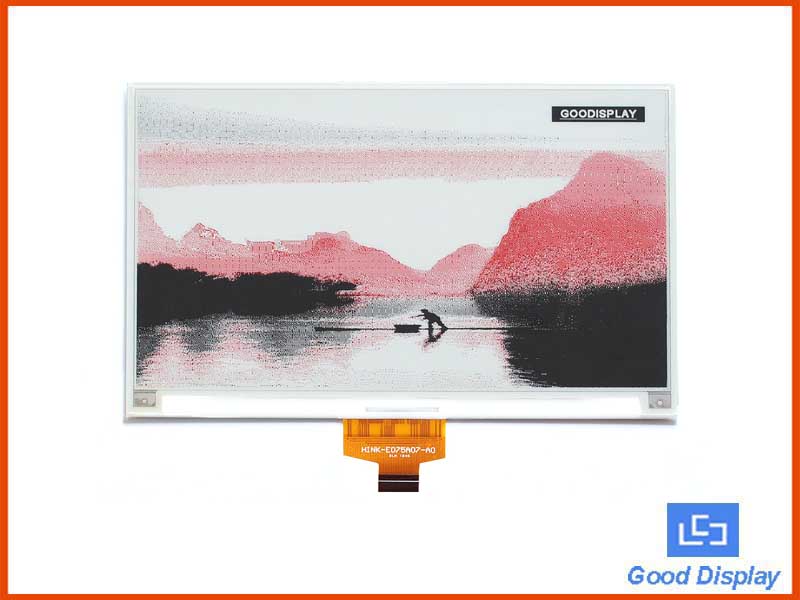

This is a color 7.5 inch e-paper display with 880x528 resolution, 24 pins FPC connection, optional FPC connector,

communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform, supports

black, white and red.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight,

GDEH075Z90 is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument,

smart cards and other related products.

Note: All of 3-color epaper doesn't support partial refesh.

· High resolution 800x528

· Three colors, black, white and red

· The I2C signal master interface to read built-in temperature sensor.

· Come with helpful development resources and manual (STM32 platform )

· Development platform available STM32 / Arduino / Raspberry Pi / ESP8266

Part Number	GDEH075Z90
Type	Dot Matrix
Resolution	880x528

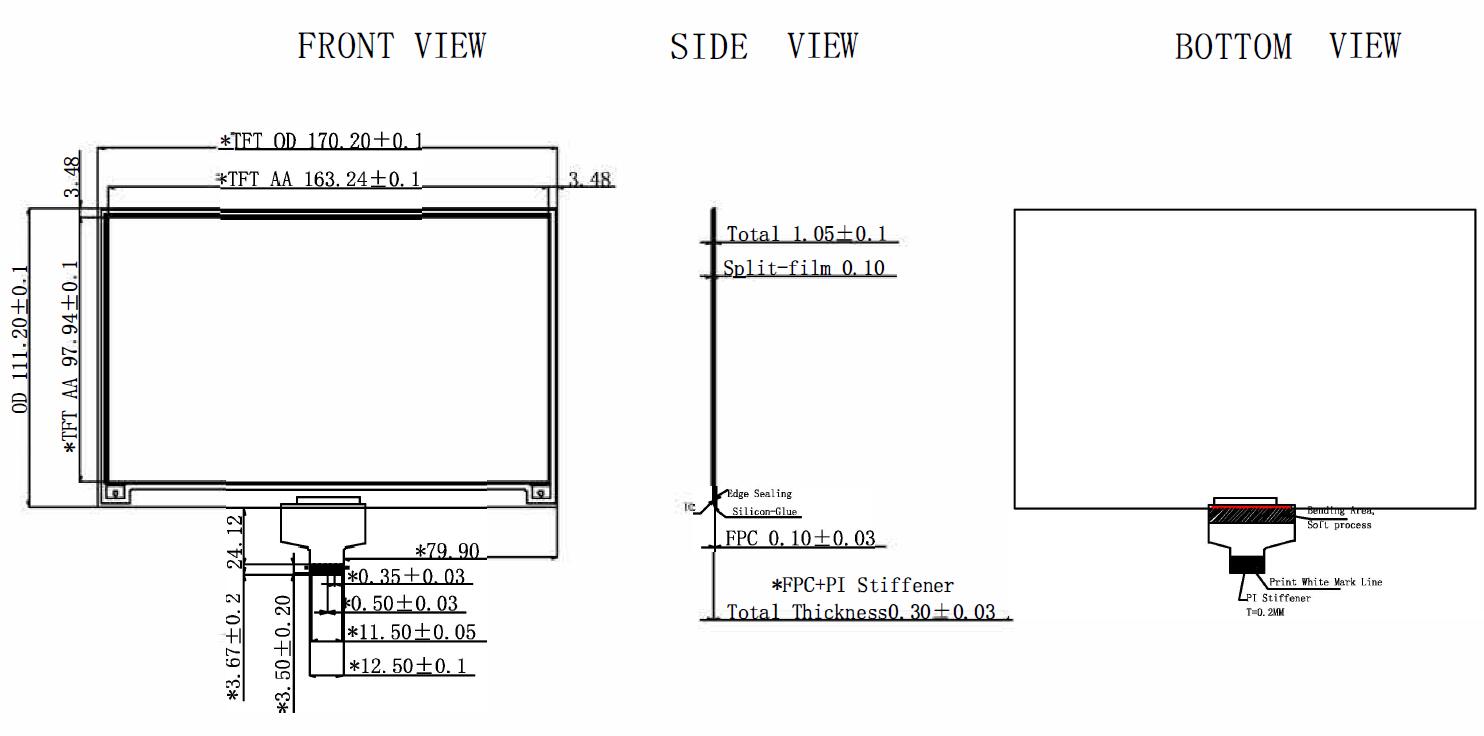

Outline Size(mm)	170.2x111.2x1.25
Active Size(mm)	163.24x97.94
Pixel Pitch(mm)	0.1855x0.1855
Operating Temp.	0℃~40℃
Storage Temp.	0℃~40℃
Connector	24 Pin FPC, Pitch:0.5mm
Color	Black,White,Red
Interface	SPI
Power consumption of the refresh(mW)	40
Standby power consumption Pc(mW)	0.006
Time of refresh(s)	22
Power Supply(V)	3.3
Purchase Online	buyepaper

Part Number	Color	Resolution	Feature	Full refresh time
GEDW075T8	Black, White	640x384	SPI interface	4s
GDEW075Z09	Black,White,Red	640x384	Three colors,SPI interface	16s
GDEW075C21	Black,White,Yellow	640x384	Three colors,SPI interface	18s
GEDW075T7	Black, White	800x480	Higher resolution	4s
GDEW075Z08	Black,White,Red	800x480	Higher resolution,Three colors	15s
GDEW075C64	Black,White,Yellow	800x480	Higher resolution,Three colors	38s
GDEH075Z90	Black,White,Red	880x528	Highest resolution,Three colors	22s
