Customizable animated electronic paper display E-paper pop
  • Product Name: Customizable animated electronic paper display E-paper pop
  • Code: 532
  • Quantity in stock:
  • Retail price:
  • Unit of measurement:
  • Net weight:
  • Views : 945

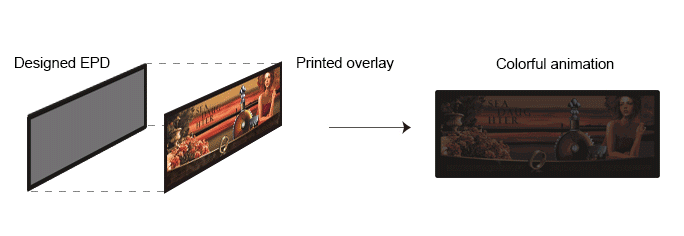

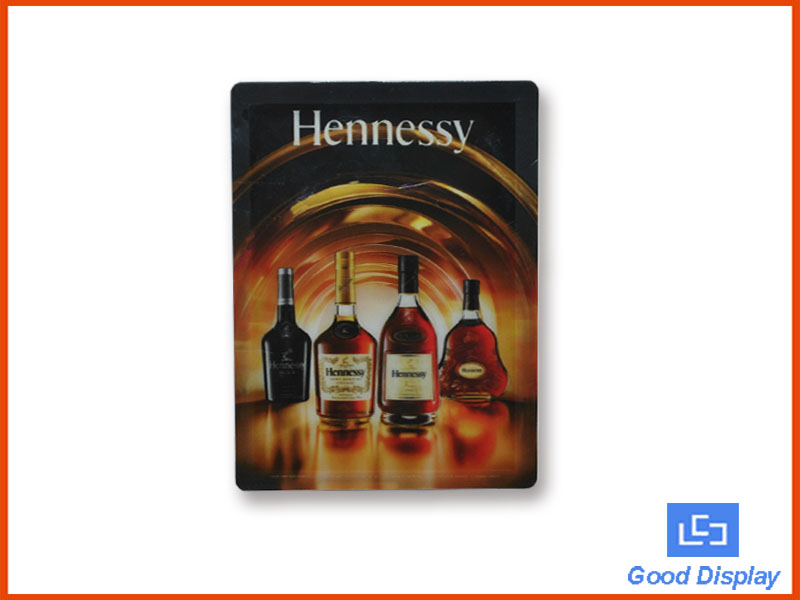

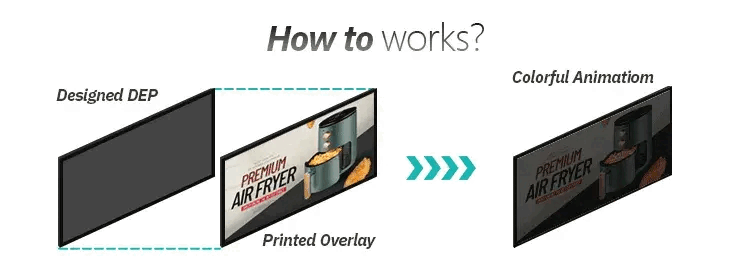

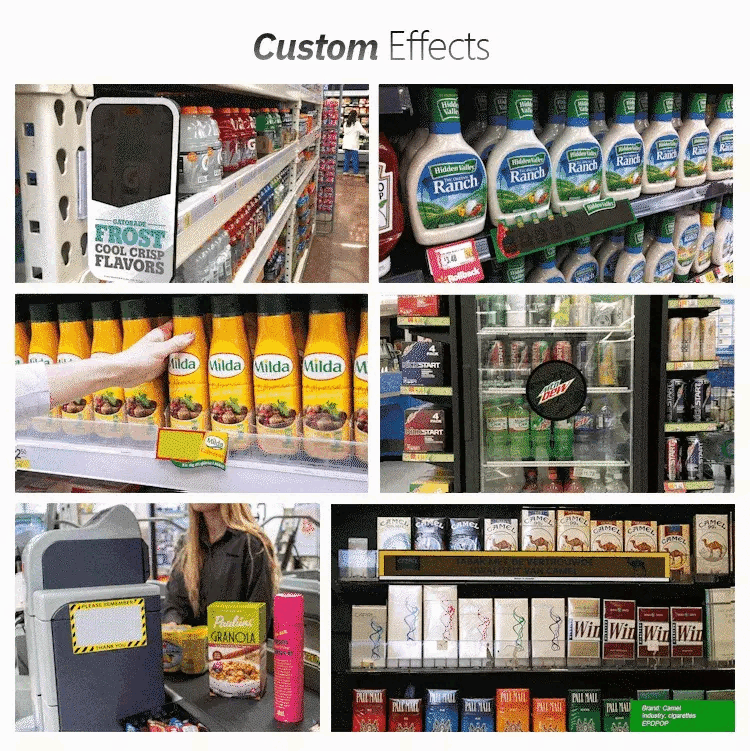

E-Paper only illustrates animation effects within one static image that was printed translucently onto the overlay. All the effects come out as segmented in the backplane. It is diversely applicable to various kinds of medium such as standard POP display, desktop standing display, magazine cover, badge, shelf talker, accessory and etcetera.

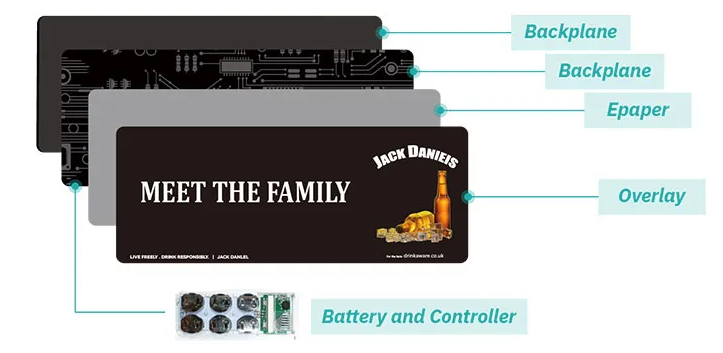

- Display screen
  (Overlay, E-Paper, backplane)
- Controller with batteries
- Connector

Extra option:
- Frame
- Extension cable for longer connector
- Variable forms

Display types:
- Animated-IIM
- Hybrid-IIM
- Flashing-IIM
- Cover-IIM

Battery types:
- Coin battery: CR2450*4
- Solar cell

Maximum IIM size:
- 600 x 400 mm
(max size of E-Paper)

MOQ:
- Upon request

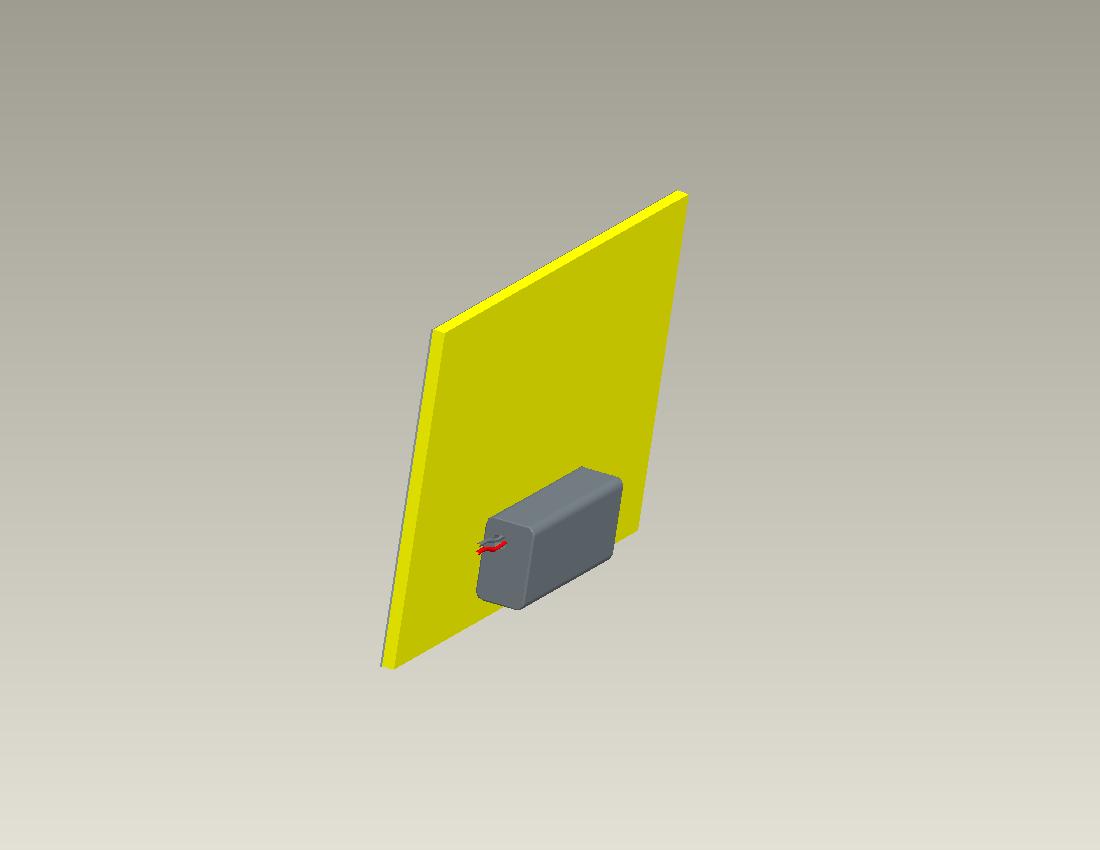

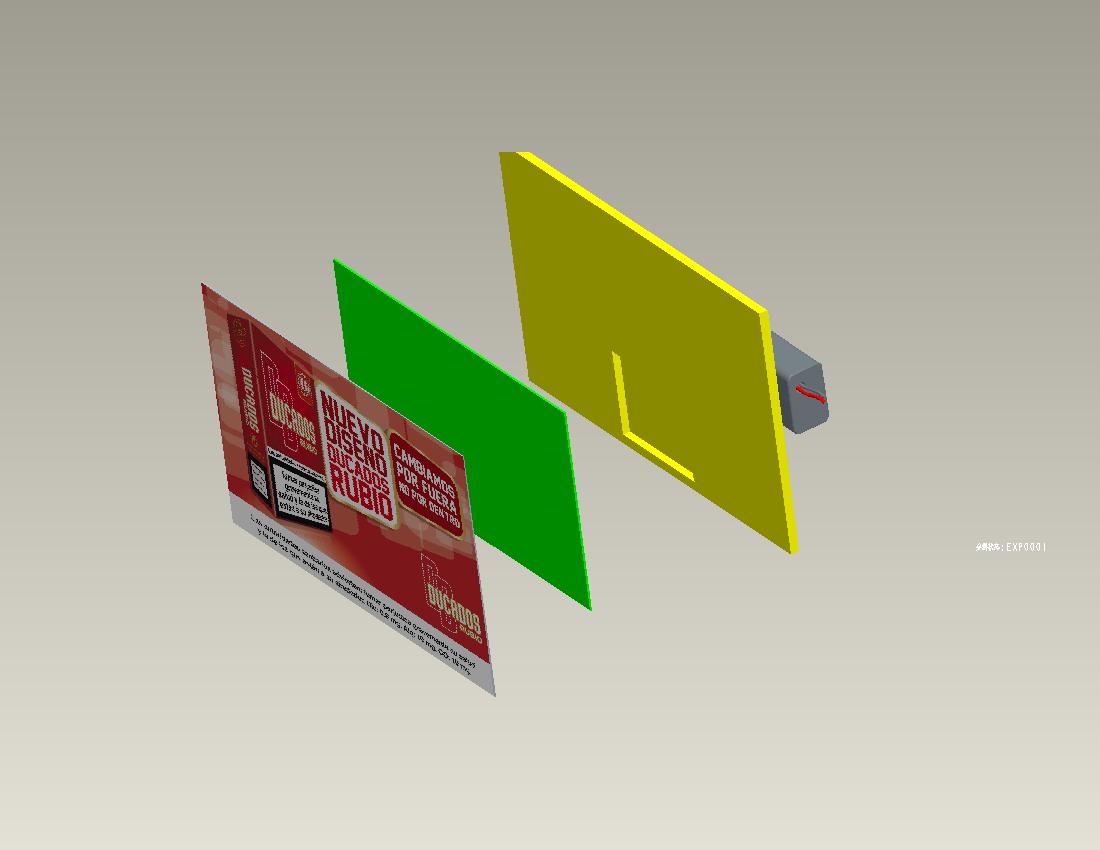

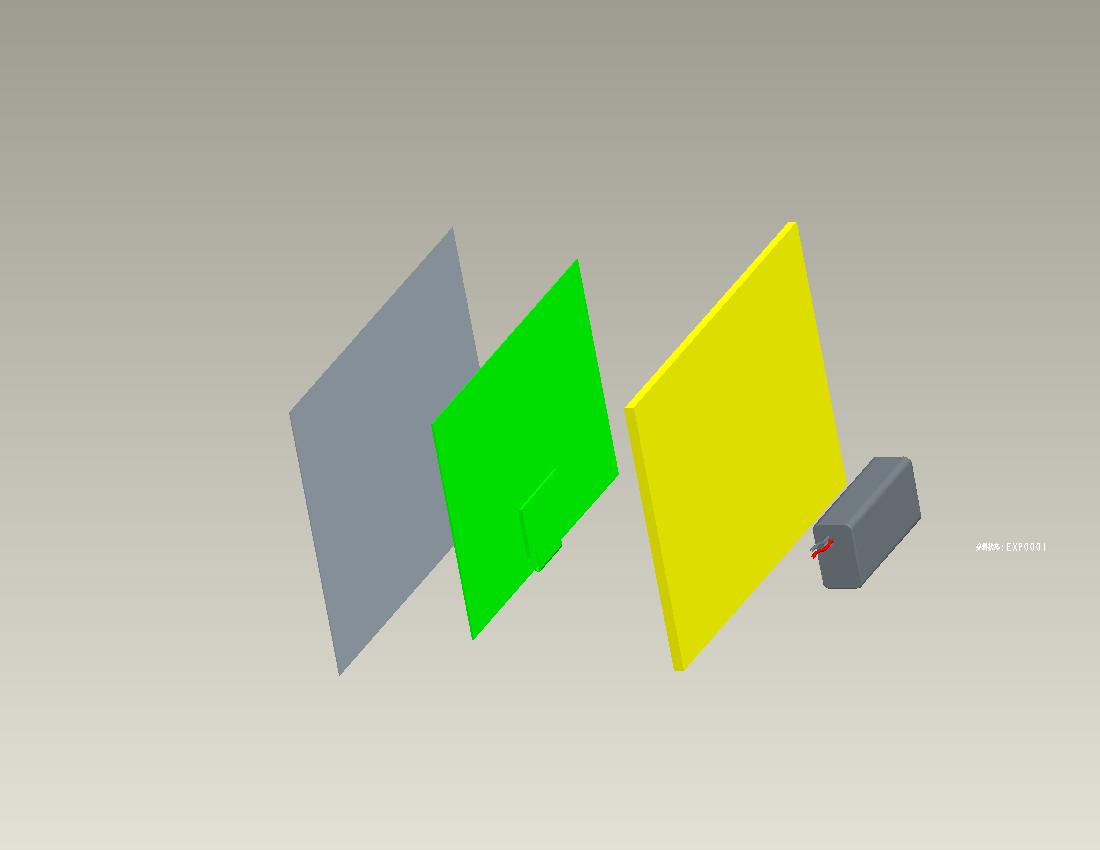

Product Structure Overlay+E-Paper+Backplane+Controller with batteries
Viewing angle 180°
Thickness of backplane 3mm
Image Update Time 240~400mS
Control section thickness 9mm
Drive Voltage +/- 15V
Thickness of finished product The thickest part is 11mm and the thinnest part is 2mm
Operating temperature -10°C to 60°C
Storage temperature -25°C to 75°C
