  • Product Name: E-paper demo kit drive board with multifunction connection adapter board DESPI-V3.0
  • Code: DESPI-2
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 179

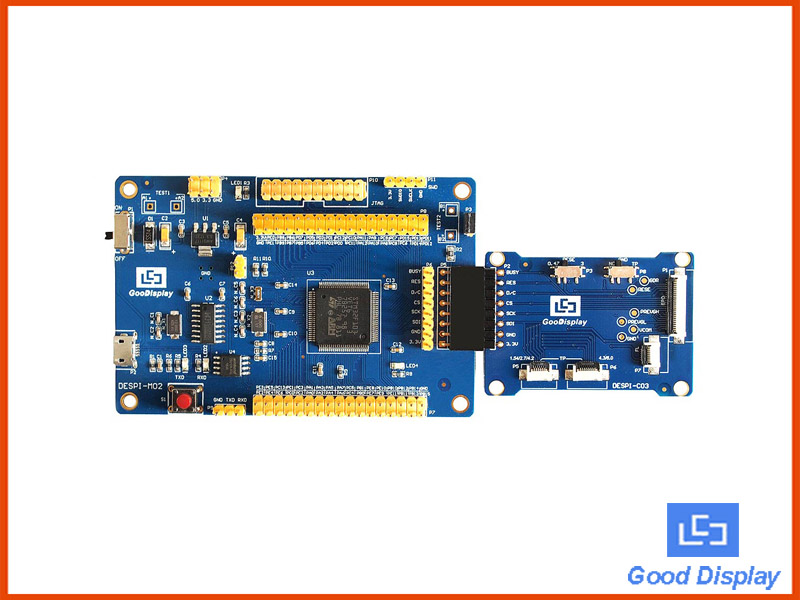

This Development Kit designed for SPI E-paper Display aims to help users to begin constructing our e-paper display with provided source code to create more differentiated solutions. It supports driving Good Display's black-white E-paper Display and three-color (black, white and red/Yellow) Good Display ‘s E-paper Display: 1.54'', 2.04'', 2.13'', 2.6'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83'' and 7.5''.

And it is added the functions of USB serial port and LED indicator light ect. It also supports being updated by computer directly.And the connector board DESPI-C03 adds driving function for touch panel and frontlight.







· For SPI interface EPD, power interface is MicroUSB interface.

· USB serial port and LED indicator light.
· it is added the functions of USB serial port and LED indicator light ect.
. Supports being updated by computer directly.
· Come with helpful development demo kit with resources and manual (STM32 platform )
· The connector board DESPI-C03 adds driving function for touch panel and frontlight.






Part Number

DESPI-V3.0

MCU

STM32

Function

Drive E-paper Display

Outside Dimension

90mmx60mm (DESPI-M02)
52mmx36mm (DESPI-C03)

Power Interface

USB Interface

Main Function

EPD driving, touch panel driving and frontlight driving.

Sample Code

Available (please contact sales)

Operating Temp

-20~70℃

Additional Function  USB to serial port, indicator light, keys, current detection and so on.

Purchase Online

buyepaper /AliExpress









RESE To 0.47 Ω:
2.2.13 inch E-Paper Display:  GDEW0213T5,GDEW0213Z16,GDEW0213I5F,GDEW0213C38,GDEW0213V7LT
3.2.6 inch E-Paper Display: GDEW026T0,GDEW026Z39
4.2.7 inch E-Paper Display:  GDEW027W3  GDEW027C44
5.2.9 inch E-Paper Display:  GDEW029T5,GDEW029Z10,GDEW029I6F,GDEW029C32
6.3.71 inch E-Paper Display: GDEW0371W7,GDEW0371Z80
7.4.2 inch E-Paper Display:  GDEW042T2,GDEW042Z15,GDEW042C37
8.5.83 inch E-Paper Display:  GDEW0583Z21,GDEW0583C64,GDEW0583Z83
9.7.5 inch E-Paper Display:  GDEW075Z09,GDEW075C21,GDEW075C64,GDEW075Z08

RESE To 3 Ω:
1.1.54 inch E-Paper Display:GDEH0154D67,GDEM0154E97LT
2.2.04 inch E-Paper Display: GDE021A1
3.2.13 inch E-Paper Display: GDEH0213D30LT,GDEH0213B73
4.2.9 inch E-Paper Display: GDEH029A1,GDEH029D56LT
5.5.83 inch E-Paper Display: GDEW0583T7
6.7.5 inch E-Paper Display: GDEW075T8

This DEMO KIT does not provide electronic paper screen, the screen must be purchased separately






File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI V3.0 Specification

                   1.0

               English

       2020-04-02

      673.62KB

Raspberry Pi User Manual                  1.0               English       2020-04-02       1.27MB

DESPI-C03-SCH

                   1.0                English        2019-09-27         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
