Your present location:Home >> T/P Front-light >> New 1.54 inch tri-color e-paper display, with frontlight, GDEW0154Z04-FL
  • Product Name: New 1.54 inch tri-color e-paper display, with frontlight, GDEW0154Z04-FL
  • Code: 01502-2
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 68

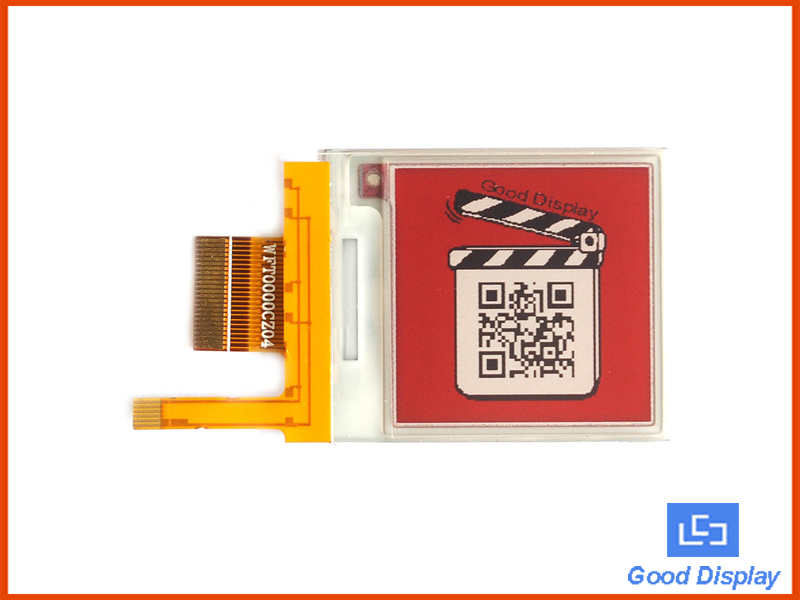

This is a 1.54 inch color e-paper display with frontlight, 200x200 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform, supports black, white and red.



In view of so many advantages: ultra low power consumption, near 180 degree view angle, GDW0154Z04-FL is a very good choice for applications like shelf label, smart tags, wearable devices, smart home application, industrial instrument, smart cards and other related products, and it can be used in dark surrounding.

Note: All of 3-color epaper doesn't support partial refesh







With frontlight
Three colors, black, white and red

200x200 resolution
Come with helpful development resources and manual (STM32 platform )

Development platform available STM32 / Arduino / Raspberry Pi / ESP8266











Part Number

GDEW0154Z04-FL

Type

Dot Matrix

Resolution

200*200

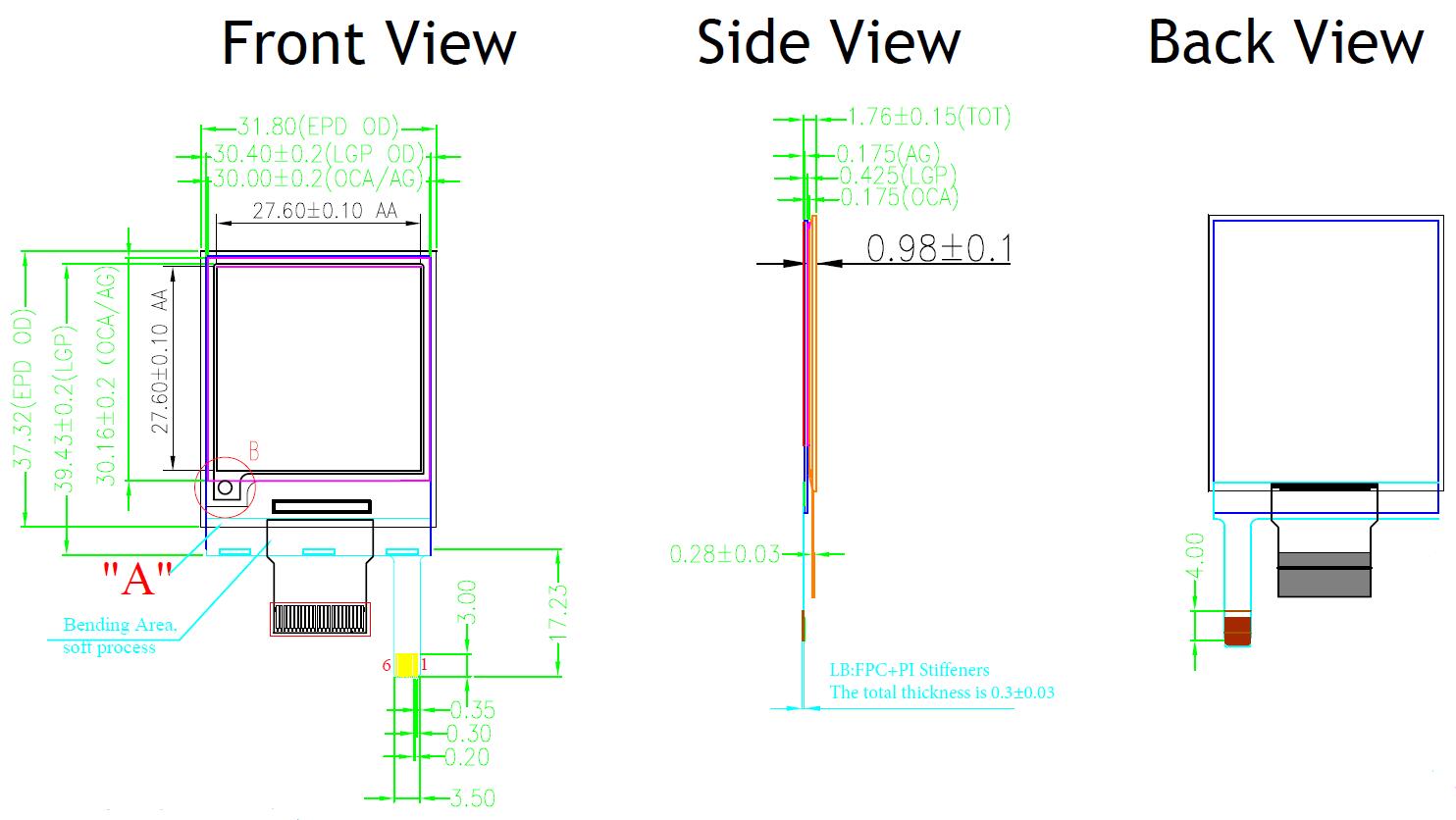

Outline Size(mm)

31.8x37.3x1.8

Active Size(mm)

27.6x27.6

Operating Temp.

0℃~40℃

Storage Temp.

-25℃~60℃

Connector

24 Pin FPC, Pitch:0.5mm

Max Grayscale

2

Color

Black,White,Red

Current of the refresh(mA) 8
Interface SPI
Driving voltage 2.8V-3V
Time of refresh(s) 8
Supply voltage of LED frontlight(TYP.) 3V
Power consumption of the e-paper only(mW) 26.4
