  • Product Name: 9.7 inch Display resolution 1200x825 big size parallel e-paper display panel
  • Code: 07504
  • Quantity in stock: Yes
  • Retail price:
  • Unit of measurement: pcs
  • Net weight:
  • Views : 1668

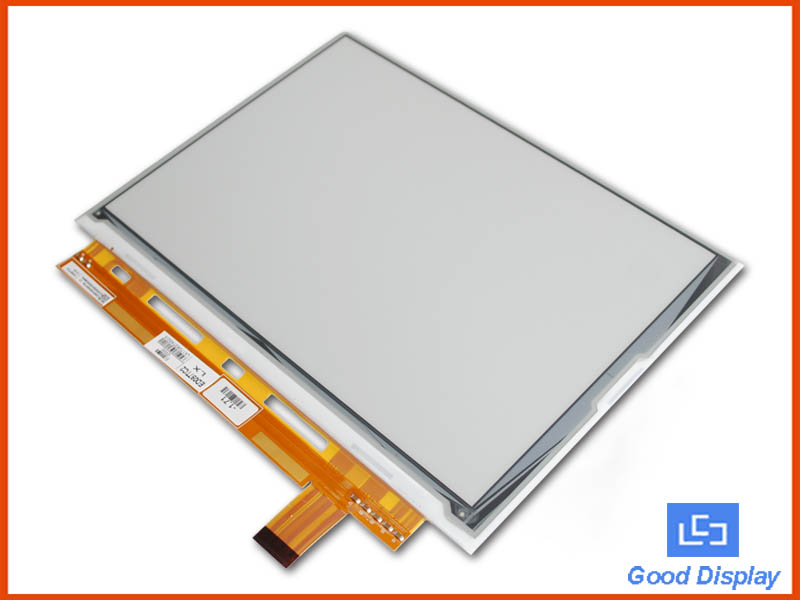

GDEP097TC2 is a reflective electrophoretic E Ink technology display module based on active matrix TFT substrate. It has 9.7” active area with 1200 x 825 pixels, the display is capable of displaying images at 2-16 gray levels (1-4 bits) depending on the display controller and the associated waveform file it used.






· Partial refresh

· Parallel interface
· 16 Grayscale
· 1200x825 resolution
· Come with helpful development resources and manual (STM32 platform )





Model

GDEP097TC2

Size

9.7 inch

Active Area 202.8 (H)×139.425 (V)

Display Resolution

1200x825

Pixel Pitch

0.169 (H)x0.169 (V)

Outline Dimension

218.8(W)×156.425(H)×1.15(D)

Weight

80 ± 8

Number of Grey

16 Grey Level (monochrome)

Operating Temp. 0 to +50
Storage Temp. -25 to +70
Power consumption of the refresh(mW) 3980
Standby power consumption Pc(mW) 0.6
Time of refresh(s) 1
Time of partial refresh(s) 1











Format

Documents Name (Downloadable)

Version

Language

Update Date

Size

GDEP097TC2 Product Specification

1.0

English

07-14-2017

538.23KB









File Type

Description (Click to see more)

Language

Update Date
The Principle and Advantage of E-Paper English 2012-10-25
Matrix E-ink Display -- FAQ English 2018-11-13
Matrix E-ink Display -- FAQ Pt. 2 English 2018-11-13
Warranty English 2016-10-25
