  • Product Name: 1.54 inch e-paper display ultra low temperature E ink panel SPI interface GDEM0154E97LT
  • Code: 015403
  • Quantity in stock: pcs
  • Retail price:
  • Unit of measurement: 100
  • Net weight:
  • Views : 1744

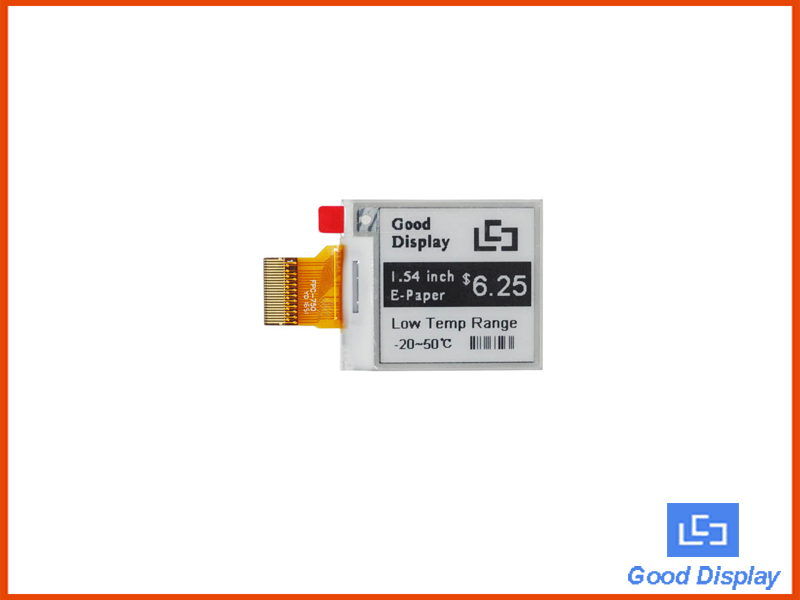

This is an ultra low temperature E ink E paper display panel, 1.54 inch, 152x152 resolution,2 grey level,
pure reflective mode,square, 24 pins FPC connection, optional FPC connector, communicating via SPI interface,
with embedded controller(COG package) and on-chip stored waveform, wide operating temperature range: -20℃ to 55℃,
supports black and white two-color.



In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight,

especially for wide operating temperature range,GDEM0154E97LT is a very good choice for applications like:



· Shelf label

· Smart tags

· Wearable devices

· Smart home application

· Industrial instrument

· Smart cards

· And other related products that in cold area









· Ultra wide operating temperature range: -20℃ to 55℃
· Support partial refresh
· 152x152 resolution
· Come with helpful development resources and manual (STM32 platform )
· Development platform available STM32 / Arduino / Raspberry Pi / ESP8266









Part Number

GDEM0154E97LT

Type

Dot Matrix

Resolution

152*152

Outline Size(mm)

37.32*31.8*1.05

Active Size(mm)

27.512*27.512

Pixel Pitch(mm)

0.181*0.181

Operating Temp.

-20~55℃

Storage Temp.

-25~70℃

Connector

24 Pin FPC, Pitch:0.5mm

Max Grayscale

2

Color

Black,White

Current of the refresh(mA) 8
Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.0165
Time of refresh(s) 3
Time of partial refresh(s) 0.3

Purchase Online

buyepaper /AliExpress





Part Number

Color

Full refresh Time

Resolution

Feature

T/P and Front-light(optional)

GDEH0154D67

BW

2S

200x200

Partial refresh,High Resolution

GDEW0154Z04

BWR

8S

200x200

Three colors

GDEW0154Z17

BWR

16S

152x152

Three colors

GDEW0154C39

BWY

26S

152x152

Three colors

GDEW0154I9F

BW

3S

152x152

Flexible

x

GDEM0154E97LT

BW

3S

152x152

Low temperature

GDEW0154T8

BW

3S

152x152

Partial refresh,4 Grayscale

GDEW0154M09

BW 0.82S 200x200 Fast speed,High Resolution









Datasheet-E Paper Display,Controller IC,Connector,Source Code
File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEM0154E97LT Specifications

2.7

English

2019-01-10

961.47KB

IC Driver 1.0 English 2017-08-11 2.15MB
Connector Spec. 1.0 English 2017-08-11 1.77MB
Program upgrade instructions 1.0  English  2019-05-21 563KB
Picture Production and Bitmap Convert 1.0  English 2020-01-21 457.75KB









STM32 Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-07-12

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-07-12         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
GDEM0154E97LT STM32 Code                    1.0               English        2019-02-14         2.32MB
Partial code                1.0            English      2019-02-14                 2.01MB

 If you want to buy the set: e-paper and matched demo, please click here: With Drive Board / With Connect Board



Arduino Development Board

File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 DEArduino Specification

                   1.0

               English

       2018-11-28

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-11-28         701.28KB
DEArduino UNO for EPD_SCH               1.0            English      2018-11-28       462.58KB
Arduino Code Partial Refresh               1.0             English      2020-02-14        14.59KB



Rasberry Pi Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   3.0

               English

       2019-09-12

      673.62KB

DESPI-C03-SCH

                   1.0                English        2019-09-27         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
Rasberry Pi Sample Code                1.0             English      2019-10-25        78.33KB



ESP8266



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 ESP8266(C02) Specification

                   1.0

               English

       2020-04-02

      939.11KB

 ESP8266(C03)Specification                  1.0              English       2020-04-02       1.04MB

 ESP8266 for EPD-SCH

                   1.0                English        2020-01-07         72.68KB
 DESPI-C02-SCH                    1.0                English        2018-07-12         72.68KB













File Type

Description (Click to see more)

Language

Update Date
The Principle and Advantage of E-Paper English 2012-10-25
Matrix E-ink Display -- FAQ English 2017-08-16
Matrix E-ink Display -- FAQ Pt. 2 English 2018-11-13
Product list-1 English 2018-09-29
Product list-2 English 2018-09-29
Product list-3 English 2018-09-29
RoHS English 2018-12-27

Warranty

English

2016-10-25
Precautions English 2019-03-11
