Your present location:Home >> 2-Color EPD >> 1.54 inch small flexible partial refresh eink screen 4 Grayscale epaper display panel - GDEW0154I9F

Product Name: 1.54 inch small flexible partial refresh eink screen 4 Grayscale epaper display panel - GDEW0154I9F
Code: 015410
Quantity in stock: --
Retail price: --
Unit of measurement: --
Net weight: --
Views : 499

Details

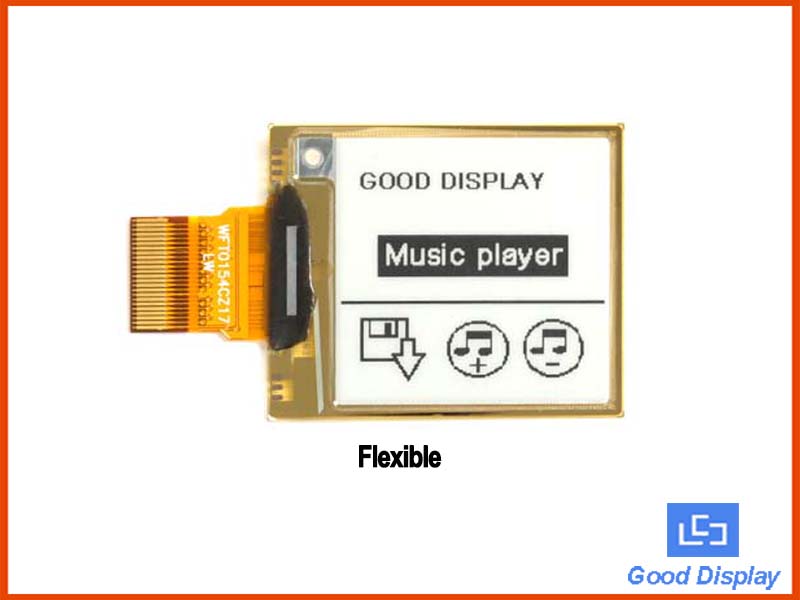

This is a 1.54 inch flexible 4 Grayscale e-ink display which use the flexible substrate as base plate, with interface and a reference system design. GDEW0154I9F contains 152x152 piexls, and has a 1-bit white/black full display capabilities, communicating via SPI interrface. Support partial refresh, fast update and no flicker update.

In view of so many advantages: ultra low power consumption, ultra wide viewing angle, GDEW0154I9F is a very good choice for applications like smart tags, smart watch and other related products.

· Flexible, Support small bending

· 4 Grayscale

· Ultra-thin, not fragile

· Support partial refresh, fast update and no flicker update.

· The I2C signal master interface to read built-in temperature sensor.

· Come with helpful development resources and manual (STM32 platform )

· Development platform available STM32 / Arduino / Raspberry Pi / ESP8266

Part Number	GDEW0154I9F
Type	Dot Matrix
Resolution	152x152
Outline Size(mm)	31.8x37.32x0.34
Actve Size(mm)	27.51x27.51
Pixel Pitch(mm)	0.181x0.181
Operating Temp.	0℃~50℃
Storage Temp.	-25℃~70℃
Connector	24 Pin FPC
Max Grayscale	4
Color	Black,White
Power consumption of the refresh(mW)	26.4
Standby power consumption Pc(mW)	0.0165
Time of refresh(s)	3
Time of partial refresh(s)	0.3
Purchase Online	buyepaper

Part Number	Color	Full refresh Time	Resolution	Feature	T/P and Front-light(optional)
GDEH0154D67	BW	2S	200x200	Partial refresh,High Resolution	√
GDEW0154Z04	BWR	8S	200x200	Three colors	√
GDEW0154Z17	BWR	16S	152x152	Three colors	√
GDEW0154C39	BWY	26S	152x152	Three colors	√
GDEW0154I9F	BW	3S	152x152	Flexible	x
GDEM0154E97LT	BW	3S	152x152	Low temperature	√
GDEW0154T8	BW	3S	152x152	Partial refresh,4 Grayscale	√
GDEW0154M09	BW	0.82S	200x200	Fast speed,High Resolution	√

Datasheet-E Paper Display，Controller IC,Connector,Source Code

File Type	Description (Downloadable)	Version	Language	Update Date	Size
	GDEW0154I9F Spec.	1.0	English	2019-05-31	2.2MB
	Connector Spec.	1.0	English	2017-08-11	1.77MB
	IC Driver	1.0	English	2020-01-21	486KB
	Picture Production and Bitmap Convert	1.0	English	2020-01-21	481.88KB

STM32 Development Board

File Type	Description (Downloadable)	Version	Language	Update Date	Size
	DESPI Specification	1.0	English	2018-07-12	673.62KB
	DESPI-C02-SCH	1.0	English	2018-07-12	701.28KB
	DESPI-M02-SCH	1.0	English	2018-07-12	1.2MB
	GDEW0154I9F STM32 Code	1.0	English	2019-10-22	2.32MB
	Partial refresh code	1.0	English	2019-05-31	1.68MB
	Readme(SPI interface Partial refresh considerations)	1.0	English	2019-11-19	0.84KB

Arduino Development Board

File Type	Description (Downloadable)	Version	Language	Update Date	Size
	DEArduino Specification	1.0	English	2018-11-28	673.62KB
	DEArduino UNO for EPD_SCH	1.0	English	2018-11-28	462.75KB
	DESPI-C02-SCH	1.0	English	2018-11-28	701.28KB
	GDEW0154I9F Arduino Code	1.0	English	2019-10-22	5.39KB

Rasberry Pi Development Board

File Type	Description (Downloadable)	Version	Language	Update Date	Size
	DESPI Specification	3.0	English	2019-09-12	673.62KB
	DESPI-C03-SCH	1.0	English	2019-09-27	701.28KB
	DESPI-M02-SCH	1.0	English	2018-07-12	1.2MB

ESP8266

File Type	Description (Downloadable)	Version	Language	Update Date	Size
	ESP8266(C02) Specification	1.0	English	2020-04-02	939.11KB
	ESP8266(C03)Specification	1.0	English	2020-04-02	1.04MB
	ESP8266 for EPD-SCH	1.0	English	2020-01-07	72.68KB
	D ESPI-C02-SCH	1.0	English	2018-07-12	72.68KB

File Type	Description (Click to see more)	Language	Update Date
	The Principle and Advantage of E-Paper	English	2012-10-25
	Matrix E-ink Display -- FAQ	English	2017-08-16
	Matrix E-ink Display -- FAQ Pt. 2	English	2018-11-13
	Product list-1	English	2018-09-29
	Product list-2	English	2018-09-29
	Product list-3	English	2018-09-29
	RoHS	English	2018-12-27

	Warranty	English	2016-10-25
	Precautions for E-paper Display	English	2019-03-11
