Products
Your present location:Home >> Monochrome LCD
Segmented TN/HTN LCD Panel
Product Image Product Name

Description

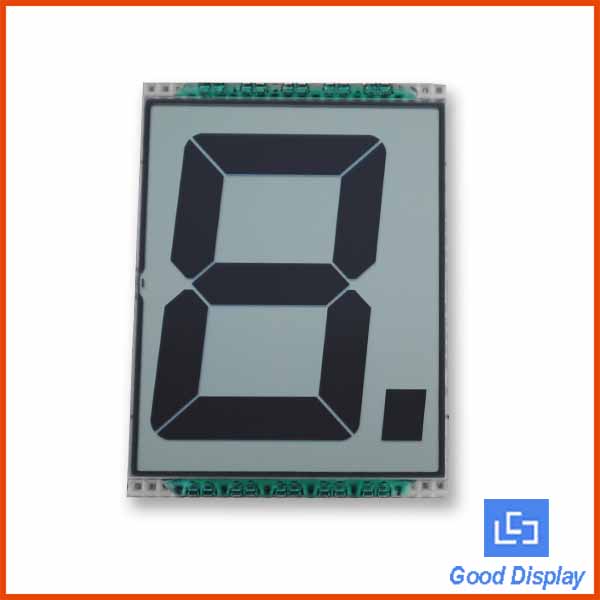

  1-digit segmented LCD Panel EDC006

Product Model: EDC006

Outline Dimension: 76.2x55.88x2.8mm

Drive method: Static

Operating Voltage: 3.0V/5.0V

Backlight: LED

Features: Static drive, 1-digit LCD

  1Digit LCD Panel, EDC004

Product Model: EDC004

Outline Dimension: 50.0x33.0x2.8 mm

Drive method: Static

Operating Voltage: 3.0V/5.0 V

Backlight: LED

Features: Static drive, 1 digit

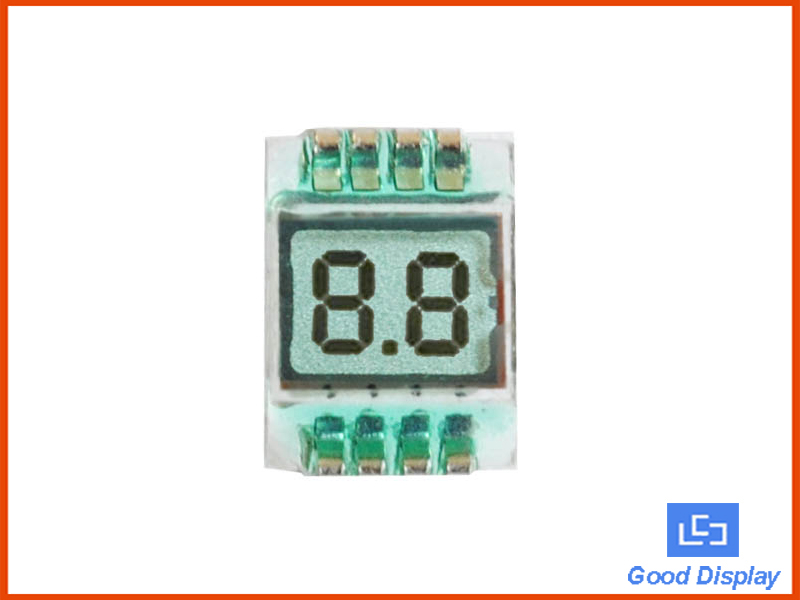

  2 Digit Small Size LCD Panel Segment LCDs GDC02693

  Product Model: GDC02693

  Outline Dimension: 7.5x10x1.1mm

  Drive method: 1/4duty  1/2bias

  Operating Voltage: 3.0V

  Backlight: No

  Features: Small Size

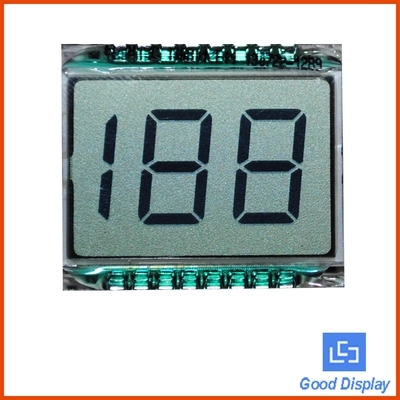

  2 1/2 Digit LCD Panel EDS819

Product Model: EDS819

Outline Dimension: 30.0x26.17mm

Drive method: Static

Operating Voltage: 3.0V/5.0V

Backlight: LED

Features: 2 1/2digits, Static drive

  3-1/2 Digit LCD display, EDS803

Product Model: EDS803

Outline Dimension: 50.8x30.48x2.8mm

Drive method: Static

Operating Voltage: 3.0V/5.0V

Backlight: LED

Features: 3 1/2 Digits display, static drive

  4 digit LCD display, EDS816

Product Model: EDS816

Outline Dimension: 93.98x45.72x2.8mm

Drive method: Static

Operating Voltage: 3.0V/5.0V

Backlight: LED

Features: Static drive lcd display

  4 Digits LCD Panel, EDS815

Product Model: EDS815

Outline Dimension: 69.85x38.1x2.8mm

Drive method: Static

Operating Voltage: 3.0V/5.0V

Backlight: LED

Features: static drive

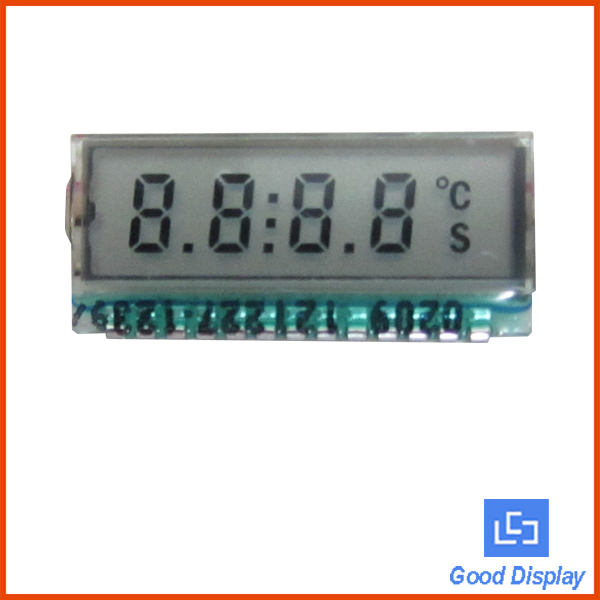

  4 Digits LCD Panel, GDC0209

Product Model: GDC0209

Outline Dimension: 23.0x10.0x2.8mm

Drive method: 1/4duty  1/3bias

Operating Voltage: 2.5 V

Backlight: LED

Features: 4 Digits ,1/4 duty

  4 Digits LCD screen, EDS805

Product Model: EDS805

Outline Dimension: 50.8x30.48x2.8mm

Drive method: Static

Operating Voltage: 3.0V/5.0V

Backlight: LED

Features: 4 Digits, static

  4 Digits TN positive transflective segment lcd ultra low temperature GDC04212

Product Model: GDC04212

Outline Dimension: 42x23x2.8mm

Drive method: 1/4duty  1/3bias

Operating Voltage: 3.0V

Backlight: Optional

Features:-40℃~80℃ , 4 Digits, TN  transflective

  4-1/2 Digit LCD Pane, EDS811

Product Model: EDS811

Outline Dimension: 50.8x30.48x2.8mm

Drive method: Static

Operating Voltage: 3.0V/5.0V

Backlight: LED

Features: 4 1/2 Digit LCD, Static drive

  4-1/2 Digits LCD Panel, EDS808

Product Model: EDS808

Outline Dimension: 50.8x22.86x2.8mm

Drive method: Static

Operating Voltage: 3.0V/5.0V

Backlight: LED

Features: 4 1/2 Digits, static

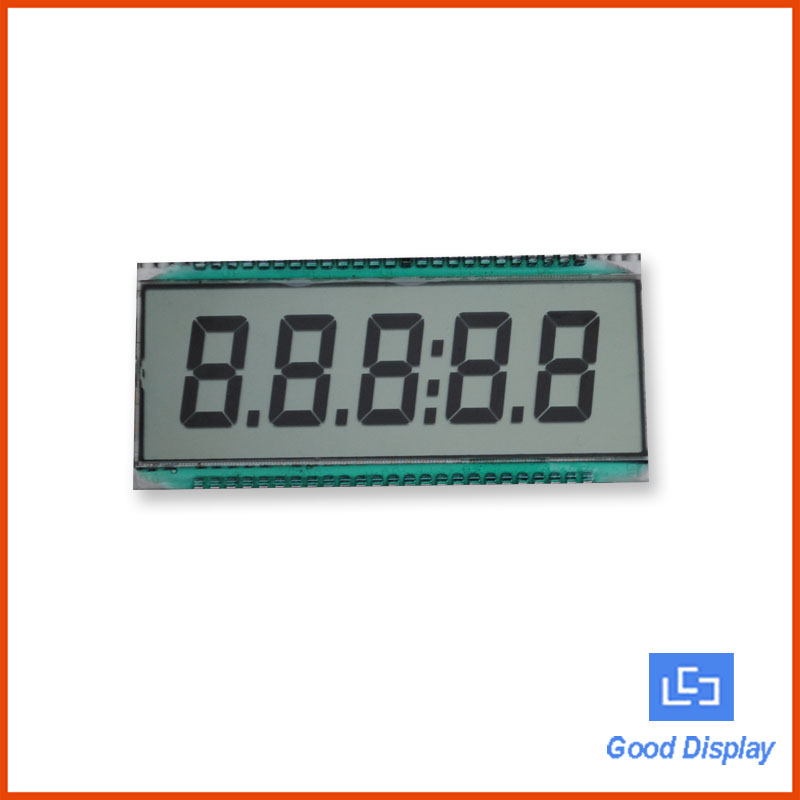

  5 Digits LCD screen GDC03828

Product Model: GDC03828

Outline Dimension: 81.0×37.5×2.8mm

Drive method: Static

Operating Voltage: 5.0V

Backlight: Optional

Features: 5 Digits LCD screen

  5-Digit LCD Panel EDS820

Product Model: EDS820

Outline Dimension: 50.8x30.48x2.8mm

Drive method: Static

Operating Voltage: 3.0V/5.0V

Backlight: LED

Features: 5-digit, static drive

  6 Digit LCD Panel ED139

Product Model: ED139

Outline Dimension: 137.16x46.38x2.8mm

Drive method: Static

Operating Voltage: 3.0V/5.0V

Backlight: LED

Features: 6 Digits, static drive

  6 Digit LCD Panel, EDS810

Product Model: EDS810

Outline Dimension: 93.85x38.1x2.8mm

Drive method: Static

Operating Voltage: 3.0V/5.0V

Backlight: LED

Features: 6 Digits LCD, Static Drive

  6 Digit LCD Panel, EDS818

Product Model: EDS818

Outline Dimension: 63.5x22.86x2.8mm

Drive method: Static

Operating Voltage: 3.0V/5.0V

Backlight: LED

Features: 6 Digits, Static drive

  6 digit LCD screen,GDC0689

Product Model: GDC0689

Outline Dimension: 42x25x2.8mm

Drive method: 1/4duty  1/3bias

Operating Voltage: 3.0V

Backlight: LED

Features: ultra extended operating temp:-40-+80℃

  6 Digits LCD Panel EDS809

Product Model: EDS809

Outline Dimension: 69.85x30.48x2.8mm

Drive method:  Static

Operating Voltage: 3.0V/5.0V

Backlight: LED

Features: 6 Digits LCD, static drive

  8 Digit LCD Panel, EDS806

Product Model: EDS806

Outline Dimension: 93.85x30.48x2.8mm

Drive method: Static

Operating Voltage: 3.0V/5.0V

Backlight: LED

Features: 8 Digits, Static

  11 digits  segment lcd panel GDC0178DP15

Product Model: GDC0178DP15

Outline Dimension:52.0x22.5x2.8mm

Drive method: 1/4duty  1/3bias

Operating Voltage: 3.0V

Backlight: LED

Features: Application for Flow Meter

  LCD for Air compressor, Low temp -40~80C  Customized LCD Panel GD46532

Product Model: GD46532

Outline Dimension: 37.0x25.6x2.8mm

Drive method: 1/4 Duty 1/3Bias

Operating Voltage: 3.0V

Backlight: LED

Features: Application for Air compressor

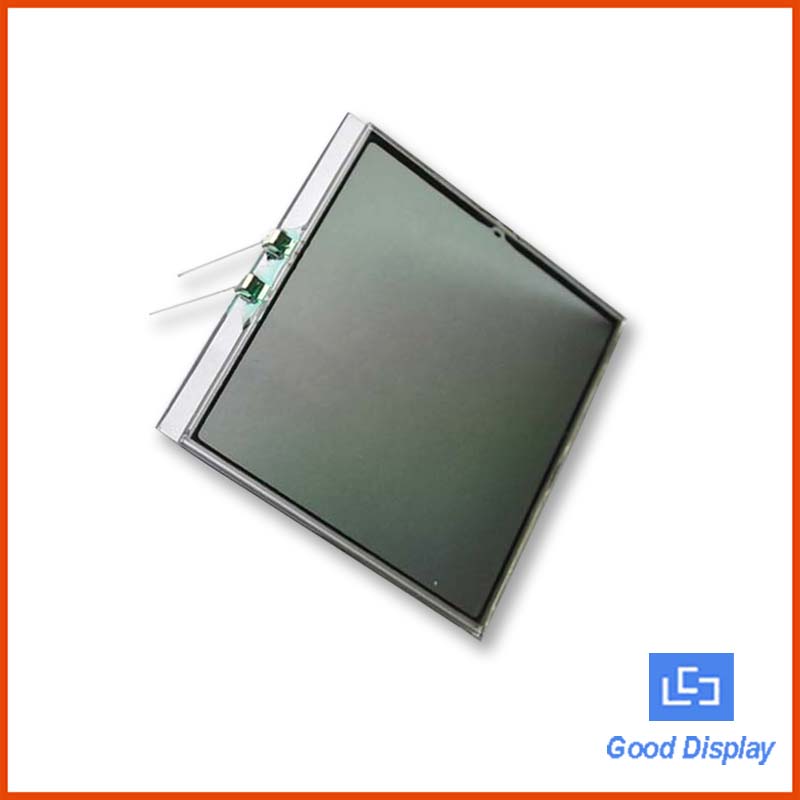

  Small size light valve LCD screen welding mask laser range finder display GDC8811

Product Model: GDC8811

Outline Dimension: 36x36x0.5 mmmm

Drive method: Static

Operating Voltage: 3.0V

Features: Small size light valve LCD screen welding mask laser range finder display

Segmented TN/HTN LCD Module
Product Image Product Name

Description

  4-digit 7-Segment LCD Module EDM1190-03

Product Model: EDM1190-03

Outline Dimension: 72.8x35.5x10.9 mm

Operating Voltage: 5.0 V

Backlight: LED

Features: 4-digit, Low Power LCM

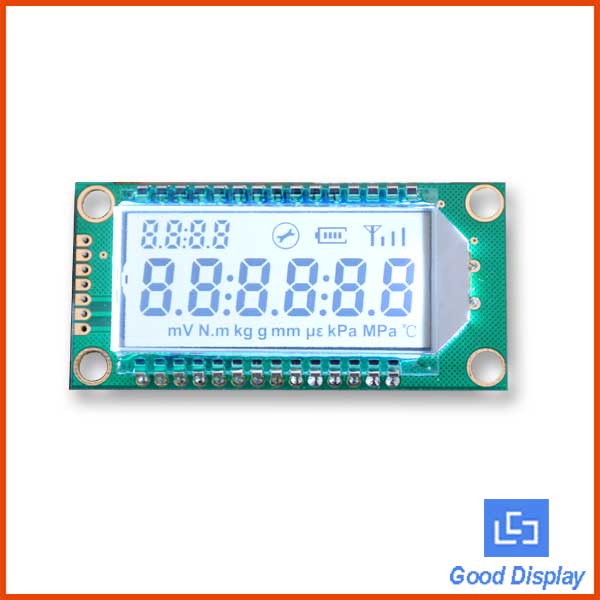

  6-digit 8-Segment ultra-low temperature segment LCD module GDM0689

Product Model: GDM0689

Outline Dimension: 58.0x28.0x6.70mm

Operating Voltage: 3.3V

Backlight: LED

Features: -40C ultra-low temperature

Character STN LCD Module
Product Image Product Name

Description

  8x1 character LCD YM0801B

Product Model: YM0801B

Outline Dimension: 55.0x17.0x8.5 mm

Operating Voltage: 5.0 V

Backlight: LED

Features: 8x1 character LCD,SPLC780D

  16x1 character LCD module YM1601A

Product Model: YM1601A

Outline Dimension: 80.0x36.0x13.0mm

Operating Voltage: 5.0 V

Backlight: LED

Features: 16x1 LCD,KS0066U

  16x2 big lcd module YM1602L

Product Model: YM1602L

Outline Dimension: 122.0x44.0x14.0 mm

Operating Voltage: 5.0 V

Backlight: LED

Features: 16x2 big size lcd, KS0066

  16x2 character lcd display YM1602C

Product Model: YM1602C

Outline Dimension: 80.0x36.0x12.5mm

Operating Voltage: 5.0 V

Backlight: LED

Features: 16x2 character lcd display

  16x4 Character LCD display, YM1604C

Product Model: YM1604C

Outline Dimension: 77.0x51.0x13.0mm

Operating Voltage: 5.0 V

Backlight: LED

Features: KS0074

COG Graphical STN/FSTN LCD Module
Product Image Product Name

Description

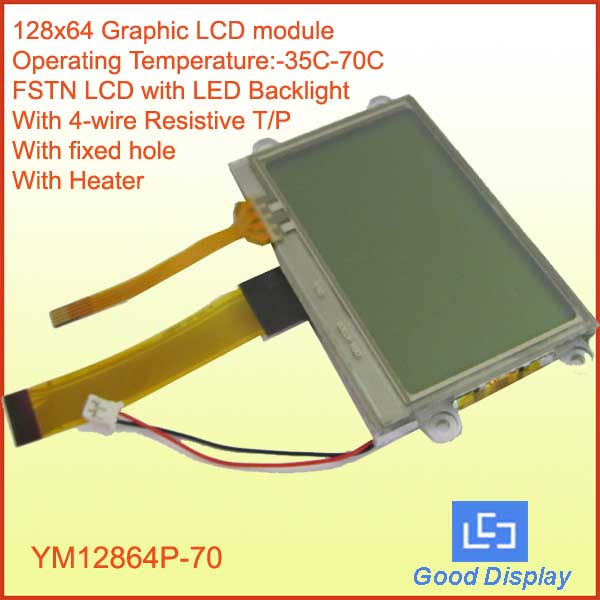

  128X64 ultra-extended temp LCD with T/P YM12864P-70

Product Model: YM12864P-70

Outline Dimension: 93.7x51.3x7.6mm

Drive method:0.52x0.52mm

Operating Voltage: 3.3 V

Backlight: LED (Yellow-green)

Features: -35°C operating temp. with T/P

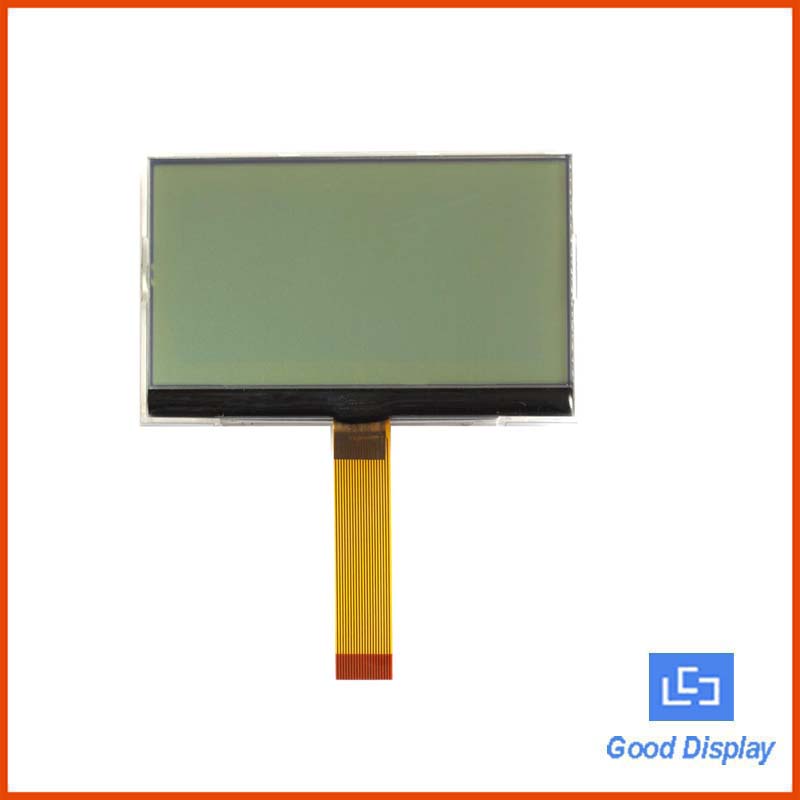

  128X64 Transflective COG  LCD Module YM12864-G35

Product Model: YM12864-G35

Outline Dimension: 80.2 x 51.2 x 5.6mm

Drive method:1/64Duty    1/9Bias

Operating Voltage: 3.0

Backlight: LED

Features: Transflective FSTN Mode,White

COB/SMT Graphical STN LCD Module
Product Image Product Name

Description

  LCD Module Display YM12864A

Product Model: YM12864A

Outline Dimension: 113.0x65.0x14.0 mm

Dot Pitch:0.508x0.508 mm

Operating Voltage:

Backlight: LED

Features: KS0107  KS0108

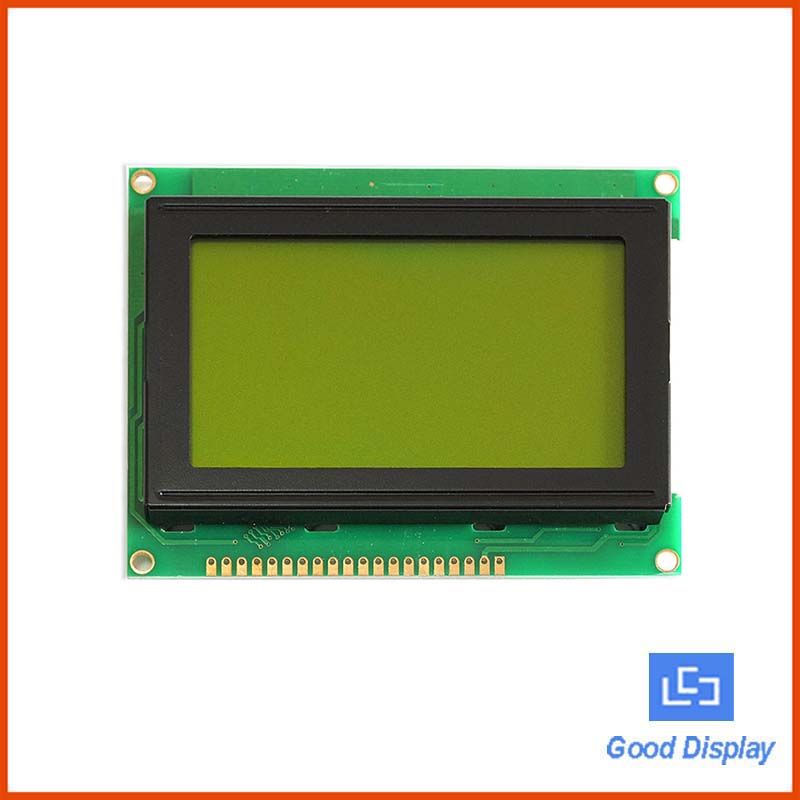

  128X64 STN COB LCD Module Yellow-Green mode YM12864J

Product Model: YM12864J

Outline Dimension: 93.0x70.0x14.0 mm

Dot Pitch:0.52x0.52 mm

Operating Voltage: --

Backlight: LED

Features: Transflective STN COB LCD Module Yellow-Green/Blue-White

  128x64 LCD with operating temp at -40℃YM12864J-7

Product Model: YM12864J-7

Outline Dimension: 93.0x70.0x13.5 mm

Dot Pitch:0.52x0.52mm

Operating Voltage: 5.0V

Backlight: White sde LED

Features: Built-in ITO Heater, Auto-bootting up at -20℃

  128x64 Graphic LCD Module YM12864C

Product Model: YM12864C

Outline Dimension: 78.0x70.0x13.0 mm

Dot Pitch:0.39x0.55mm

Operating Voltage: 5.0V

Backlight: LED

Features: With Touch Screen(option), Black on Amber

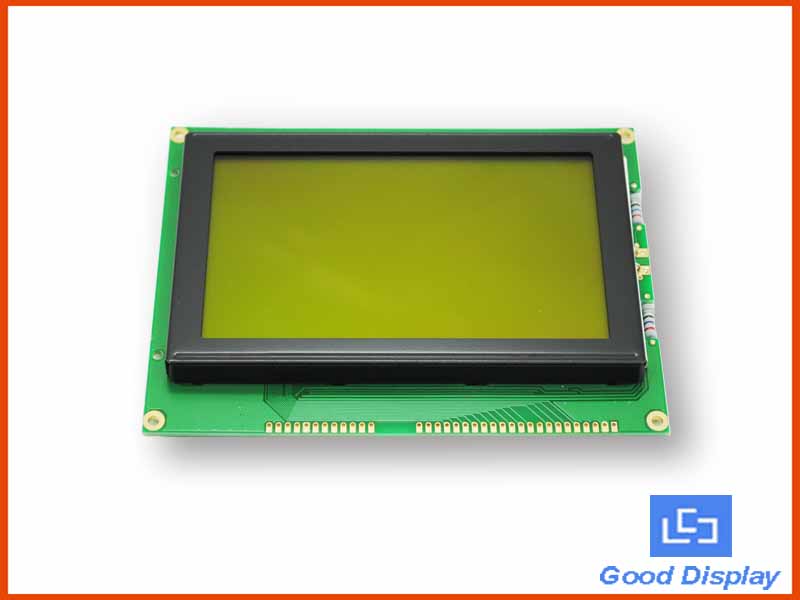

  LCD Module 240x128 YM240128A-11

Product Model: YM240128A-11

Outline Dimension: 144.0(W) x 105.5(H) x15.0mm

Dot Pitch: 0.45 x 0.45 mm

Operating Voltage: 5V

Backlight: LED

Features:

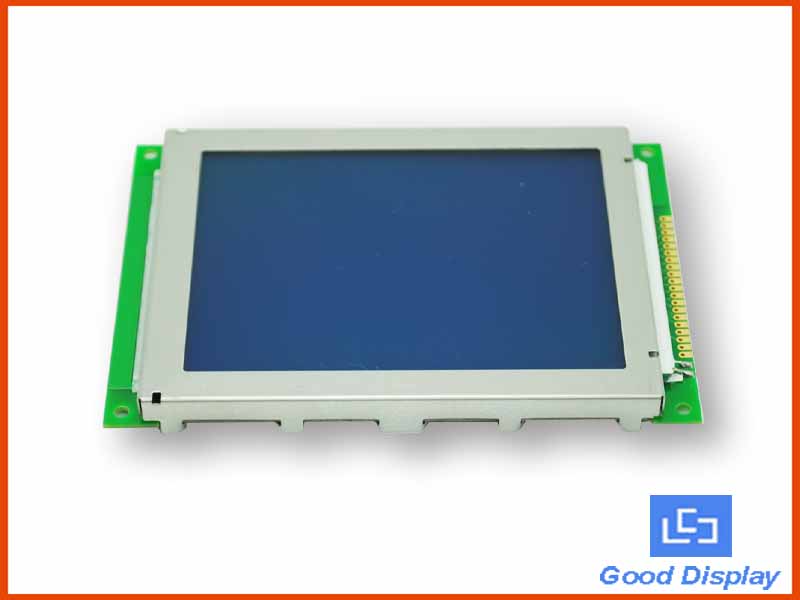

  5.0" 320x240 Grahpic LCD YM320240B-3

Product Model: YM320240B-3

Outline Dimension: 139.0x100.0x12.5 mm

Dot Pitch: 0.30 x 0.30 mm

Operating Voltage: 5.0 V

Backlight: LED

Features: 5inch 320X240 LCD with white LED
