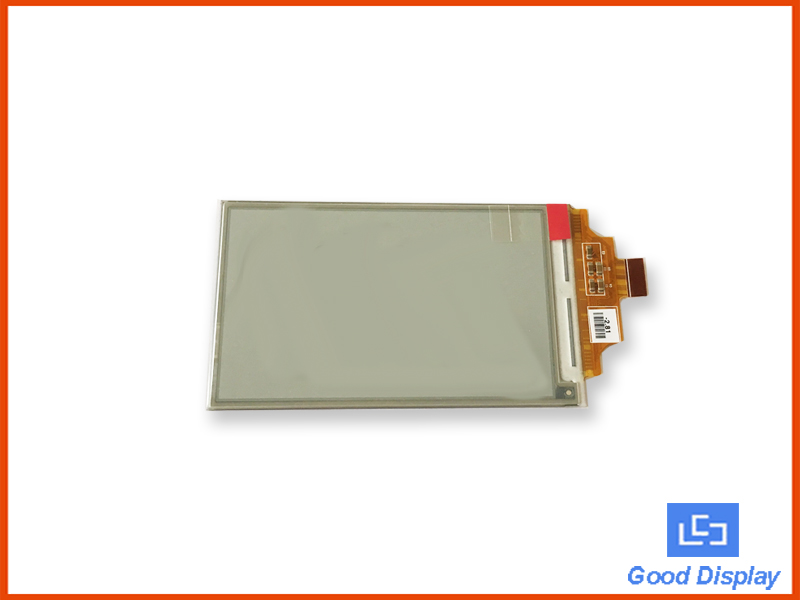

4.3 inch e-paper display 480 x 800 pixels parallel eink display
  • Product Name: 4.3 inch e-paper display 480 x 800 pixels parallel eink display
  • Code: 04302
  • Quantity in stock:
  • Retail price:
  • Unit of measurement: pcs
  • Net weight: 16g
  • Views : 1248






GDEP043ZF3 is a reflective electrophoretic E Ink technology display module based on active matrix
TFT substrate. It has 4.3” active area with 480 x 800 pixels, the display is capable to display images at
2-16 gray levels (1-4 bits) depending on the display controller and the associated waveform file it
used.







High contrast reflective/electrophoretic technology
480 x 800 display
Ultra wide viewing angle
Ultra low power consumption
Pure reflective mode
Bi-stable
Commercial temperature range
Landscape, portrait mode








Part Number

GDEP043ZF3

Type

Dot Matrix

Screen Size

4.3 inch

Resolution

800*480

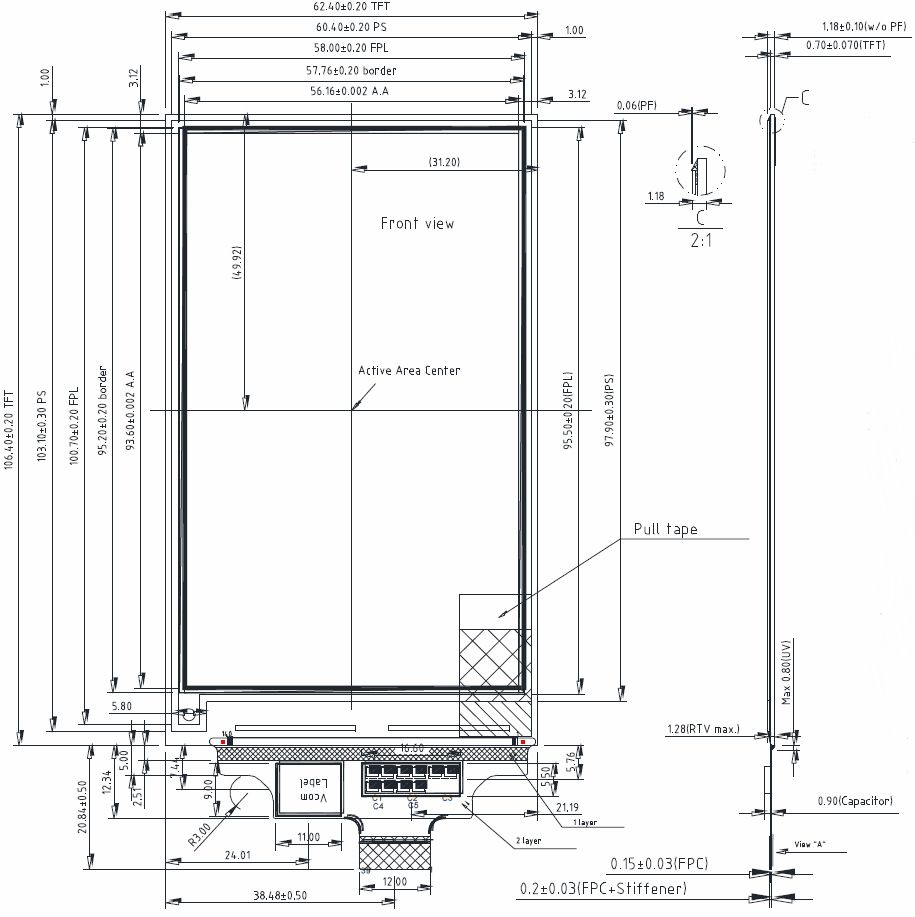

Outline Size(mm)

62.4*106.4*1.18

Active Size(mm)

56.16*93.6

Pixel Pitch(mm)

0.117*0.117

Operating Temp.

0℃~50℃

Storage Temp.

-25℃~70℃

Connector

-

Max Grayscale

16

Color

Black,White

Module Weight

16g













Format

Documents Name (Downloadable)

Version

Language

Update Date

Size

GDEP043ZF3 Product Specification

1.0

English

03-16-2017

710.03MB
