| Product Image | Product Name | Description | |
|---|---|---|---|
|

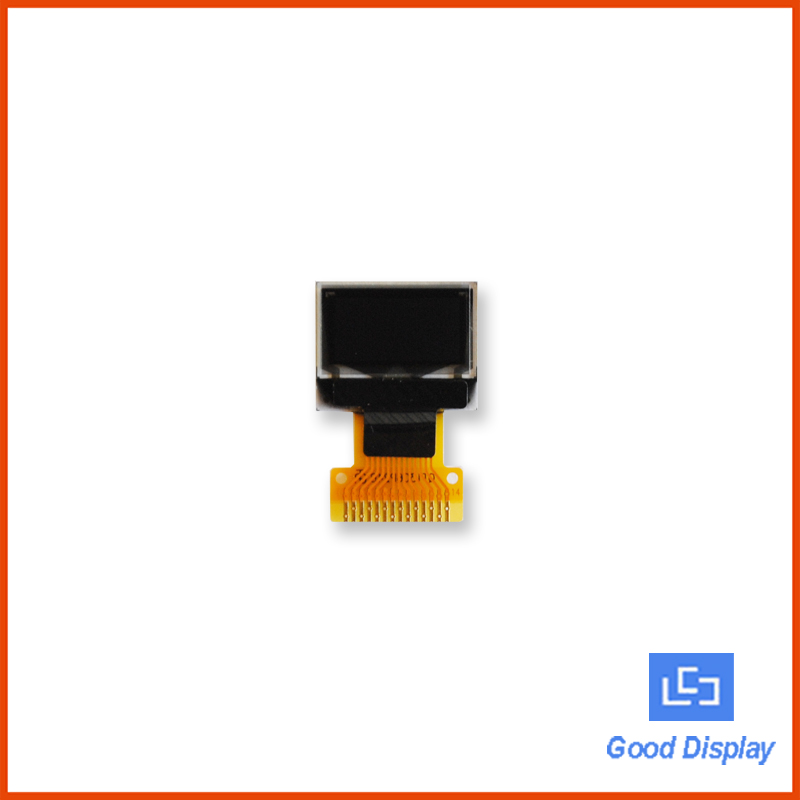

0.49"OLED Display Module SSD1306,White on Black |
Product Model： GDO0049W Outline Dimension： 14.50(W)x11.60(H)x1.20(T)mm Dot Pitch： 0.175x0.175mm Operating Voltage： 2.8V Features： no backlight,high contrast,extremely wide viewing angle and extremely operating temperature. |
|
|

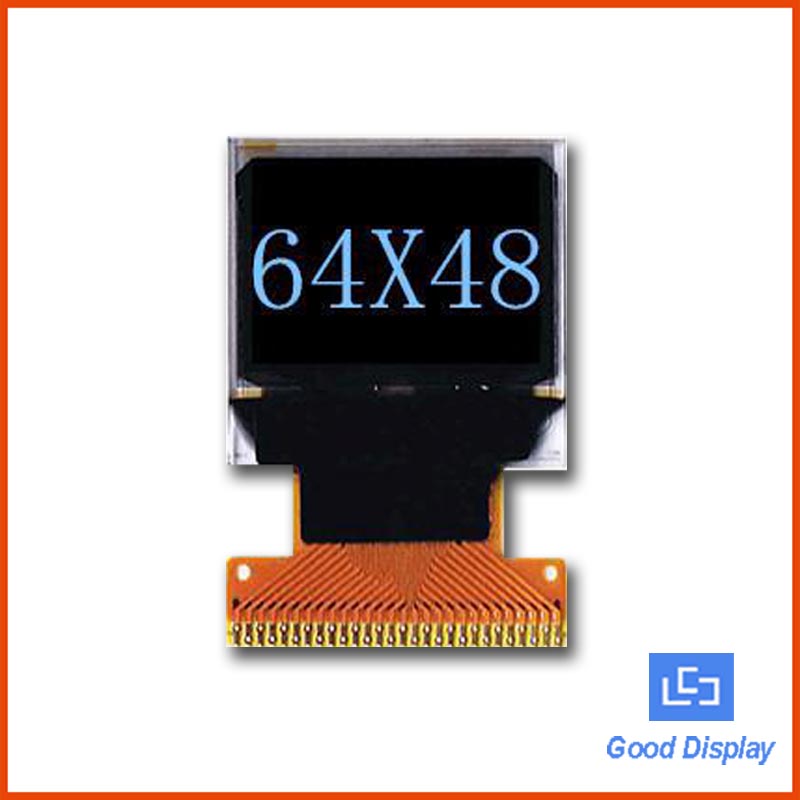

0.66"Very Smalll OLED Display Module 64x48 Display Module |
Product Model： GDO0066B Outline Dimension： 18.46(W)x18.10(H)x1.45(T)mm Dot Pitch： 0.21x0.21mm Operating Voltage： 2.8V Features： no backlight,high contrast,extremely wide viewing angle and extremely operating temperature. |
|
|

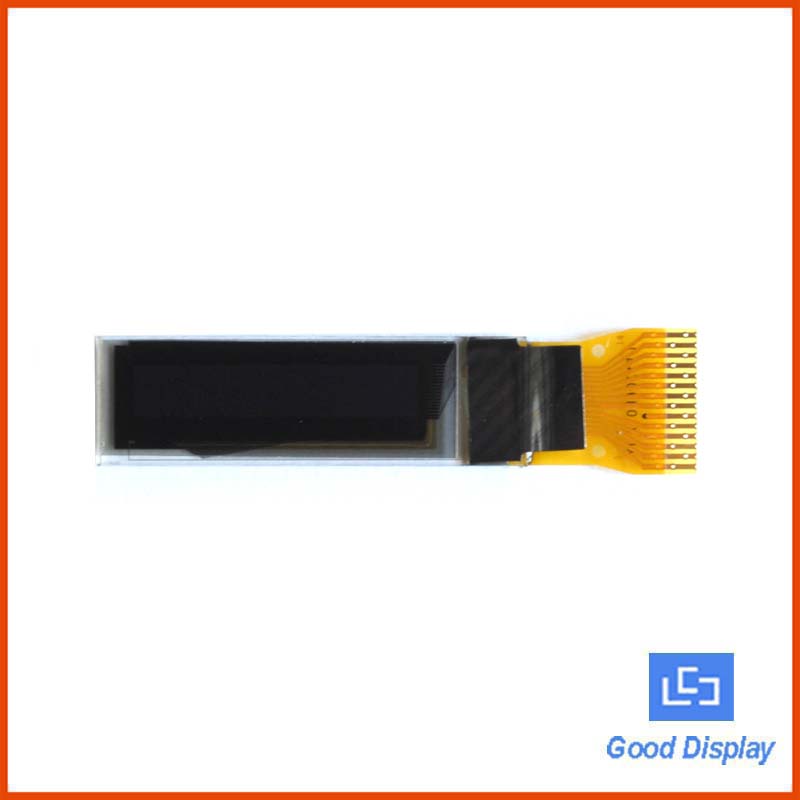

0.69 inch small white 96x16 dots OLED display GDOA0069W |
Product Model： GDOA0069W Outline Dimension： 26.3 × 8× 1.3mm Dot Pitch： 0.18 × 0.2mm Operating Voltage：2.8V Features： small, white, 96x16 dots |
|
|

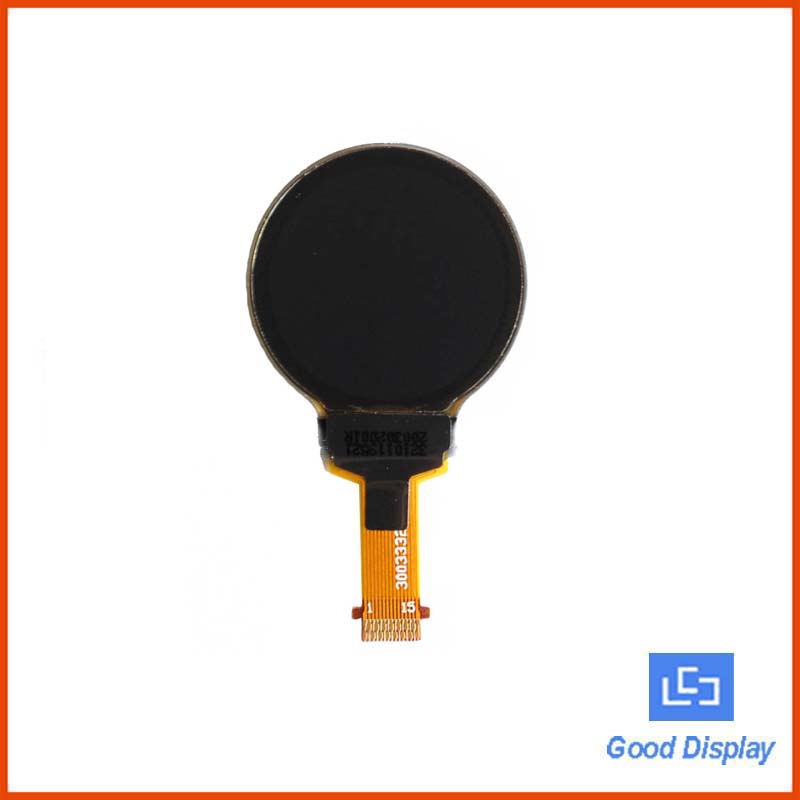

0.75 inch round small white 128x128 dots OLED display GDOR0075W |
Product Model： GDOR0075W Outline Dimension： 23.15 (W) x 40.93 (H) x 1.21 (T) mm Dot Pitch： 0.15 (W) x 0.15 (H)mm Operating Voltage： 2.8V Features： round, small,128x128 |
|
|

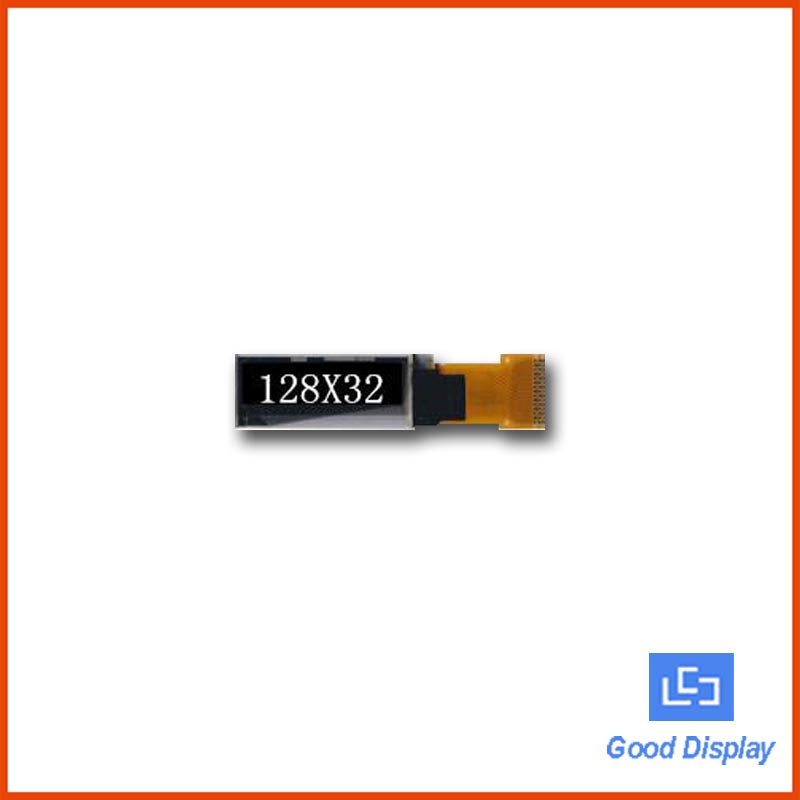

0.91" OLED Display Module |
Product Model： GDO0091B Outline Dimension： 30.0(W)x11.50(H)x1.45(T)mm Dot Pitch： 0.175x0.175mm Operating Voltage： 2.8V Features： no backlight,high contrast,extremely wide viewing angle and extremely operating temperature. |
|
|
0.96"128x64 OLED Display Module/ Blue and Yellow |
Product Model： GDO0096YB Outline Dimension： 26.70(W)x19.26(H)x1.45(T)mm Dot Pitch： 0.17x0.17mm Operating Voltage： 2.8V Features： no backlight,high contrast,extremely wide viewing angle and extremely operating temperature. |
|
|

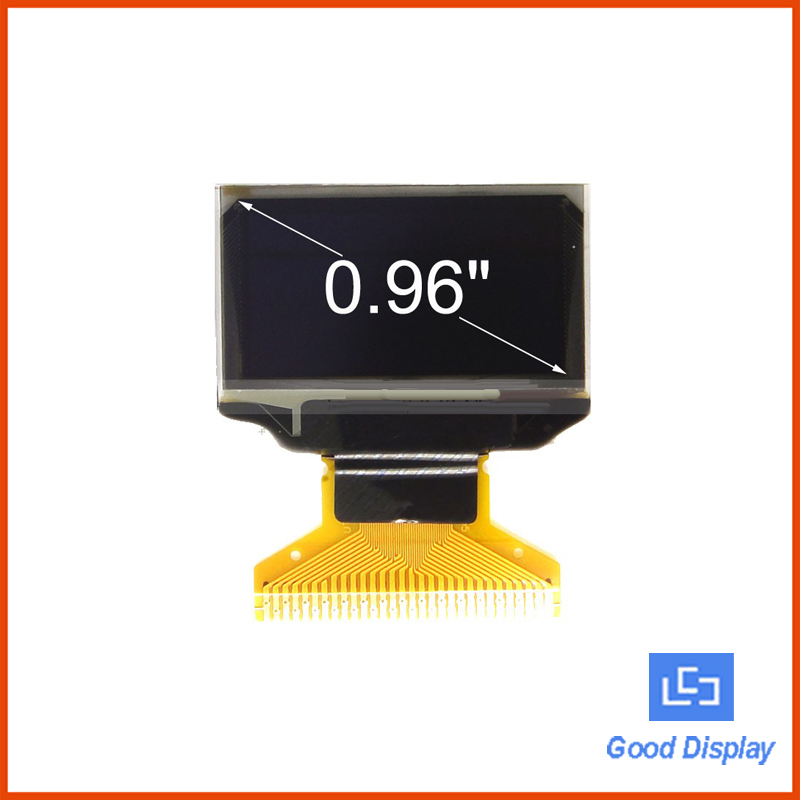

0.96" OLED Graphic Display Module GDO096B |
Product Model： GDO0096B Outline Dimension： 26.70(W)x19.26(H)x1.45(T)mm Dot Pitch： 0.17x0.17mm Operating Voltage： 2.8V Features： no backlight,high contrast,extremely wide viewing angle and extremely operating temperature. |
|
|

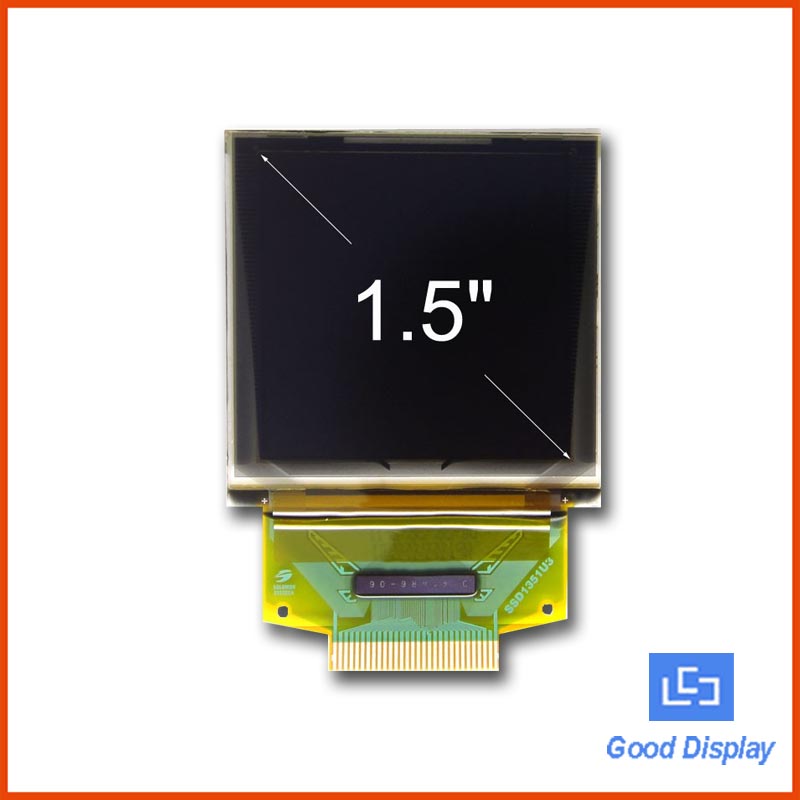

1.5"Color OLED Display Module |
Product Model： GDO0150C Outline Dimension： 33.80(W)x34.00(H)x1.60(T)mm Dot Pitch： 0.07x0.21mm Operating Voltage： 2.8V Features： color graphic OLED display module |
|
|

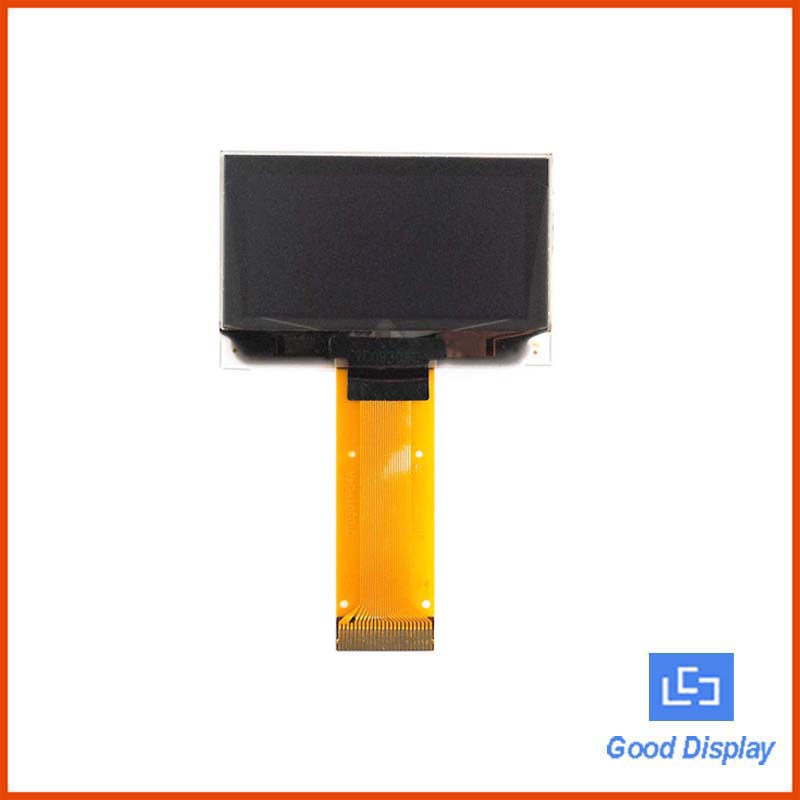

1.54 inch White OLED Display Module GDOA0154W |
Product Model： GDOA0154W Outline Dimension： 42.04x27.22x1.4(mm) mm Dot Pitch： 0.274x0.274(mm) mm Operating Voltage： 2.8v Features： Wide temperature range |
|
|

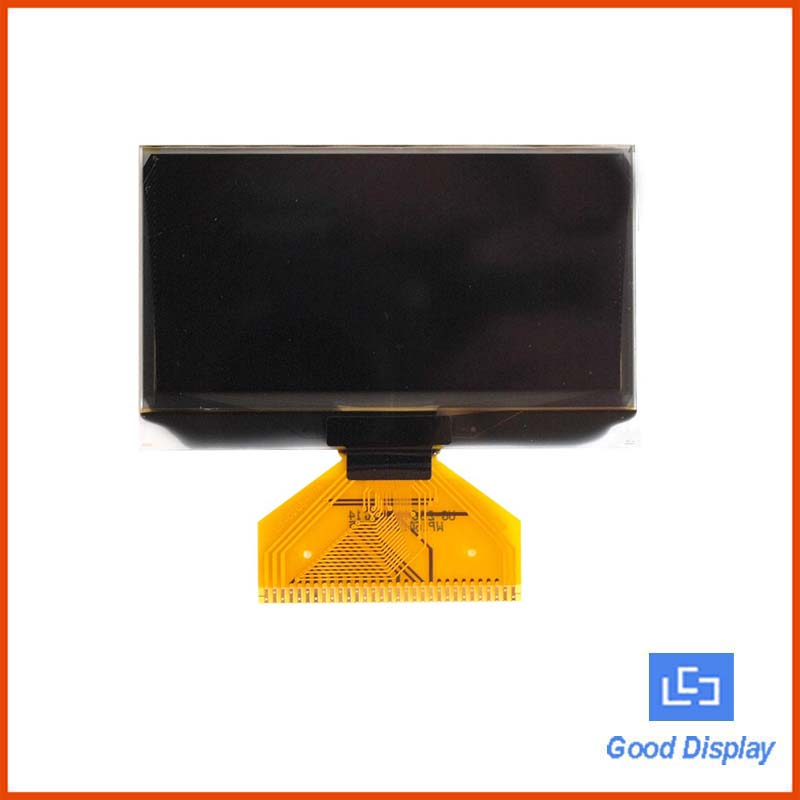

2.4 inch green 128x64 dots OLED display GDOE0240G |
Product Model： GDOE0240G Outline Dimension： 60.50x37.00x2.00mm Dot Pitch： 0.43x0.43mm Operating Voltage： 2.8V Features： 2.4 inch, green,128x64 dots, OLED |
|
|

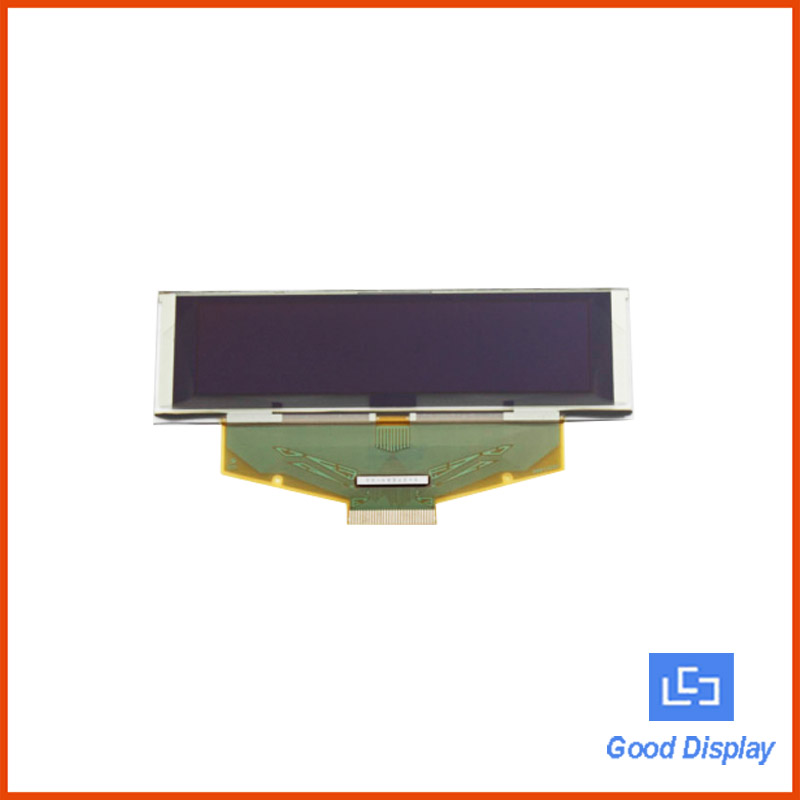

2.8"OLED Modules 256x64 Graphic Display screen GDO028B |
Product Model： GDO0280B Outline Dimension： 84.00(W)x25.80(H)x2.00(T)mm Dot Pitch： 0.27x0.27mm Operating Voltage： 2.8V Features： no backlight,high contrast,extremely wide viewing angle and extremely operating temperature. |
