0.69 inch small white 96x16 dots OLED display GDOA0069W
  • Product Name: 0.69 inch small white 96x16 dots OLED display GDOA0069W
  • Code: 90069
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 138

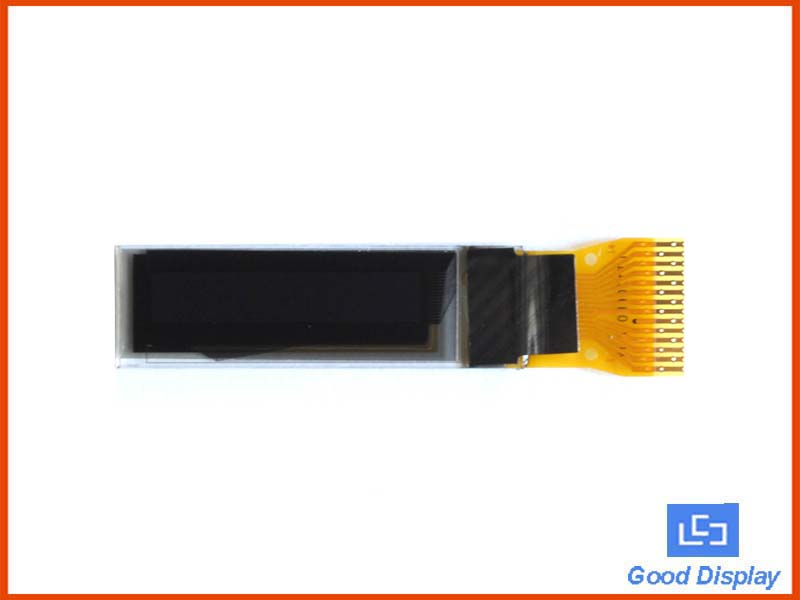

This is a white OLED display folding type panel, 0.69 inch with 96x16 pixels. The drive IC is SSD1306. Its operating temperature is -40℃~70℃, storage temperature is -40℃~85℃. The brightness is 150(Typ) cd/m².

This OLED display possessing the excellent characteristics such as autoluminescence, wide angle of view, wide temperature range becomes the ideal choice for instruments and apparatus.







· Autoluminescence.
· Ultra low power consumption.
· Wide temperature range
· Come with helpful manual







Part Number

GDOA0069W
Diagonal Size 0.69 inch

Display Mode

Passive Matrix

Display Color

Monochrome (White)

Drive Duty

1/16 Duty

Number of Pixels

96x16
Interface I2C

Driver IC

SSD1306

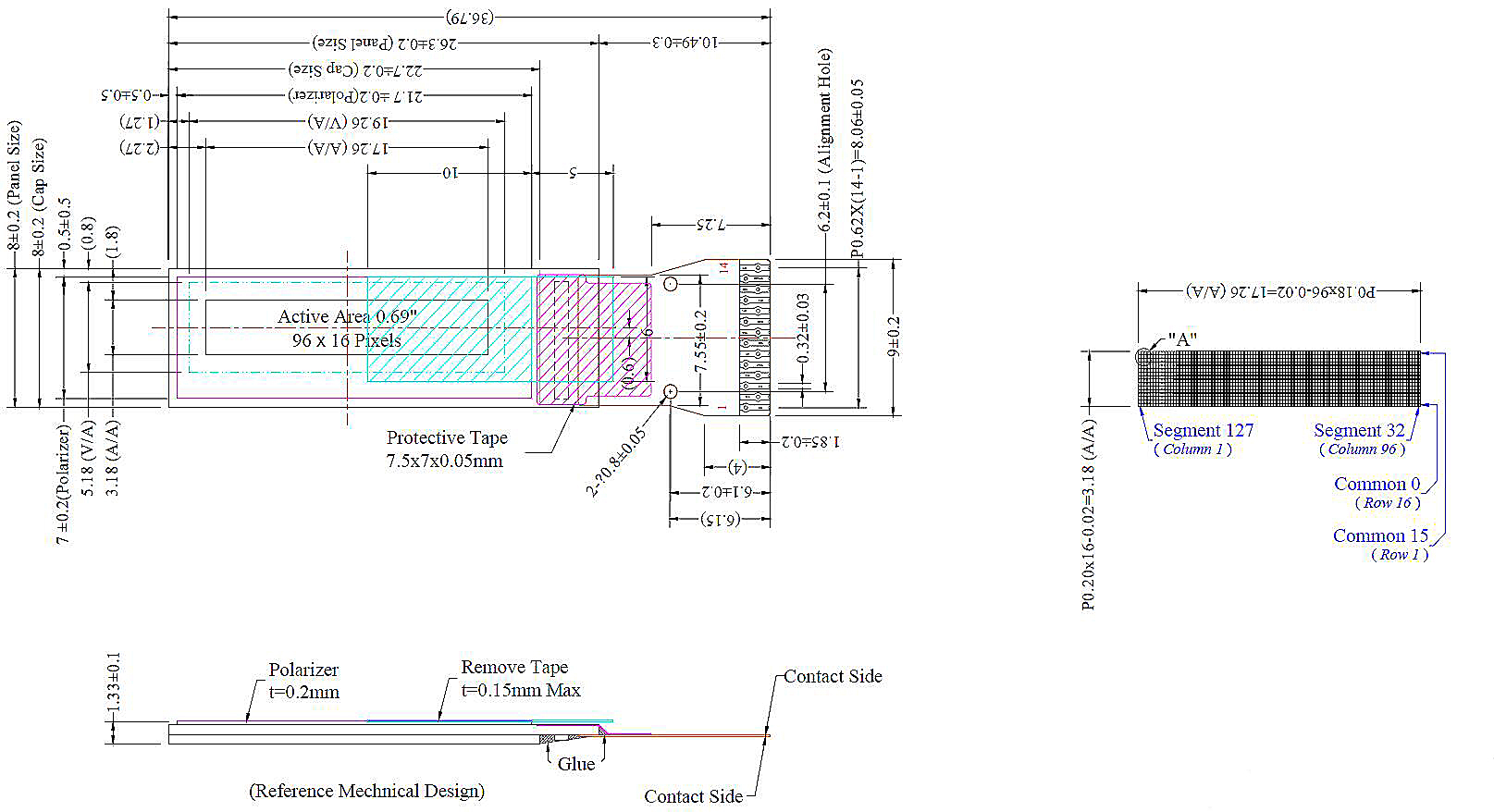

Outlin Dimension

26.3 × 8× 1.3 (mm)

Active Area

17.26 ×3.18 (mm)

Pixel Pitch

0.18 × 0.2 (mm)

Pixel Size

0.16 × 0.18 (mm)

Brightness(Typ)

150 cd/m²(Typ)

Operating Temperature

-40℃~70℃

Storage Temperature

-40℃~85℃
Buy Samples buyepaper






Datasheet-E Paper Display，Controller IC,Connector,Source Code



File Type

Description (Downloadable)

 Version

Language

Update Date

Size
GDOA0069W

1.0

English

2019-06-25

1.04MB
SSD1306 1.0 English 2019-06-25 1.88MB
