Your present location:Home >> 3-Color E-Paper Display



Tri-color e-paper display usually refers to black, white, red e-paper display and black, white, yellow e-paper display,

One thing to note: tri-color display does not support fast/partial refresh and 4 grayscale display at the present.

For more information about new e-paper displays, please visit our new website:www.good-display.com.



Product Image Product Name Description

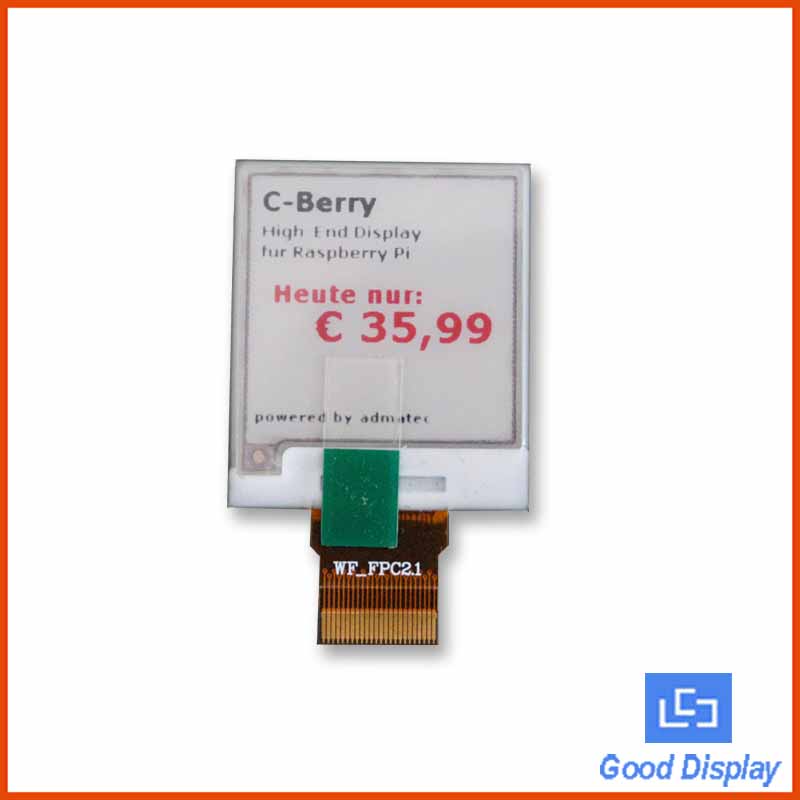

  1.54 inch tri-color e-paper display, 3-color epaper screen, GDEW0154Z04

Product Model: GDEW0154Z04

Outline Dimension: 31.8(H)×37.3(V) ×1.05(D)mm

Dot Pitch: 0.138×0.138mm

Operating Voltage: 3.3V

Front-light: Optional

Features: 3-color, Black White and Red, 200×200 resolution

  2.13 inch black,white and red e-paper display, three colors, e-ink, GDEH0213Z98

Product Model: GDEH0213Z98

Outline Dimension: 29.2x59.2x0.9mm

Dot Pitch: 0.194x0.194mm

Operating Voltage: 3.3v

Front-light: --

Features: 3 color, black, white and red, 122x250 resolution

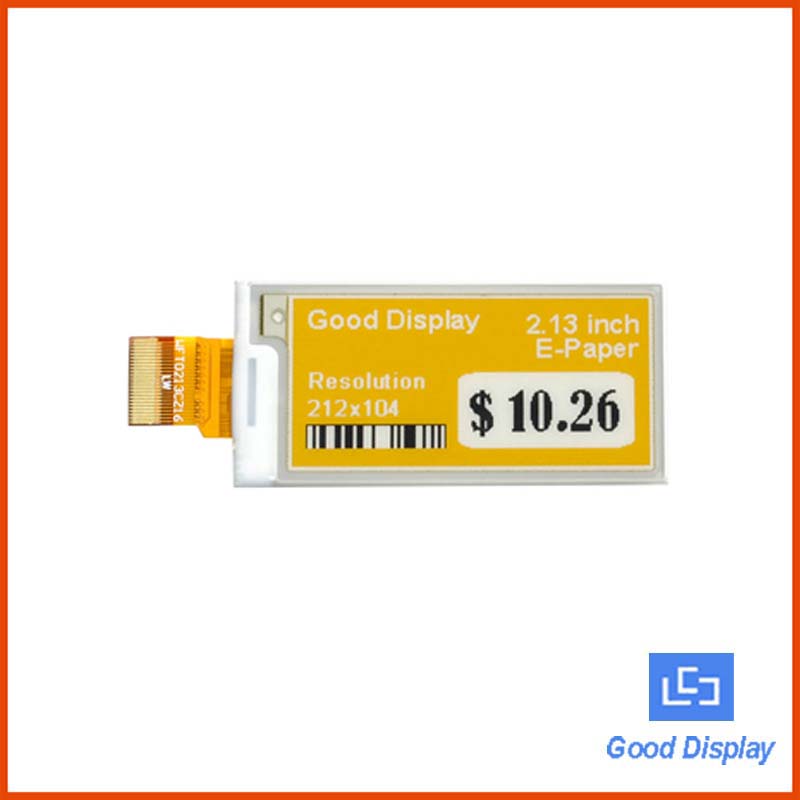

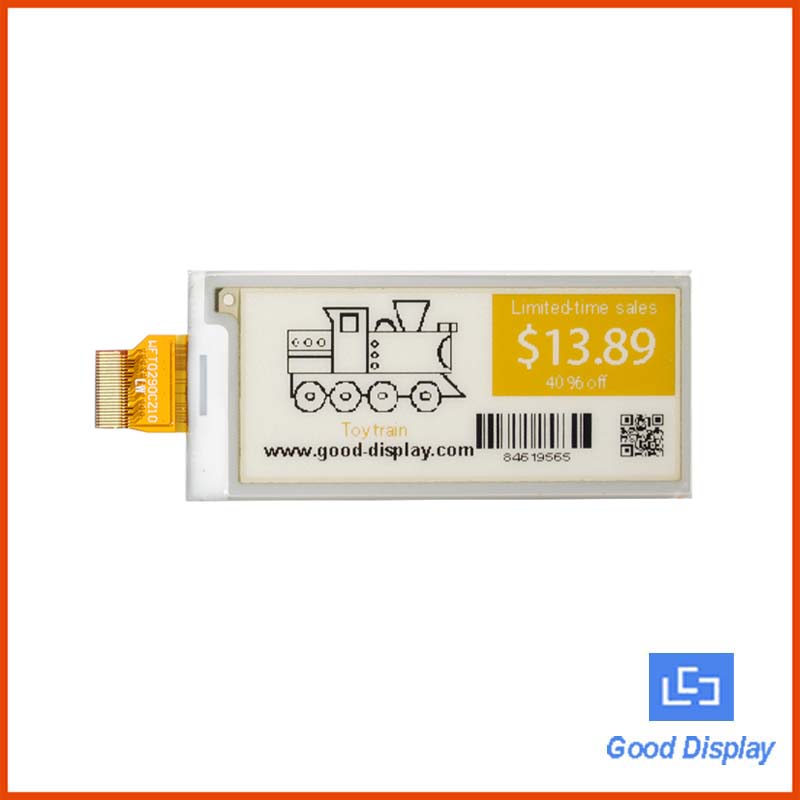

  2.13 inch color e-paper display BWY three colors E ink panel black white and yellow GDEW0213C38

  Product Model: GDEW0213C38

  Outline Dimension: 59.2(H)×29.2(V)×0.98(D)mm

  Dot Pitch: 0.229×0.228mm

  Operating Voltage: 3.3v

  Front-light: --

  Features:black, white and yellow, 212x104 resolution

  2.7 inch color e-paper display three color electronic paper screen GDEW027C44

Product Model: GDEW027C44

Outline Dimension: 70.42(H) × 45.8(V) × 0.98(D)mm

Dot Pitch: 0.217 × 0.217mm

Operating Voltage: 3.3 V

Front-light: --

Features: 3 color, black, white and red, 264x176 resolution

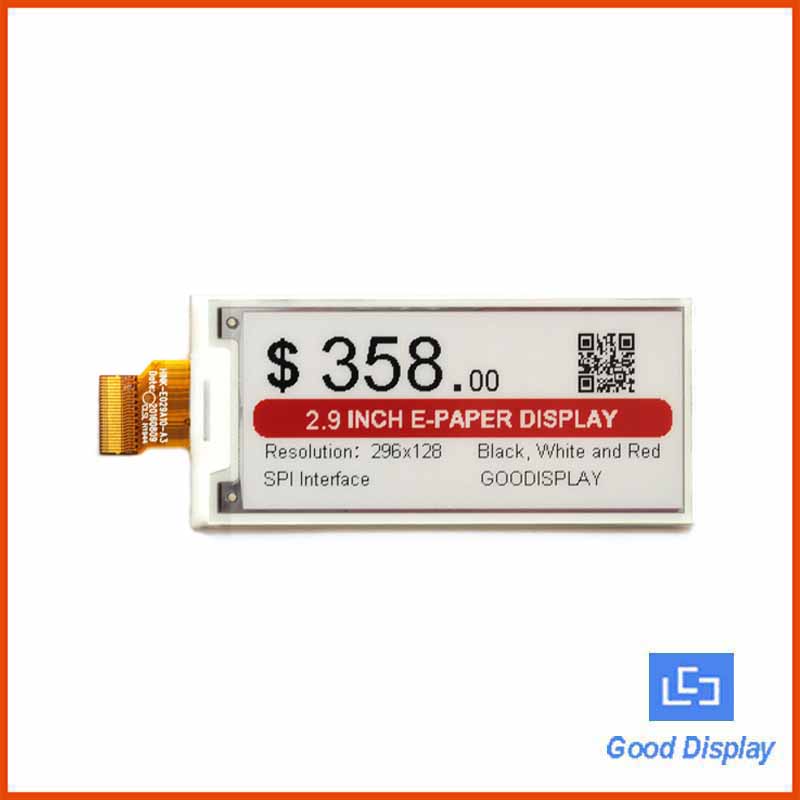

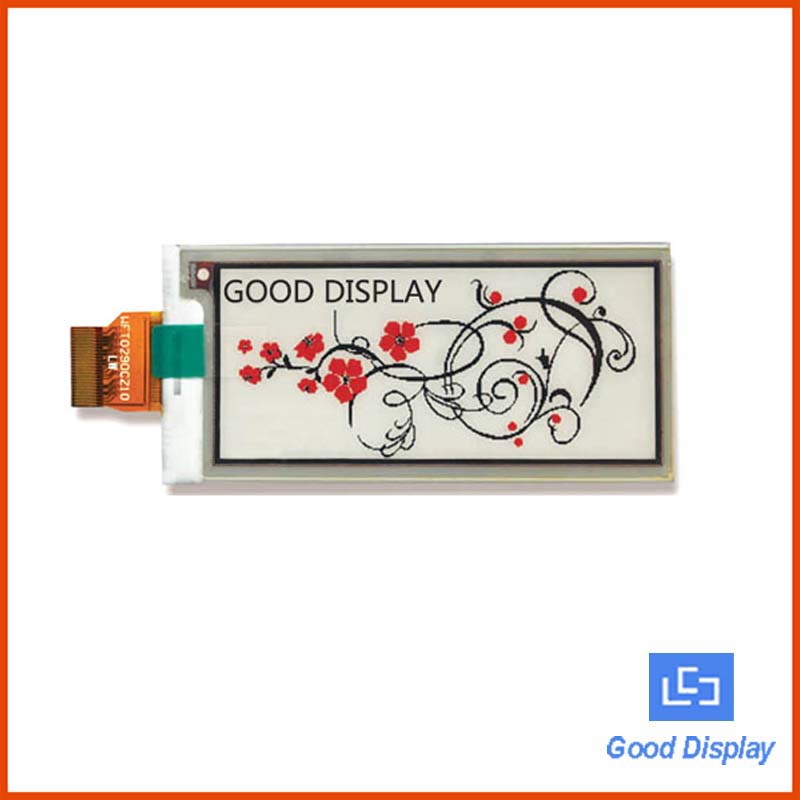

  2.9-inch color e-paper display electronic paper screen GDEW029Z10

  Product Model: GDEW029Z10

  Outline Dimension: 79.0 (H)x36.7 (V) x1.18(D)mmmm

  Dot Pitch: 0.227×0.226mmmm

  Operating Voltage: 3.3V

  Front-light: --

  Features: 3 color, black, white and red, 296×128 resolution

  2.9 inch colorful e-paper display, black, white and red, e-ink screen module, GDEH029Z92

Product Model: GDEH029Z92

Outline Dimension: 79x36.7x1.08mm

Dot Pitch: 0.227x0.226mm

Operating Voltage: 3.3v

Front-light: --

Features: three colors, red, 128x296 resolution.

  2.9 inch color e-paper display BWY three colors E ink panel black white and yellow GDEW029C32

  Product Model: GDEW029C32

  Outline Dimension: 79.0(H)×36.7(V)×1.18(D)mm

  Dot Pitch: 0.227×0.226mm

  Operating Voltage: 3.3V

  Front-light: --

  Features:black, white and yellow, 296x128 resolution

  3.71 inch Three colors red e-paper display module GDEW0371Z80

Product Model: GDEW0371Z80

Outline Dimension: 92.99x53x1.18mm

Dot Pitch: 0.196x0.196mm

Operating Voltage: 3.3v

Front-light: --

Features: three colors, red, 416x240 resolution

  3.71 inch color e-ink display red e-paper screen module GDEH037Z01

Product Model: GDEH037Z01

Outline Dimension: 53x92.99x1.05mm

Dot Pitch: 0.202x0.203mm

Operating Voltage: 3.3v

Front-light: --

Features: 3 color, black, white and red

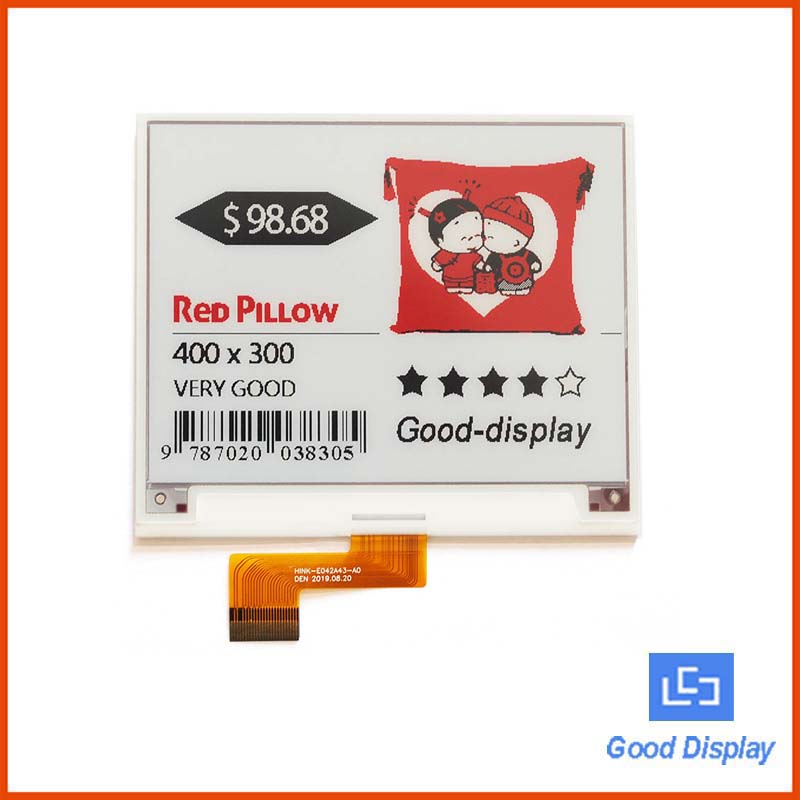

  4.2 inch red e-paper display color electronic paper screen module GDEH042Z21

Product Model: GDEH042Z21

Outline Dimension: 91x77x1.25mm

Dot Pitch: 0.212x0.212mm

Operating Voltage: 3.3v

Front-light: --

Features: three colors, black white and red.

  4.2 inch three colors e-paper display red electronic paper screen module GDEH042Z96

Product Model: GDEH042Z96

Outline Dimension: 91x77x1.25mm

Dot Pitch: 0.212x0.212mm

Operating Voltage: 3.3V

Front-light: --

Features: 3 color, black, white and red

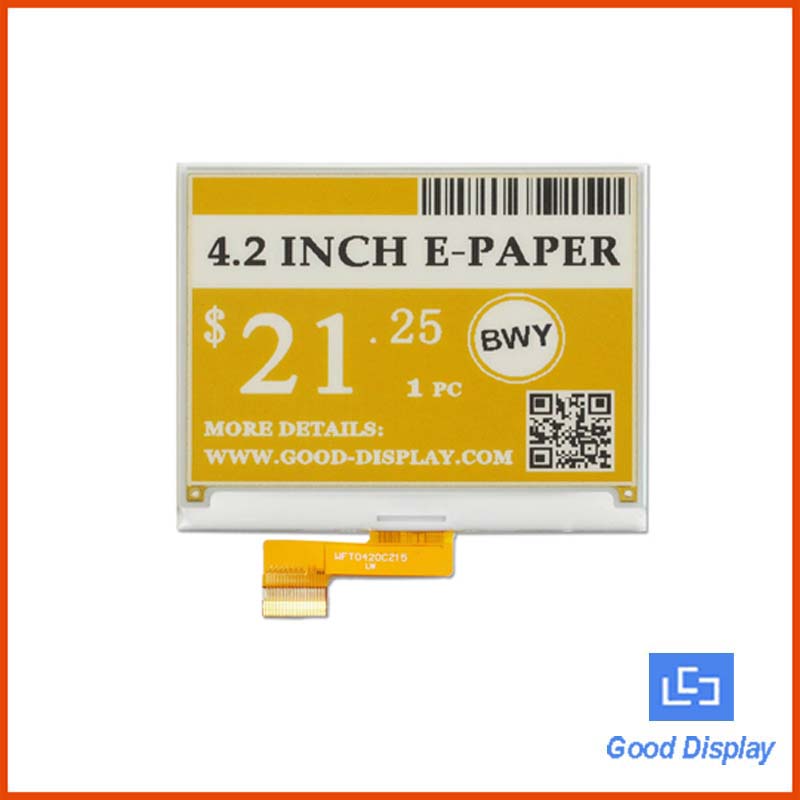

  4.2 inch color e-paper display BWY three colors E ink panel black white and yellow GDEW042C37

  Product Model: GDEW042C37

  Outline Dimension: 91.0(H)×77.0(V)×1.18(D)mm

  Dot Pitch: 0.212×0.212mm

  Operating Voltage: 3.3v

  Front-light: --

  Features:3 color, black, white and yellow, 400x300

  4.2 inch color e-paper display three color electronic paper GDEW042Z15

  Product Model: GDEW042Z15

  Outline Dimension:91.0(H)×77.0(V) ×1.18(D)mm

  Dot Pitch: 0.212×0.212mm

  Operating Voltage: 3.3 V

  Front-light: --

  Features: 3 color, black, white and red, 400x300 resolution

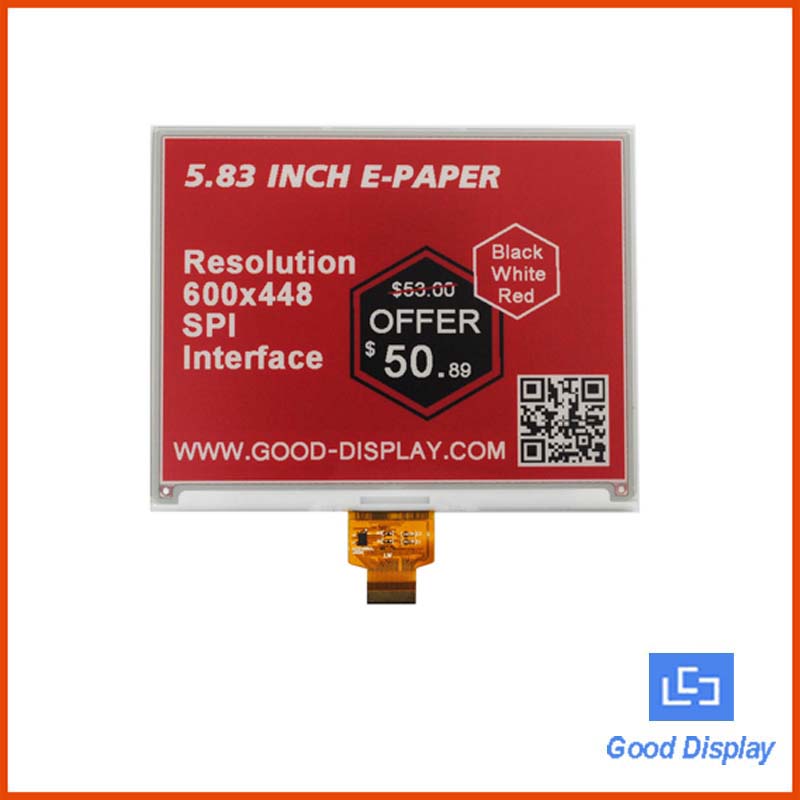

  5.83 inch e-paper display| three colors GDEW0583Z21

Product Model: GDEW0583Z21

Outline Dimension: 125.40×99.50×1.18mm

Dot Pitch: 0.198×0.197mm

Operating Voltage: 3.3v

Front-light: --

Features: 3 color, black, white and red, 600x448 resolution

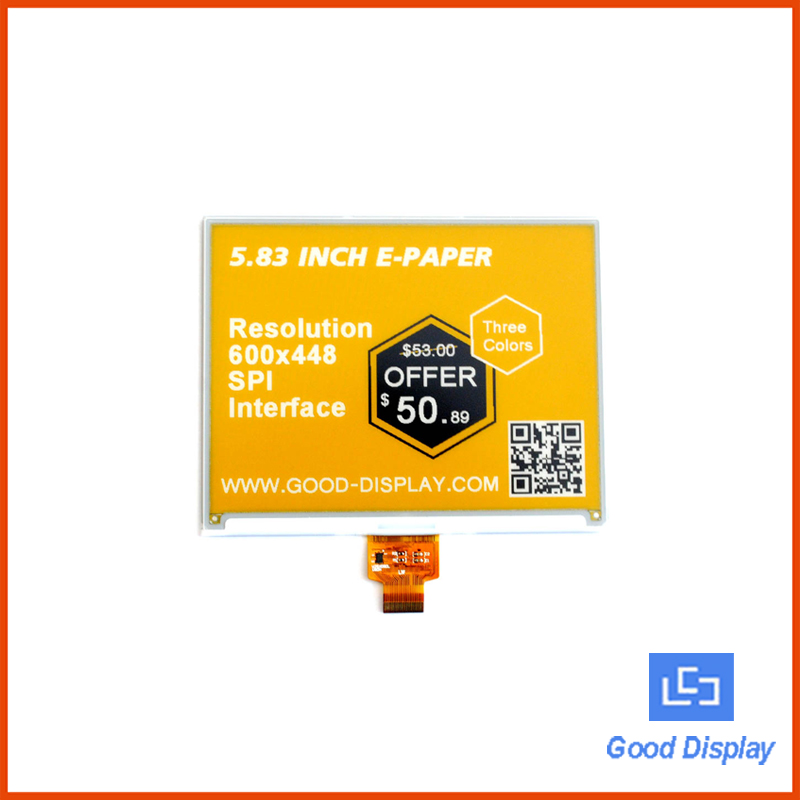

  5.83 inch e-paper display| black white and yellow| GDEW0583C64

  Product Model: GDEW0583C64

  Outline Dimension: 125.40×99.50×1.18mm

  Dot Pitch: 0.198×0.197mm

  Operating Voltage: 3.3v

  Front-light: --

  Features: 3 color, black, white and yellow, 600x448

  5.83 inch high resolution red e-paper display three colors GDEW0583Z83

Product Model: GDEW0583Z83

Outline Dimension: 125.40x99.50x1.18mm

Dot Pitch: 0.184x0.1874mm

Operating Voltage: 3.3 v

Front-light: --

Features: Higher resolution 648x480, three colors, red

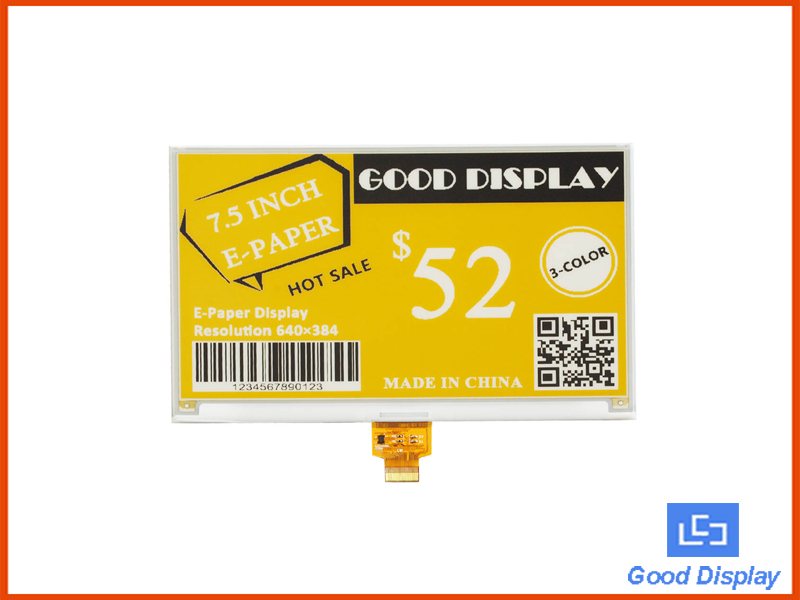

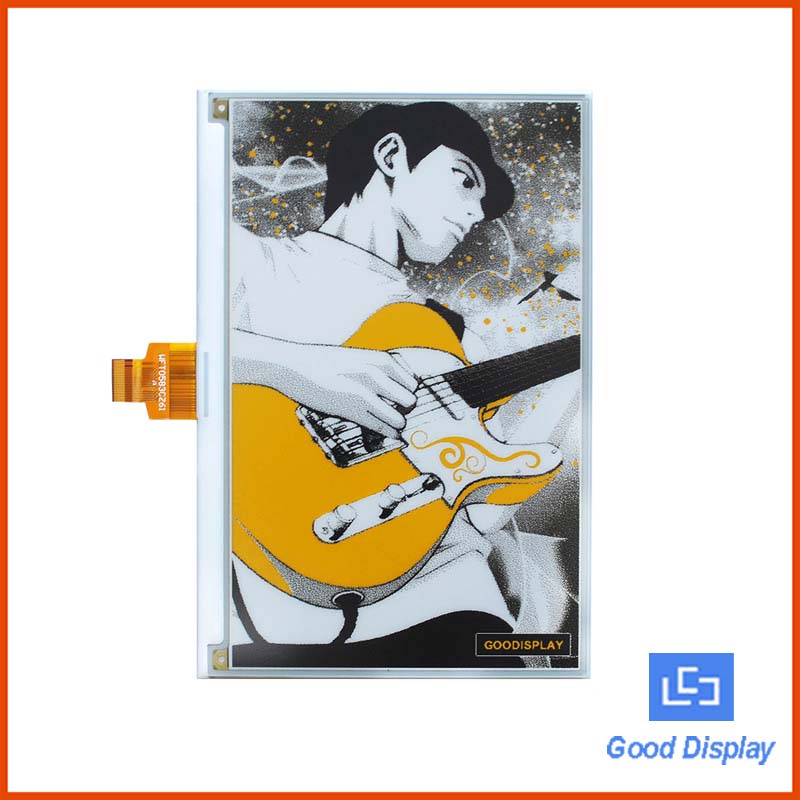

  7.5 inch three-color e-paper display E-ink large panel black white and yellow GDEW075C21

  Product Model: GDEW075C21

  Outline Dimension: 170.20(H)×111.20(V)×1.18(D)mm

  Dot Pitch: 0.255×0.255mm

  Operating Voltage: 3.3v

  Front-light:Optional

  Features: black, white and yellow, 640x384 resolution

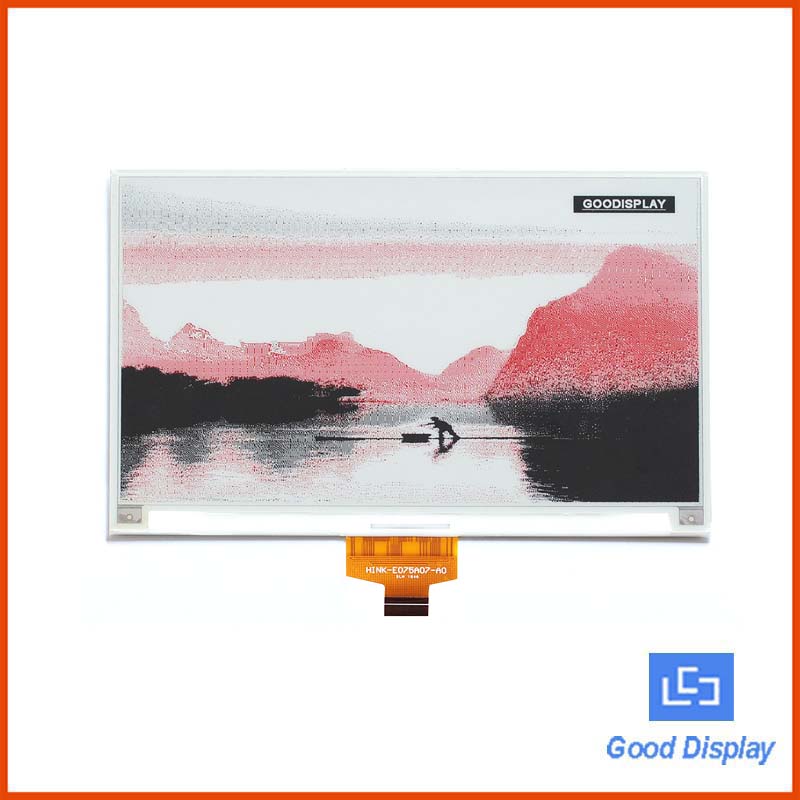

  7.5 inch tri-color e-paper display large electronic paper screen GDEW075Z09

  Product Model: GDEW075Z09

  Outline Dimension: 170.20(H) × 111.20(V) × 1.18(D)mm

  Dot Pitch: 0.255 × 0.255mm

  Operating Voltage: 3.3 V

  Front-light: --

  Features: black, white and red, 640×384 resolution

  7.5 inch three-color e-paper display high resolution E-ink large panel black white and yellow GDEW075C64

  Product Model: GDEW075C64

  Outline Dimension: 170.2x111.2x1.18mm

  Dot Pitch: 0.205x0.204mm

  Operating Voltage: 3.3V

  Front-light: Optional

  Features: High resolution 800x480, three colors yellow

  7.5 inch colorful red e-paper display 880x528 resolution large e-ink screen module GDEH075Z90

Product Model: GDEH075Z90

Outline Dimension: 170.2x111.2x1.25mm

Dot Pitch: 0.1855x0.1855mm

Operating Voltage: 3.3v

Front-light: Optional

Features: Highest resolution, 880x528, three colors

  7.5 inch tri-color red high resolution e-paper display large e-ink screen module GDEW075Z08

  Product Model: GDEW075Z08

  Outline Dimension: 170.2x111.2x1.18mm

  Dot Pitch: 0.205x0.204mm

  Operating Voltage: 3.3v

  Front-light: Optional

  Features: High resolution, 800x480 resolution

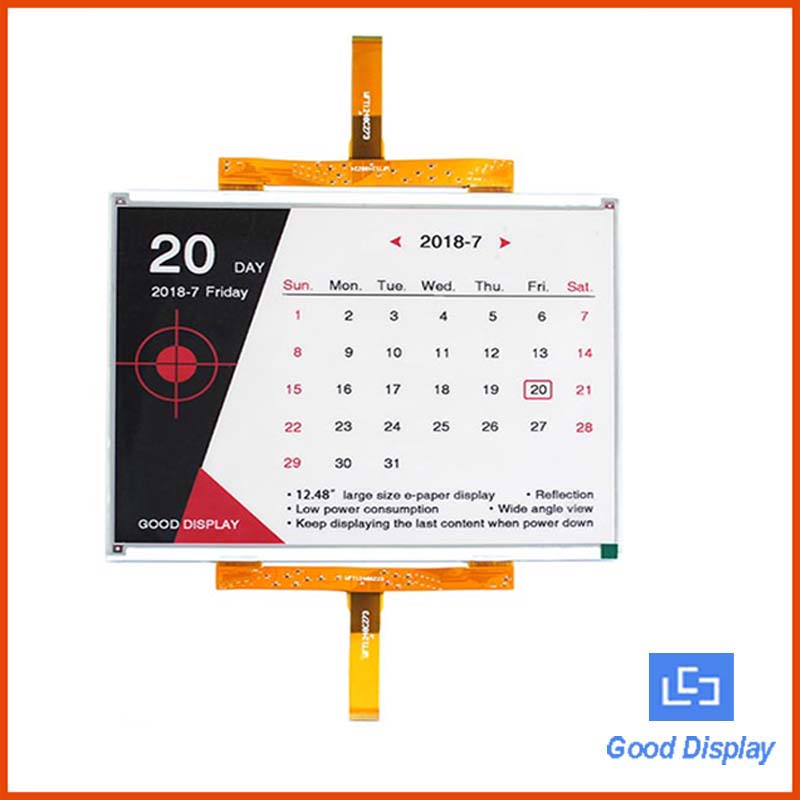

  12.48 inch e-ink screen large e-paper display buy color e-paper black white and red GDEW1248Z95

Product Model: GDEW1248Z95

Outline Dimension: 261.5×211×1.18mm

Dot Pitch: 0.194×0.194mm

Operating Voltage: 3.3v

Front-light: --

Features: 12.48 inch, red color, 1304x984 resolution
