Product Name: 3.71 inch color e-ink display red e-paper screen module GDEH037Z01
Code: 0372-1
Quantity in stock: --
Retail price: --
Unit of measurement: --
Net weight: --
Views : 76

Details

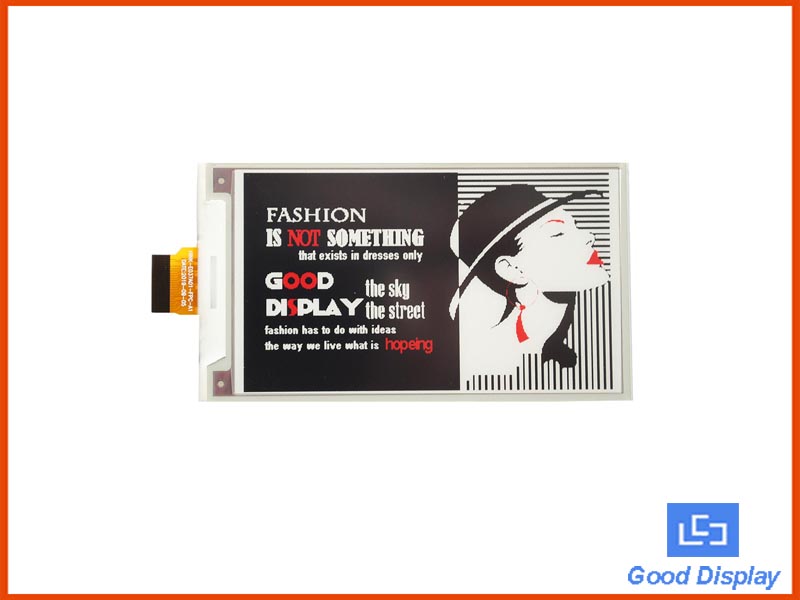

This is a color 3.7 inch e-paper display with 416x240 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform, supports black, white and red.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEH037Z01 is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, smart cards and other related products.

Note: All of 3-color epaper doesn't support partial refesh

Three colors, black, white and red

416x240 resolution

The I2C signal master interface to read built-in temperature sensor.

Development platform available STM32 / Arduino / Raspberry Pi / ESP8266

Part Number	GDEH037Z01
Type	Dot Matrix
Resolution	416x240(DPI:130)

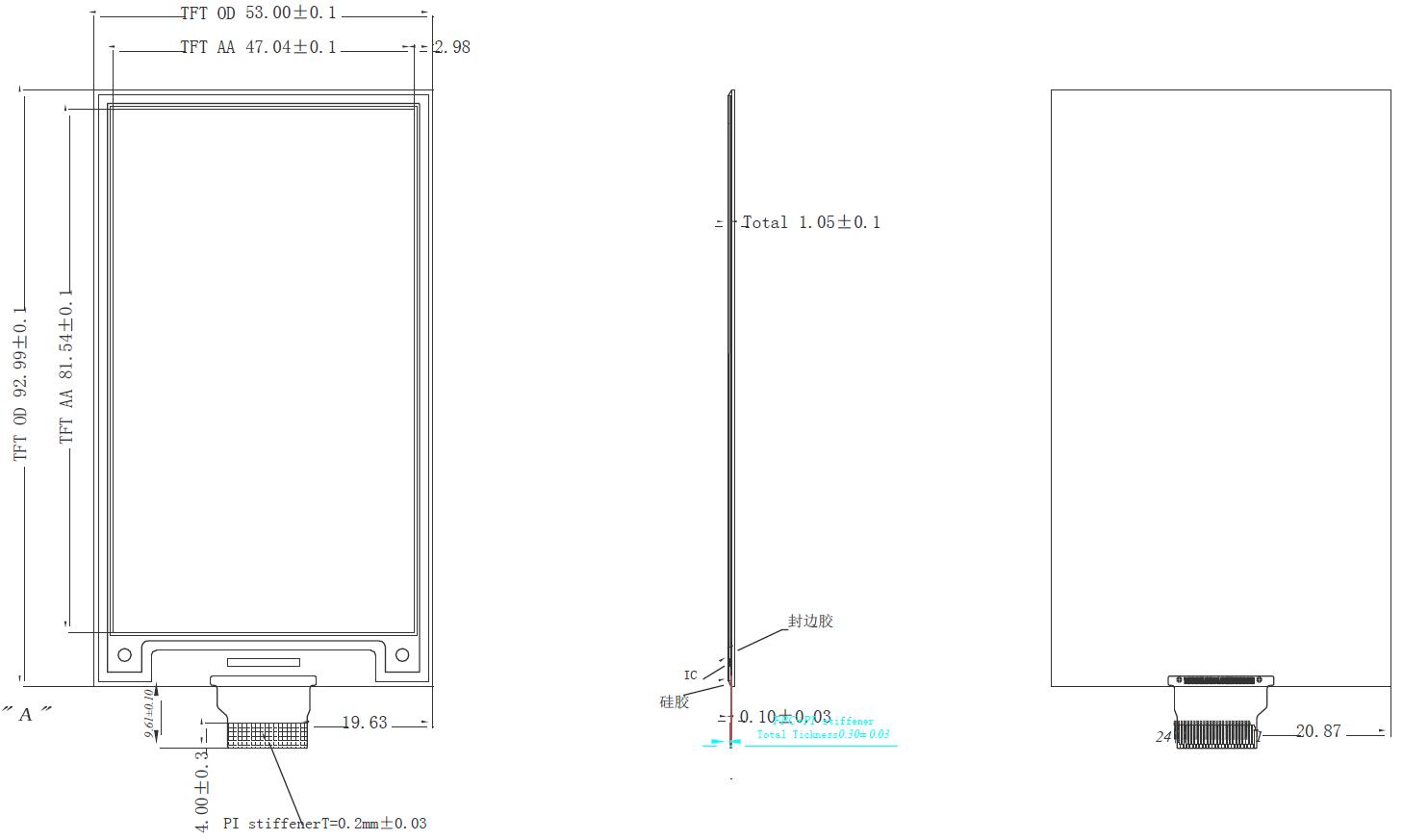

Outline Size(mm)	92.99x53x1.05
Active Size(mm)	81.54x47.04
Pixel Pitch(mm)	0.202x0.203
Operating Temp.	0℃~40℃
Storage Temp.	-25~60℃
Connector	24 Pin FPC, Pitch:0.5mm
Color	Black,White,Red
Interface	SPI
Power Supply(V)	3.3
Power consumption of the refresh(mW)	26.4
Standby power consumption Pc(mW)	0.09
Time of refresh(s)	16
Purchase Online	buyepaper / Amazon

Part Number	Color	Feature	Full refresh Time	T/P(optional)
GDEW0371W7	Black, White	4 Grayscale	4S	√
GDEW0371Z80	Black,White,Red	Three colors	15S	√
GDEH037Z01	Black,White,Red	Three colors	16S	√

Datasheet-E Paper Display，Controller IC,Connector,Source Code

File Type	Description (Downloadable)	Version	Language	Update Date	Size
	GDEH037Z01 Spec.	1.0	English	2020-04-01	1.08MB
	IC driver	1.0	English	2019-07-11	1.71MB
	Connector Spec.	1.0	English	2017-08-11	1.77MB

STM32 Development Board

File Type	Description (Downloadable)	Version	Language	Update Date	Size
	DESPI Specification	1.0	English	2018-07-12	673.62KB
	DESPI-C02-SCH	1.0	English	2018-07-12	701.28KB
	DESPI-M02-SCH	1.0	English	2018-07-12	1.2MB
	STM32 Code	1.0	English	2020-04-01	2.32MB

Arduino Development Board

File Type	Description (Downloadable)	Version	Language	Update Date	Size
	DEArduino Specification	1.0	English	2018-11-28	673.62KB
	DEArduino UNO for EPD_SCH	1.0	English	2018-11-28	462.75KB
	DESPI-C02-SCH	1.0	English	2018-11-28	701.28KB

Rasberry Pi Development Board

File Type	Description (Downloadable)	Version	Language	Update Date	Size
	DESPI Specification	3.0	English	2019-09-12	673.62KB
	DESPI-C03-SCH	1.0	English	2019-09-27	701.28KB
	DESPI-M02-SCH	1.0	English	2018-07-12	1.2MB

ESP8266

File Type	Description (Downloadable)	Version	Language	Update Date	Size
	ESP8266(C02) Specification	1.0	English	2020-04-02	939.11KB
	ESP8266(C03)Specification	1.0	English	2020-04-02	1.04MB
	ESP8266 for EPD-SCH	1.0	English	2020-01-07	72.68KB
	D ESPI-C02-SCH	1.0	English	2018-07-12	72.68KB

File Type	Description (Click to see more)	Language	Update Date
	The Principle and Advantage of E-Paper	English	2012-10-25
	Matrix E-ink Display -- FAQ	English	2017-08-16
	Matrix E-ink Display -- FAQ Pt. 2	English	2018-11-13
	Product list-1	English	2018-09-29
	Product list-2	English	2018-09-29
	Product list-3	English	2018-09-29
	RoHS	English	2018-12-27

	Warranty	English	2016-10-25
	Precautions for E-paper Display	English	2019-03-11
