E-paper display development demo kit, drive board Arduino, Support Wi-Fi, ESP8266(C02)
  • Product Name: E-paper display development demo kit, drive board Arduino, Support Wi-Fi, ESP8266(C02)
  • Code: ESP8266
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 309

ESP8266(C02) for EPD development kit supports Arduino platform for development procedures. This development kit is mainly to assist customers to develop e-paper display projects faster and smoother. It supports driving Good Display's black-white SPI E-paper Display and three-color (black, white and red/Yellow) Good Display ‘s SPI E-paper Display: 1.54'', 2.04'', 2.13'', 2.6'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83'' and 7.5''.

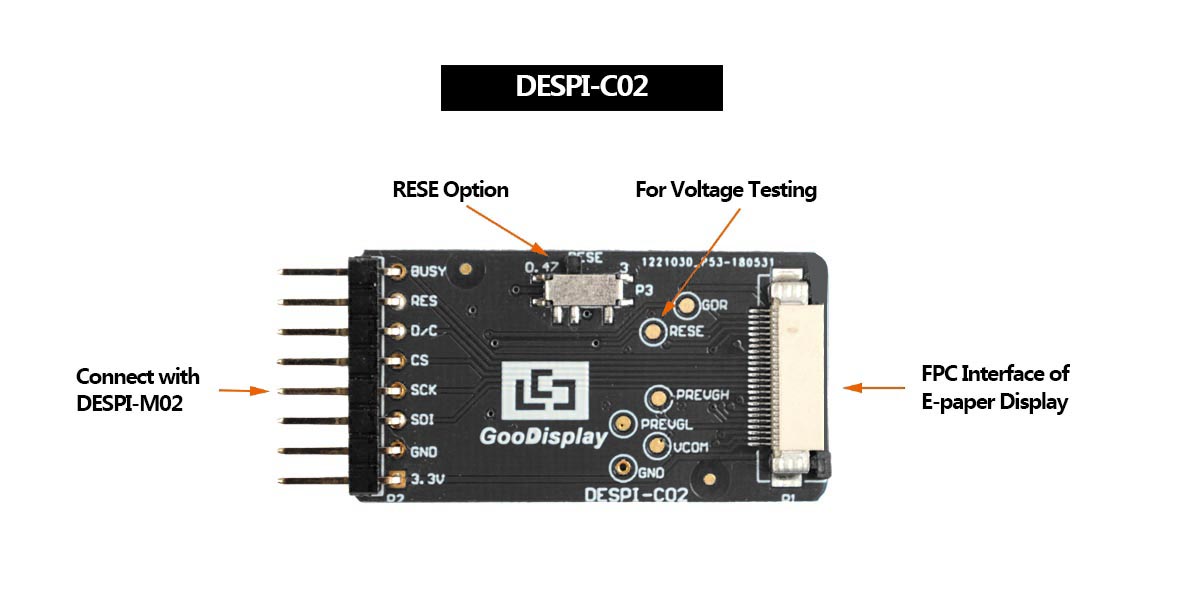

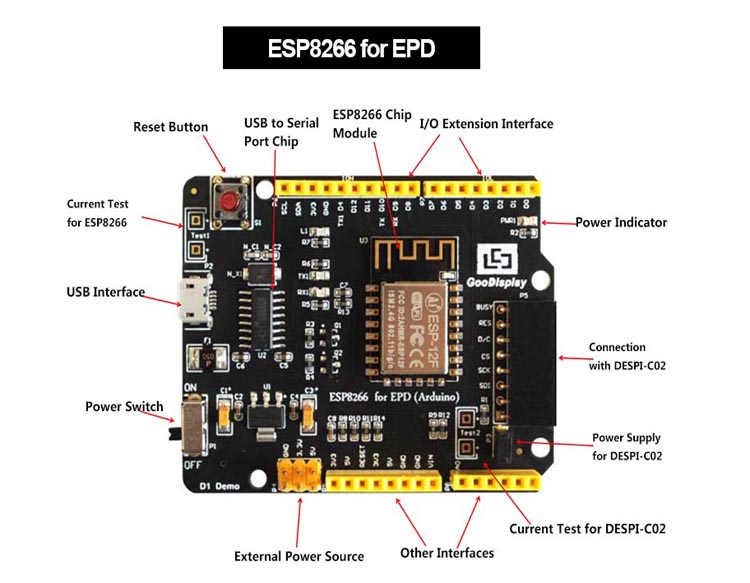

The ESP8266(C02) for E-Paper Display development kit supports Wi-Fi, users need to develop by themselves. And it includes the motherboard ESP8266 for EPD and the adapter board DESPI-C02.







· For SPI interface e-paper display.
· Supports Arduino platform.
· Supports Wi-Fi, users need to develop by themselves.
· USB interface and power indicator light.
· Come with helpful development demo kit with resources and manual (STM32 platform )






Part Number

ESP8266(C02)

MCU

Arduino

Function

Drive E-paper Display

Outside Dimension
70mmx54mm (ESP8266 for EPD)
41mmx22mm (DESPI-C02)

Power Interface

USB Interface

Main Function

Driving e-paper display

Sample Code

Available (please contact sales)

Operating Temp

-20~70℃
Additional Function  USB to serial port, indicator light, keys, current detection and so on.

Purchase Online

 buyepaper













RESE To 0.47 Ω：
2.2.13 inch E-Paper Display:  GDEW0213T5,GDEW0213Z16,GDEW0213I5F,GDEW0213C38,GDEW0213V7LT
3.2.6 inch E-Paper Display: GDEW026T0,GDEW026Z39
4.2.7 inch E-Paper Display:  GDEW027W3  GDEW027C44
5.2.9 inch E-Paper Display:  GDEW029T5,GDEW029Z10,GDEW029I6F,GDEW029C32
6.3.71 inch E-Paper Display: GDEW0371W7,GDEW0371Z80
7.4.2 inch E-Paper Display:  GDEW042T2,GDEW042Z15,GDEW042C37
8.5.83 inch E-Paper Display:  GDEW0583Z21,GDEW0583C64,GDEW0583Z83
9.7.5 inch E-Paper Display:  GDEW075Z09,GDEW075C21,GDEW075C64,GDEW075Z08

RESE To 3 Ω：
1.1.54 inch E-Paper Display:GDEH0154D67,GDEM0154E97LT
2.2.04 inch E-Paper Display: GDE021A1
3.2.13 inch E-Paper Display: GDEH0213D30LT,GDEH0213B73
4.2.9 inch E-Paper Display: GDEH029A1,GDEH029D56LT
5.5.83 inch E-Paper Display: GDEW0583T7
6.7.5 inch E-Paper Display: GDEW075T8



File Type

Description (Downloadable)

                  Version

               Language

       Update Date

       Size
 ESP8266(C02) Specification

                   1.0

               English

       2020-04-02

      939.11KB

ESP8266 for EPD-SCH

                    1.0                English        2020-01-07         72.68KB
 DESPI-C02-SCH                    1.0                English        2018-07-12         72.68KB







File Type

Description (Downloadable)

                  Version

               Language

       Update Date

       Size

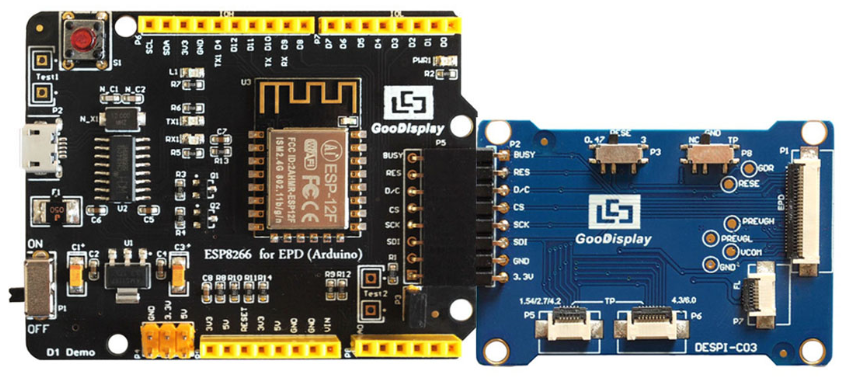

 ESP8266(C03)Specification                  1.0              English       2020-04-02       1.04MB

 ESP8266 for EPD-SCH

                    1.0                English        2020-01-07         72.68KB
DESPI-C03-SCH                    1.0                English        2018-07-12         72.68KB




File Type

Description (Downloadable)

                  Version

               Language

       Update Date

       Size

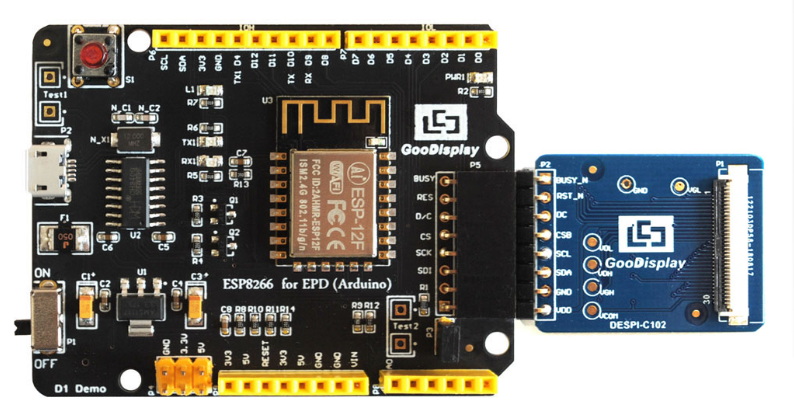

ESP8266(C102_30P) Specification                  1.0              English       2020-04-02       1.04MB

 ESP8266 for EPD-SCH

                    1.0                English        2020-01-07         72.68KB
DESPI-C102-SCH                    1.0                English        2018-07-12         72.68KB
