Your present location:Home >> 2-Color EPD >> 2.13 inch e-paper display flexible partial refresh 4 Grayscale eink epaper GDEW0213I5F
  • Product Name: 2.13 inch e-paper display flexible partial refresh 4 Grayscale eink epaper GDEW0213I5F
  • Code: 02135
  • Quantity in stock: --
  • Retail price:
  • Unit of measurement: --
  • Net weight: --
  • Views : 2508

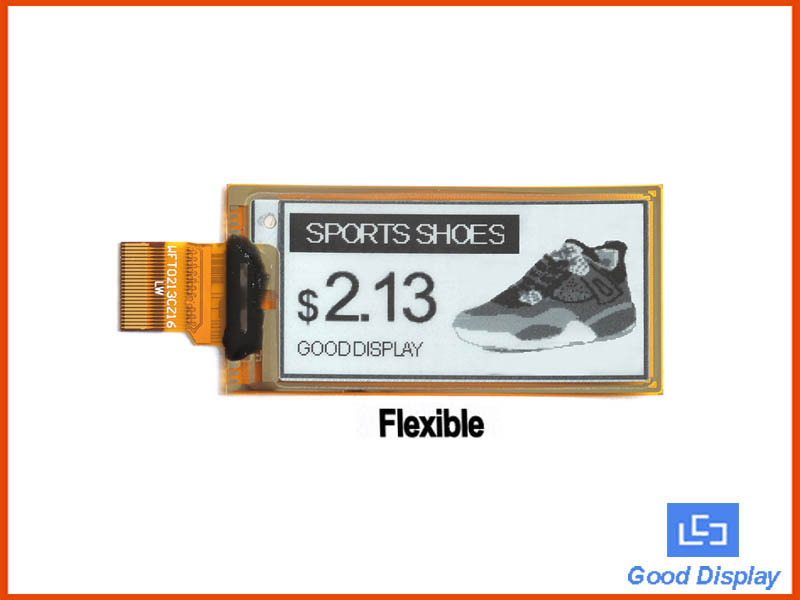

This is a flexible 4 Grayscale E ink Epaper display panel, 2.13 inch 212*104 resolution, square, 24 pins FPC connection,
communicating via SPI interface and IC driver with partial refresh. Its waveform is stored in on-chip OTP,
and it is  available in COG package IC thickness 108μm, supports black and white. Support partial refresh, fast update and no flicker update.

In view of so many advantages:ultra-thin, not fragile, ultra low power consumption,ultra wide viewing angle
GDEW0213I5F is a very good choice for applications like:

Smart tags
Smart watch
And other related products.



· Flexible, Support small bending
· 4 Grayscale
· Ultra-thin, not fragile
· Support partial refresh, fast update and no flicker update.
· The I2C signal master interface to read built-in temperature sensor.
· Come with helpful development resources and manual (STM32 platform )
· Development platform available STM32 / Arduino / Raspberry Pi / ESP8266







Part Number

GDEW0213I5F

Type

Dot Matrix

Resolution

212*104

Outline Size(mm)

59.2*29.2*0.3

Active Size(mm)

48.55*23.71

Pixel Pitch(mm)

0.229*0.228

Operating Temp.

0℃~+50℃

Storage Temp.

-25℃~+70℃

Connector

24 pin FPC

Color

Black, White

Max Grayscale

4

Current of the refresh(mA) 8
Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.0165
Time of refresh(s) 3
Time of partial refresh(s) 0.3
Purchase Online

buyepaper / AliExpress











Part Number

Color

Resolution

Feature

Full refresh time

GDEH0213B72 Black, White 250x122 Partial refresh 2s
GDEH0213B73 Black, White

  250x122

Partial refresh 4s
GDEW0213I5F Black,White 212x104 Flexible,Partial refresh,4 Grayscale 3s
GDEH0213D30LT Black,White 212x104 Low temperature 3s
GDEW0213V7LT Black,White 212x104 Low temperature 3s
GDEW0213Z16 Black,White,Red 212x104 Three colors 16s
GDEW0213C38 Black,White,Yellow 212x104 Three colors 18s
GDEH0213Z98 Black,White,Red 250x122 Three colors 13s
GDEW0213T5 Black, White 212x104 Partial refresh,4 Grayscale 3s









File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEW0213I5F Spec.

1.1

English

2018-11-14

2.2MB

Connector Spec. 1.0 English 2018-07-31 1.77MB
IC Driver 1.0 English 2020-01-21 854.43KB
Picture Production and Bitmap Convert 1.0 English 2020-01-21 506.2KB
