Your present location:Home >> 2-Color EPD >> 2.13 inch e-paper display ultra low temperature E ink panel SPI interface GDEW0213V7LT

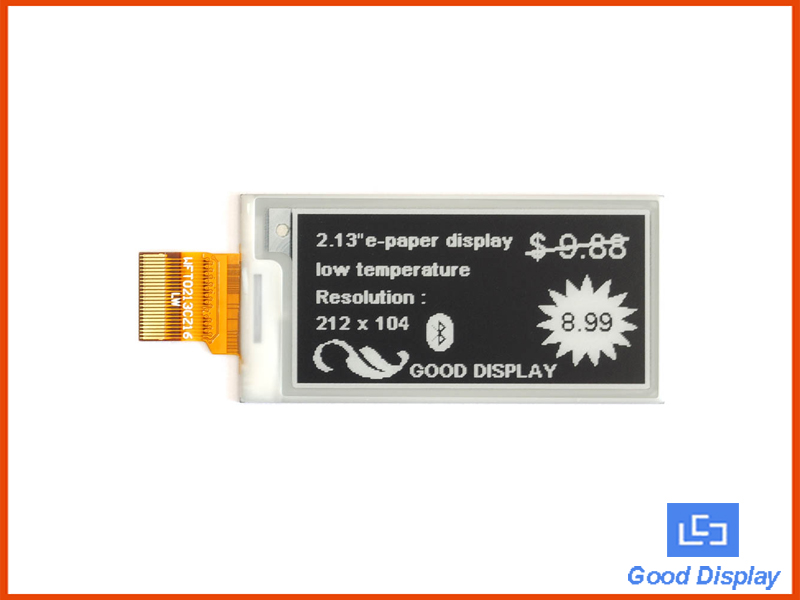

  • Product Name: 2.13 inch e-paper display ultra low temperature E ink panel SPI interface GDEW0213V7LT
  • Code: 02138
  • Quantity in stock: 10
  • Retail price:
  • Unit of measurement: --
  • Net weight: --
  • Views : 1330


This is ultra low temperature (-25~10℃) 2.13 inch e-paper display with 212*104 resolution. It has 24 pins FPC connection, optional FPC connector, also communicated via SPI interface, with embedded controller(COG package) and on-chip stored waveform,  supports black and white.
In view of so many advantages: ultra low temperature, near 180 degree view angle, readable under sunlight, GDEW0213V7LT is a very good choice for applications like:

· Shelf label
· Smart tags
· Wearable devices
· Smart home application
· Industrial instrument
· Smart cards
· And other related products that in cold area.






· Ultra low temperature: -25℃ to 10℃
· Its refresh time is shorter than GDEH0213D30LT, but GDEH0213D30LT's effects is better than it.
· The I2C signal master interface to read built-in temperature sensor.
· Come with helpful development demo kit with resources and manual (STM32 platform)
· Development platform available STM32 / Arduino / Raspberry Pi / ESP8266





Part Number

GDEW0213V7LT

Type

Dot Matrix

Resolution

212*104

Outline Size(mm)

29.2*59.2*0.98

Active Size(mm)

23.71*48.55

Pixel Pitch(mm)

0.229*0.228

Operating Temp.

-25~10℃

Storage Temp.

-25~70℃

Connector

24 Pin FPC

Max Grayscale

2

Color

Black,White

Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.0165
Time of refresh(s) 3
Time of partial refresh(s) 0.3
Purchase Online

buyepaper AliExpress







Part Number

Color

Resolution

Feature

Full refresh time

GDEH0213B72 Black, White 250x122 Partial refresh 2s
GDEH0213B73 Black, White

  250x122

Partial refresh 4s
GDEW0213I5F Black,White 212x104 Flexible,Partial refresh,

4 Grayscale

3s
GDEH0213D30LT Black,White 212x104 Low temperature 3s
GDEW0213V7LT Black,White 212x104 Low temperature 3s
GDEW0213Z16 Black,White,Red 212x104 Three colors 16s
GDEW0213C38 Black,White,Yellow 212x104 Three colors 18s
GDEH0213Z98 Black,White,Red 250x122 Three colors 13s
GDEW0213T5 Black, White 212x104 Partial refresh,4 Grayscale 3s







File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEW0213V7LT Specifications

1.1

English

2018-10-31

2.2MB

IC Driver 1.0 English 2018-07-31 825.53KB
Connector Spec. 1.0 English 2018-07-31 1.77MB
Picture Production and Bitmap Convert 1.0 English 2020-01-22 509.87KB









STM32 Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-07-12

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-07-12         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
GDEW0213V7LT STM32 Code               1.0            English      2019-10-22      2.32MB
Partial code               1.0            English      2019-04-30      2.01MB

If you want to buy the set: e-paper and matched demo, please click here: With Drive Board



Arduino Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 DEArduino Specification

                   1.0

               English

       2018-11-28

      673.62KB

DEArduino UNO for EPD_SCH                1.0            English      2018-11-28       462.75KB

DESPI-C02-SCH

                   1.0                English        2018-11-28         701.28KB



Rasberry Pi Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   3.0

               English

       2019-09-12

      673.62KB

DESPI-C03-SCH

                   1.0                English        2019-09-27         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB



ESP8266



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 ESP8266(C02) Specification

                   1.0

               English

       2020-04-02

      939.11KB

 ESP8266(C03)Specification                  1.0              English       2020-04-02       1.04MB

 ESP8266 for EPD-SCH

                   1.0                English        2020-01-07         72.68KB
 DESPI-C02-SCH                    1.0                English        2018-07-12         72.68KB
