5.83 inch high resolution 648x480, e-paper display, black and white, e-ink screen, GDEW0583T8
![](../imageRepository/3e8d8727-b214-4e2d-9b38-17c34fab748a.png)

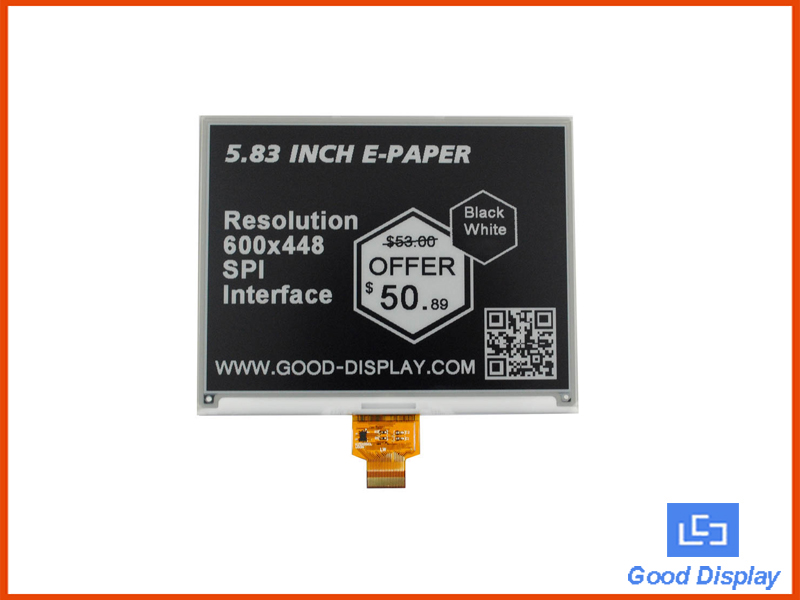

This is an E ink E paper display panel, 5.83 inch, 600x448 resolution, square, 24 pins FPC connection, optional FPC
connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform,
supports black and white.
In view of so many advantages: ultra low power consumption, near 180 degree viewing angle, readable under sunlight,
GDEW0583T7 is a very good choice for applications like:
· Shelf label
· Smart tags
· Smart home application
· Industrial
· Instrument
· And other related products.
· 600x448 resolution
· The I2C signal master interface to read built-in temperature sensor.
· Comes with helpful development resources and manual (STM32 platform )
Part Number
|
GDEW0583T7
|
Screen Size
|
5.83 inch
|
Resolution
|
600(H)*448(V)
|
Outline Size(mm)
|
125.40(H)*99.50(V)*1.18(D)
|
Active Size(mm)
|
118.80(H)*88.26(V)
|
Pixel Pitch(mm)
|
0.198*0.197
|
Pixel Configuration
|
Rectangle
|
Weight
|
28 + 0.5
|
Color
|
Black,White
|
Current of the refresh(mA) |
8 |
Power consumption of the refresh(mW) |
26.4 |
Standby power consumption Pc(mW) |
0.0165 |
Time of refresh(s) |
3 |
Purchase Online
|
buyepaper / AliExpress
|
Part Number
|
Color
|
Resolution |
Feature
|
Full refresh time |
GDEW0583T7 |
Black, White |
600x448 |
SPI interface |
3s |
GDEW0583Z21 |
Black,White,Red |
600x448 |
Three colors,SPI interface |
15s |
GDEW0583C64 |
Black,White,Yellow |
600x448 |
Three colors,SPI interface |
25s |
GDEW0583Z83 |
Black,White,Red |
648x480 |
Three colors,High resolution |
12s |
GDEW0583T8 |
Black, White |
648x480 |
High resolution |
4s |
