Now we have another type of 2.13 inch red e-paper, click the picture to know more:
![](../imageRepository/e08cfb99-0d7b-406d-ab1c-f1453d5d4235.jpg)
2.13 inch black,white and red e-paper display, three colors, e-ink, GDEH0213Z98
![](../imageRepository/3e8d8727-b214-4e2d-9b38-17c34fab748a.png)

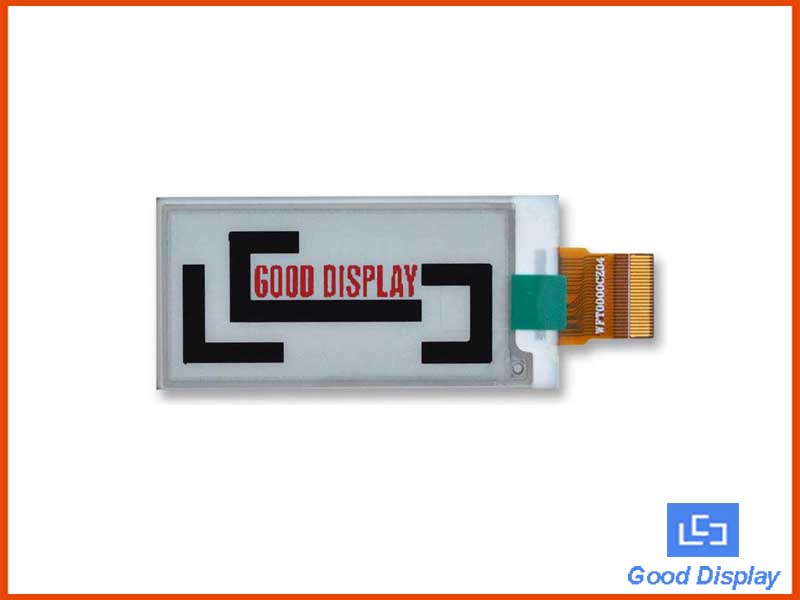

The display is a TFT active matrix electrophoretic display, with interface and a reference system design. The
2.13” active area contains 212×104 pixels, and has 1-bit black/white and highlight red full display capabilities.
An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC,
SRAM, LUT, VCOM and border are supplied with each panel.
Note: All of 3-color epaper doesn't support partial refesh.
Three colors, black, white and red
212x104 resolution
The I2C signal master interface to read built-in temperature sensor.
Model
|
GDEW0213Z16
|
Dimension
|
59.2(H)×29.2 (V) ×0.98(D)mm
|
Screen Size
|
2.13inch
|
Resolution
|
212(H)×104(V)
|
Pixel Pitch
|
0.229×0.228mm
|
Active Area
|
48.55 (H)×23.80 (V)mm
|
Weight
|
3.36±0.5
|
Current of the refresh(mA) |
8 |
Power consumption of the refresh(mW) |
26.4 |
Standby power consumption Pc(mW) |
0.0165 |
Time of refresh(s) |
16 |
Purchase Online |
buyepaper / AliExpress
|
![](../imageRepository/b1e3bdff-6e13-48f9-83ca-5b89a3374838.png)
Part Number |
Color |
Resolution |
Feature |
Full refresh time |
GDEH0213B72 |
Black, White |
250x122 |
Partial refresh |
2s |
GDEH0213B73 |
Black, White |
250x122 |
Partial refresh |
4s |
GDEW0213I5F |
Black,White |
212x104 |
Flexible,Partial
refresh,4 Grayscale |
3s |
GDEH0213D30LT |
Black,White |
212x104 |
Low temperature |
3s |
GDEW0213V7LT |
Black,White |
212x104 |
Low temperature |
3s |
GDEW0213Z16 |
Black,White,Red |
212x104 |
Three colors |
16s |
GDEW0213C38 |
Black,White,Yellow |
212x104 |
Three colors |
18s |
GDEH0213Z98 |
Black,White,Red |
250x122 |
Three colors |
13s |
GDEW0213T5 |
Black, White |
212x104 |
Partial refresh,4 Grayscale |
3s |
