Your present location:Home >> 3-Color EPD >> 5.83 inch e-paper display| three colors GDEW0583Z21

One similar product(higher resolution) has been launched, click here for more information.

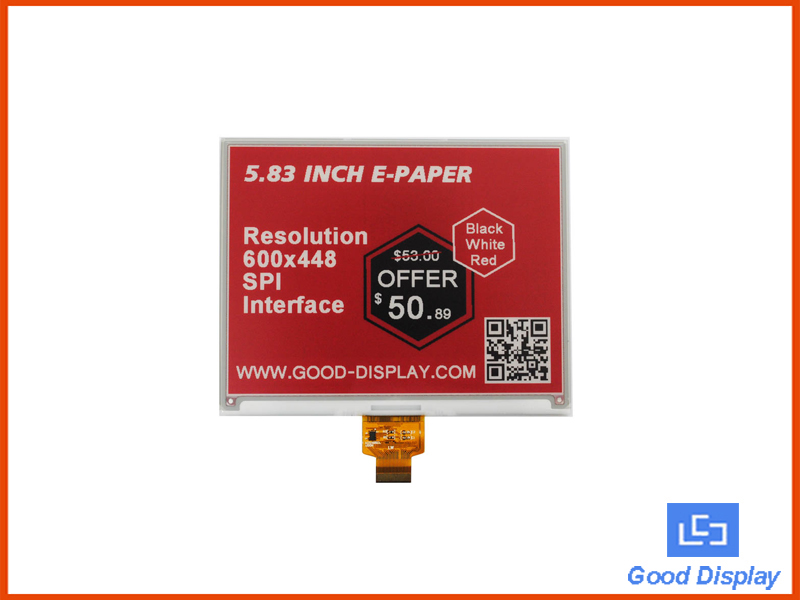

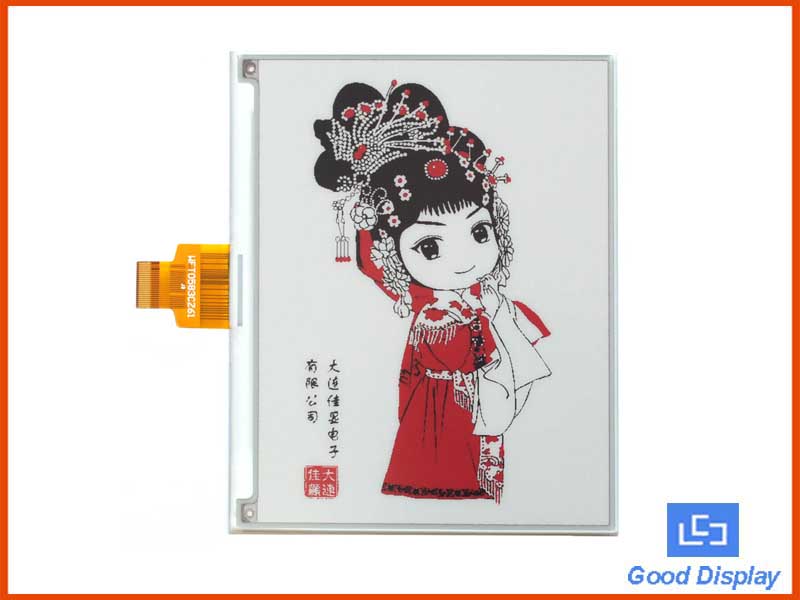

This is an E ink E paper display panel, 5.83 inch, 600x448 resolution, square, 24 pins FPC connection,

optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and

on-chip stored waveform, supports black, white and red.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable

under sunlight, GDEW0583Z21 is a very good choice for applications like:

· Shelf label

· Smart tags

· Smart home application

· Industrial instrument and other related products.

Note: All of 3-color epaper doesn't support partial refesh.

· Three colors, black, white and red

· 600x448 resolution

· The I2C signal master interface to read built-in temperature sensor.

· Comes with helpful development resources and manual (STM32 platform )

· Development platform available STM32 / Arduino / Raspberry Pi / ESP8266

Part Number	GDEW0583Z21
Type	Dot Matrix
Resolution	600(H)*448(V)
Outline Size(mm)	125.40(H)99.50(V)1.18(D)
Active Size(mm)	118.80(H)*88.26(V)
Pixel Pitch(mm)	0.198*0.197
Operating Temp.	0~40C
Storage Temp.	-25~60C
Max Grayscale	2
Color	Black, White, Red
Interface	SPI
Current of the refresh(mA)	8
Power consumption of the refresh(mW)	26.4
Standby power consumption Pc(mW)	0.0165
Time of refresh(s)	15
Purchase Online	buyepaper /AliExpress

Part Number	Color	Resolution	Feature	Refresh time
GDEW0583T7	Black, White	600x448	SPI interface	3s
GDEW0583Z21	Black,White,Red	600x448	Three colors,SPI interface	15s
GDEW0583C64	Black,White,Yellow	600x448	Three colors,SPI interface	25s
GDEW0583Z83	Black,White,Red	648x480	Three colors,High resolution	12s
GDEW0583T8	Black, White	648x480	High resolution	--

File Type	Description (Downloadable)	Version	Language	Update Date	Size
	GDEW0583Z21 Spec.	1.1	English	2018-11-14	2.2MB
	IC Driver	1.0	English	2018-07-31	825.53KB
	Connector Spec.	1.0	English	2018-07-31	1.77MB
	Picture Production and Bitmap Convert	1.0	English	2020-02-04	508.75KB

STM32 Development Board

If you want to buy the set: e-paper and matched demo, please click here: With Drive Board / With Connect Board

Arduino Development Board

Rasberry Pi Development Board

ESP8266

File Type	Description (Click to see more)	Language	Update Date
	The Principle and Advantage of E-Paper	English	2012-10-25
	Matrix E-ink Display -- FAQ	English	2017-08-16
	Matrix E-ink Display -- FAQ Pt. 2	English	2018-11-13
	Product list-1	English	2018-09-29
	Product list-2	English	2018-09-29
	Product list-3	English	2018-09-29
	RoHS	English	2018-12-27

	Warranty	English	2016-10-25
	Precautions for E-paper Display	English	2019-03-11
