Your present location:Home >> 3-Color EPD >> 2.9 inch colorful e-paper display, black, white and red, e-ink screen module, GDEH029Z92
  • Product Name: 2.9 inch colorful e-paper display, black, white and red, e-ink screen module, GDEH029Z92
  • Code: 02902-1
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 155

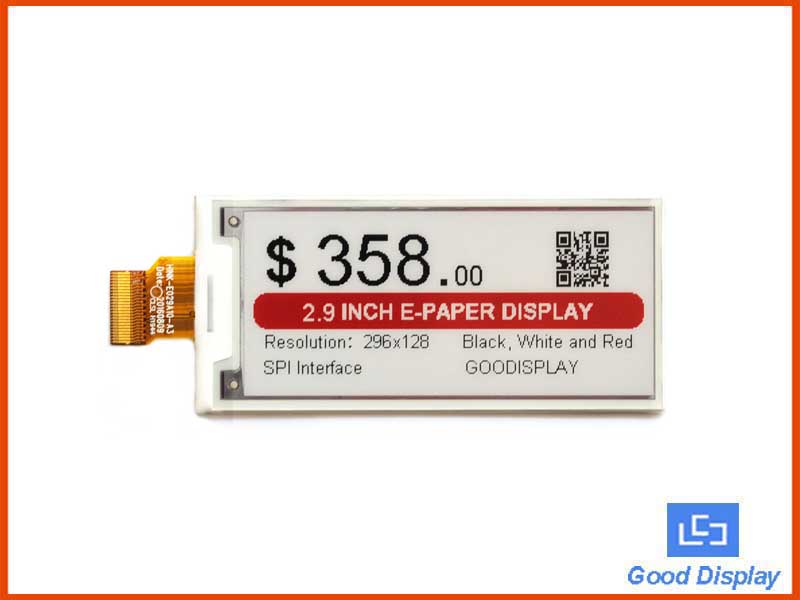

This is an E ink E paper display panel, 2.9 inch, 128*296 resolution, square, 24 pins FPC connection, optional

FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored

waveform,  supports black, white, and red three-color.



In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight,

GDEH029Z92 is a very good choice for applications like shelf label, smart tags, smart home application, industrial

instrument and other related products.



Note: All of 3-color epaper doesn't support partial refesh.





· Three colors, black, white and red.

· 128x296 resolution.

· SPI interface, 24 pin connectors

· The I2C signal master interface to read built-in temperature sensor.

· Development platform available STM32 / Arduino / Raspberry Pi / ESP8266

· Come with helpful development resources and manual (STM32 platform )







Model

GDEH029Z92

Type

Dot Matrix

Resolution

296x128

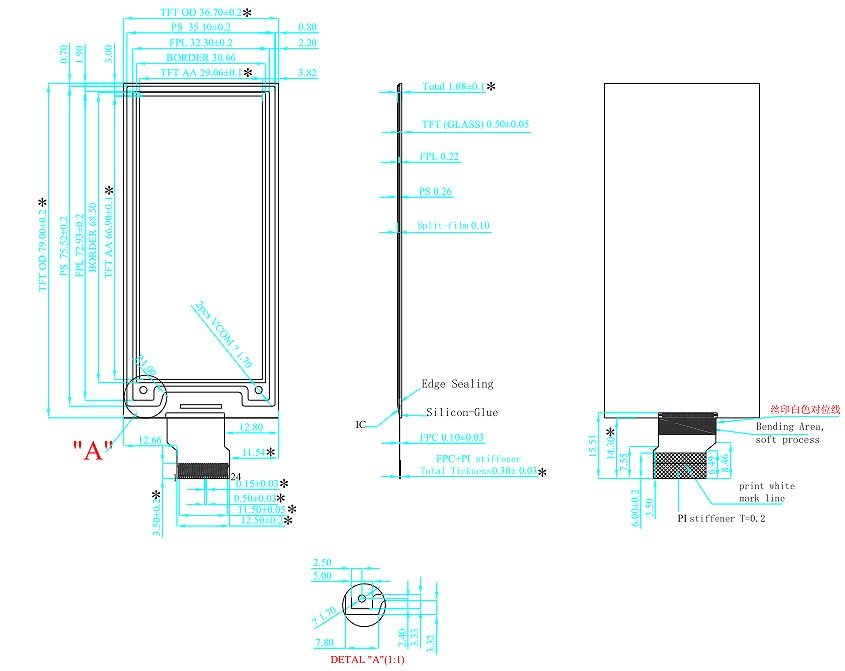

Outline Size(mm)

79x36.7x1.08

Active Size(mm)

66.9x29.06

Pixel Pitch(mm)

0.227x0.226

Operating Temp.

0℃~40℃

Storage Temp.

-25℃~60℃

Connector

24 Pin

Max Grayscale 2
Color Black,White,Red
Power consumption of the refresh(mW) 9.9
Standby power consumption Pc(mW) 0.0099
Time of refresh(s) 13
Purchase Online buyepaper











Part Number

Color

Feature

Full refresh time
GDEH029A1 Black, White Partial refresh 3s
GDEW029Z10 Black,White,Red Three colors 16s
GDEW029C32 Black,White,Yellow Three colors 18s
GDEH029D57LT Black, White Ultra low temperature 2s
GDEW029I6F Black, White Flexible, Partial refresh, 4 Grayscale 3s
GDEW029T5 Black,White Partial refresh, 4 Grayscale 3s
GDEH029Z92 Black,White,Red Three colors 13s
