Your present location:Home >> OLED Display >> 0.91" OLED Display Module
  • Product Name: 0.91" OLED Display Module
  • Code: 90091
  • Quantity in stock:
  • Retail price:
  • Unit of measurement:
  • Net weight: 0.0100
  • Views : 472

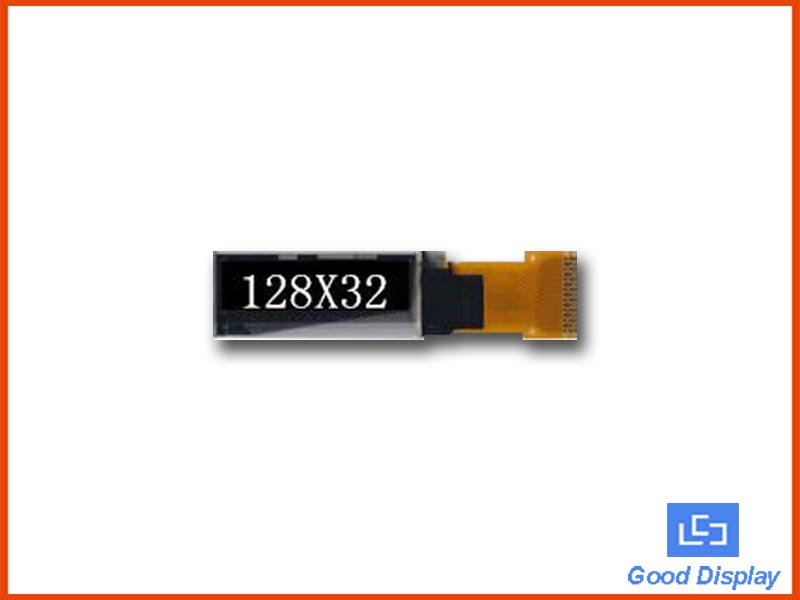

GDO0091B is the graphic OLED display module made of 128x32 individual blue OLED pixels,diagonal is only 0.91 inch.The controller ic SSD1306, communicates via 4-wire serial spi interface only,thanks to controller's built-in voltage generation,only a single 2.8V power supply is needed. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the soldering type,no need connector.Just solder the FPC on your PCB directly.















Buy it Now

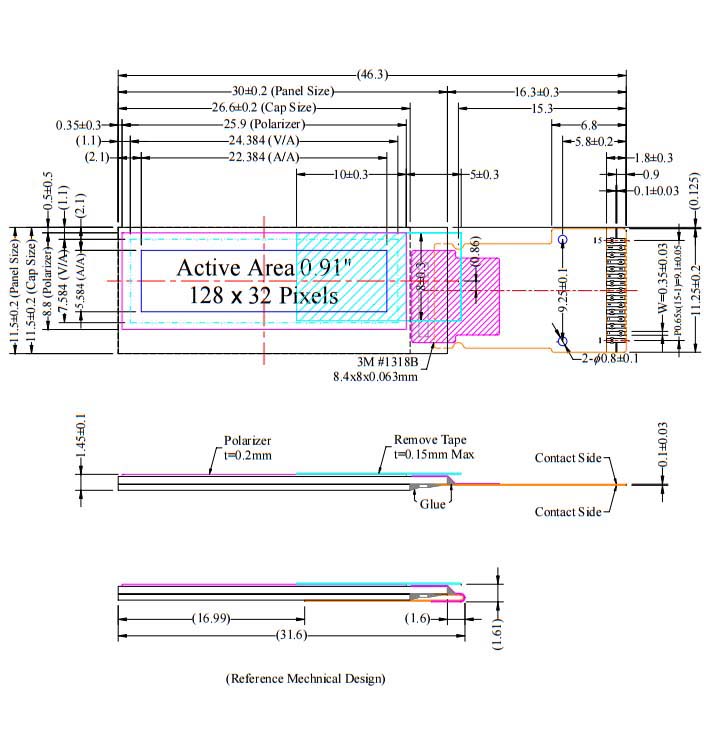

Outline Dimension

30.0(W)x11.50(H)x1.45(T)mm

Visual Area

24.38x7.58mm

Active Area

22.384(W)x5.584(H)mm

Display Format

128x32 Dots

Interface

I2C

Appearance

Blue on Black

Display Type

OLED

Brightness

--

Viewing Angle Range

Left:80.0 , Right:80.0 , Up:80.0 , Down:80.0 degree

Operating Temperature

-30~70

Storage Temperature

-40~80

Power Supply

2.8V

IC or Equivalent

SSD1306

Touch Panel Optional

NO

Sunlight Readable

NO







File Type
Documents Name (Downloadable)
Version
Language
Update Date
File Size
1.0
English
2015-03-03
1MB



















If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry





download attachments : GDO0091B Spec 【查看】
