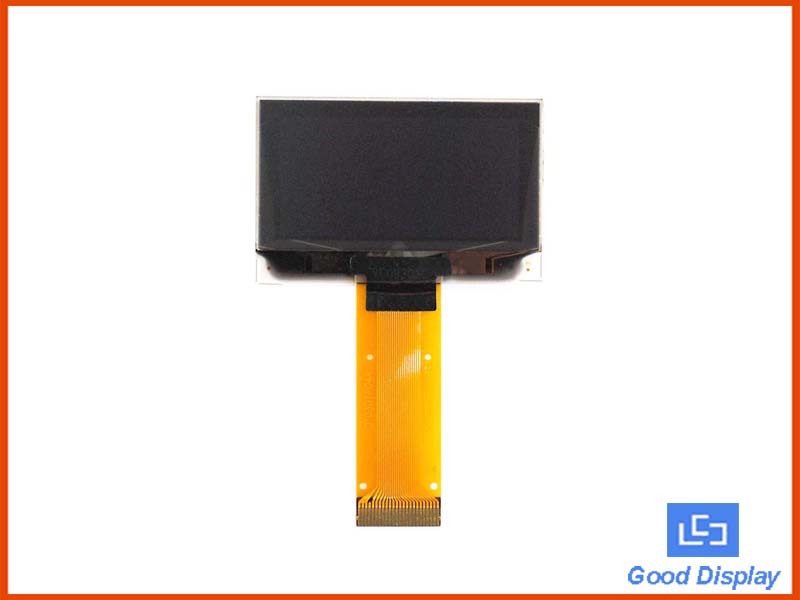

1.54 inch White OLED Display Module GDOA0154W
  • Product Name: 1.54 inch White OLED Display Module GDOA0154W
  • Code: 90900
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 396



This is a white OLED display panel, 1.54 inch with 128*64 pixels. The controller IC SPD0301
communicates via 6800/8080 8-bit parallel and I2C/4-wire serial interface.

This OLED display possessing the excellent characteristics such as autoluminescence, wide
angle of view, wide temperature range becomes the ideal choice for instruments and apparatus.







· Autoluminescence.
· Ultra low power consumption.
· Wide temperature range
· Come with helpful manual







Part Number

GDOA0154W

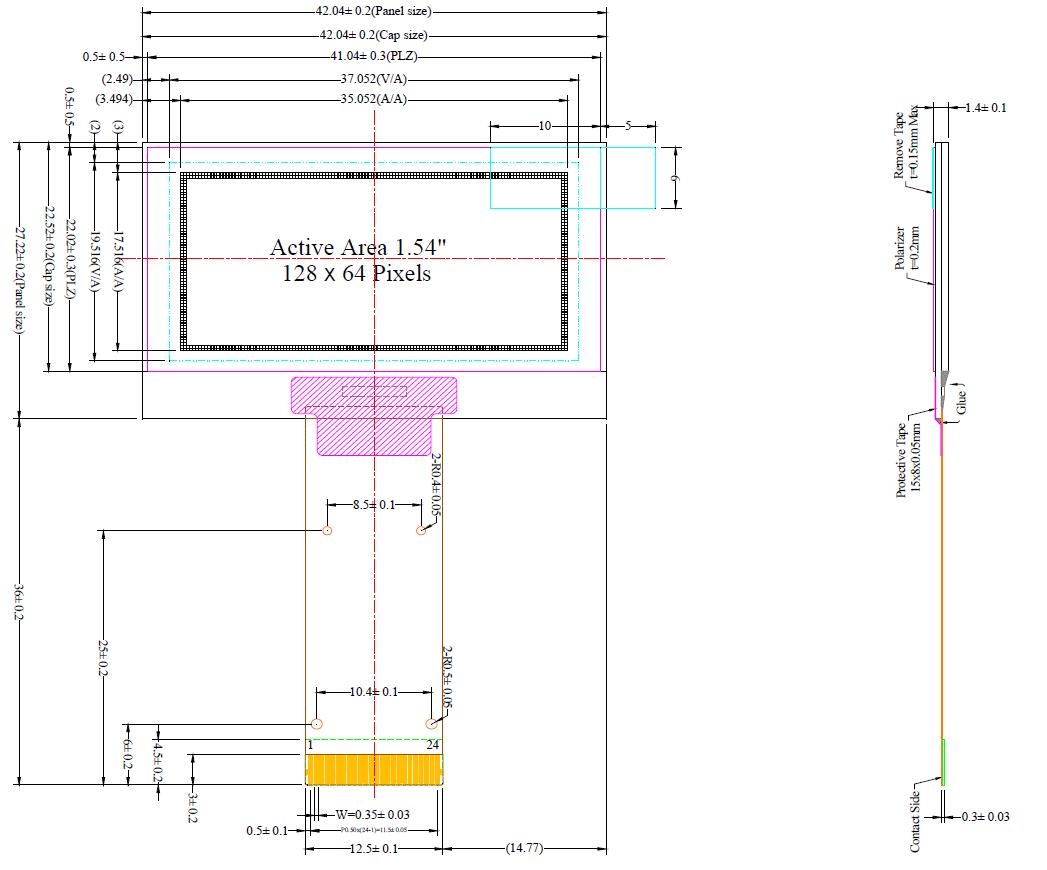

Outline Dimension

42.04*27.22*1.4(mm)

Visual Area

37.052*19.516(mm)

Active Area

35.052*17.516(mm)

Pixel Pitch

0.274*0.274(mm)
Pixel Size 42.04*27.22*1.4 (mm)

Interface

8-bit 68XX/80XX Parallel, 4-wire SPI, I2 C

IC Package

COG

Display Type

1.54 inch OLED

Brightness

110cd/m2

Viewing Angle Range

160

Operating Temperature

-40℃~70℃

Storage Temperature

-40℃~85℃

Power Supply

2.8V

Driver IC

SPD0301

Display Mode

Passive Matrix

Display Color

Monochrome (White)
Drive Duty 1/64 Duty





Datasheet-E Paper Display，Controller IC,Connector,Source Code



File Type

Description (Downloadable)

 Version

Language

Update Date

Size
GDOA0154W Spe.

1.0

English

2018-05-31

1.04MB
SPD0301_0.1 1.0 English 2018-05-31 1.88MB
