Your present location:Home >> OLED Display >> 0.96" OLED Graphic Display Module GDO096B

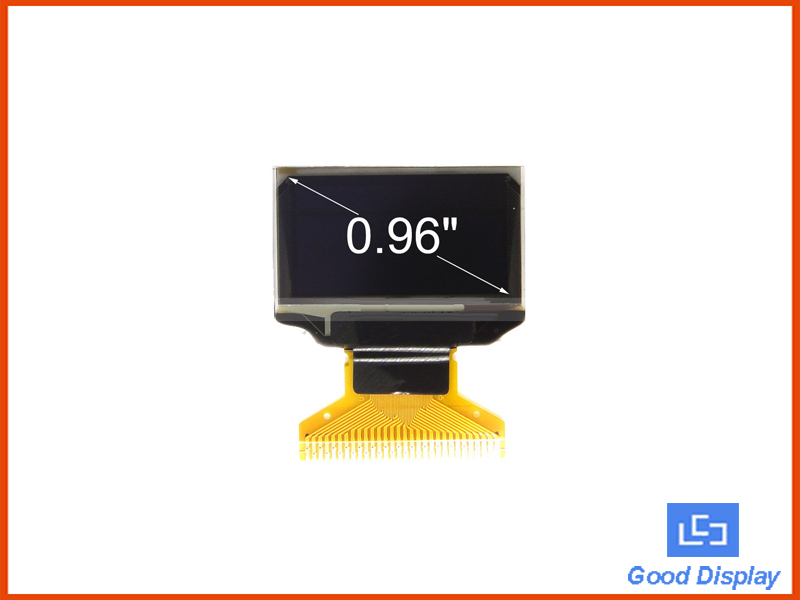

  • Product Name: 0.96" OLED Graphic Display Module GDO096B
  • Code: 90096
  • Quantity in stock:
  • Retail price:
  • Unit of measurement:
  • Net weight: 0.0100
  • Views : 544




GDO0096B is the graphic OLED display module made of 128x64 blue OLED pixels,diagonal is only 0.96 inch.The controller ic SSD1306, communicates via 6800/8080 8-bit parallel and I2C/3-wire/4-wire serial interface,thanks to controller's built-in voltage generation,only a single 2.8V power supply is needed. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the soldering type,no need connector.Just solder the FPC on your PCB directly.










Buy it Now

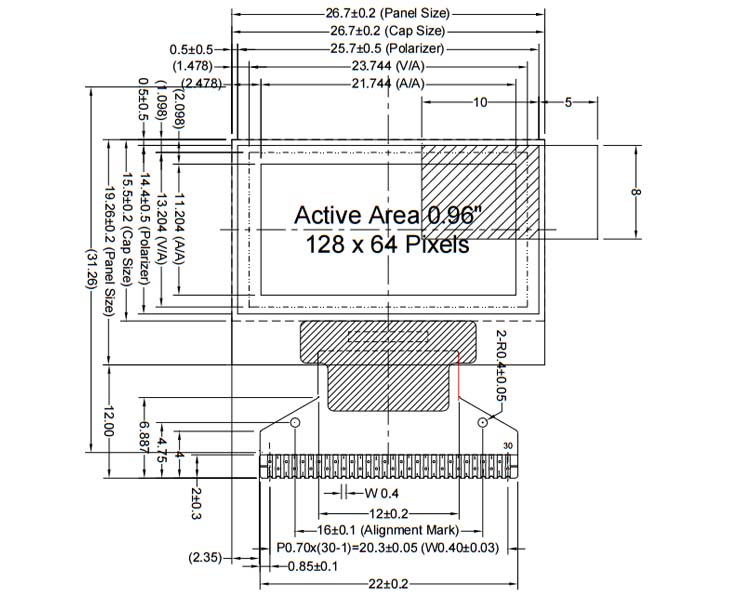

Outline Dimension

26.70(W)x19.26(H)x1.45(T)mm

Visual Area

23.74x12.86mm

Active Area

21.744(W)x10.864(H)mm

Display Format

128x64 Dots

Interface

I2C

Appearance

Blue on Black

Display Type

OLED

Brightness

120cd/m2

Viewing Angle Range

Left:80.0 , Right:80.0 , Up:80.0 , Down:80.0 degree

Operating Temperature

-30~70

Storage Temperature

-40~80

Power Supply

2.8V

IC or Equivalent

SSD1306

Touch Panel Optional

NO

Sunlight Readable

NO












File Type
Documents Name (Downloadable)
Version
Language
Update Date
File Size
1.0
English
2017-03-03
1.08MB
























If you are interested in our products and would like to know more information, please don't hesitate to contact us

download attachments : GDO0096B Spec 【查看】
