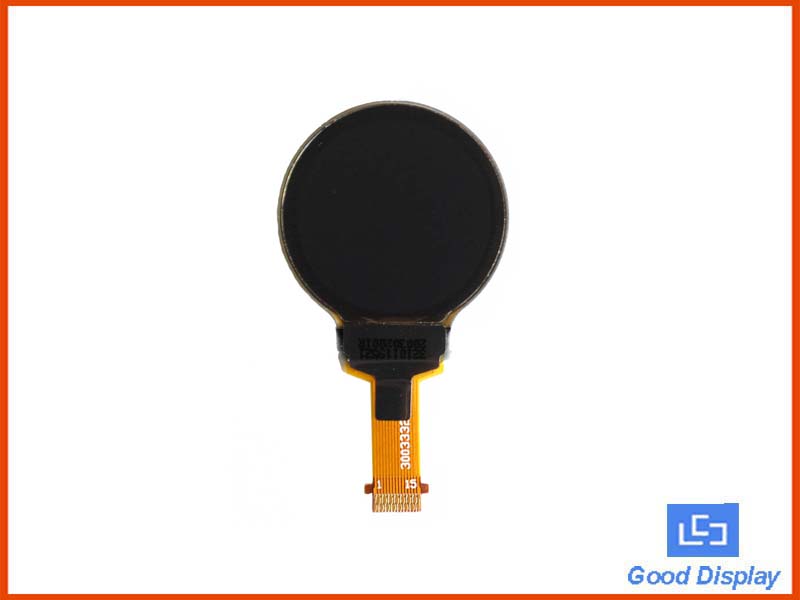

0.75 inch round small white 128x128 dots OLED display GDOR0075W
  • Product Name: 0.75 inch round small white 128x128 dots OLED display GDOR0075W
  • Code: 90075
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 305

This is a white circular OLED display with small molecular organic light emitting diode, 0.75 inch with 128x128 pixels. The drive IC is SSD1327. Its operating temperature is -40℃~70℃, storage temperature is -40℃~85℃. The pixel luminance is 80(Typ) cd/m².

This OLED display possessing the excellent characteristics such as autoluminescence, wide angle of view, wide temperature range becomes the ideal choice for instruments and apparatus. Its circular design is also a good choice for other special application.







· Autoluminescence.
· Circular.
· Ultra low power consumption.
· Wide temperature range
· Come with helpful manual







Part Number

GDOR0075W
Diagonal Size 0.75 inch

Display Mode

Passive Matrix

Display Color

Monochrome (White)

Number of Pixels

128x128
Interface Serial Peripheral Interface, I2C Interface

Driver IC

SSD1327

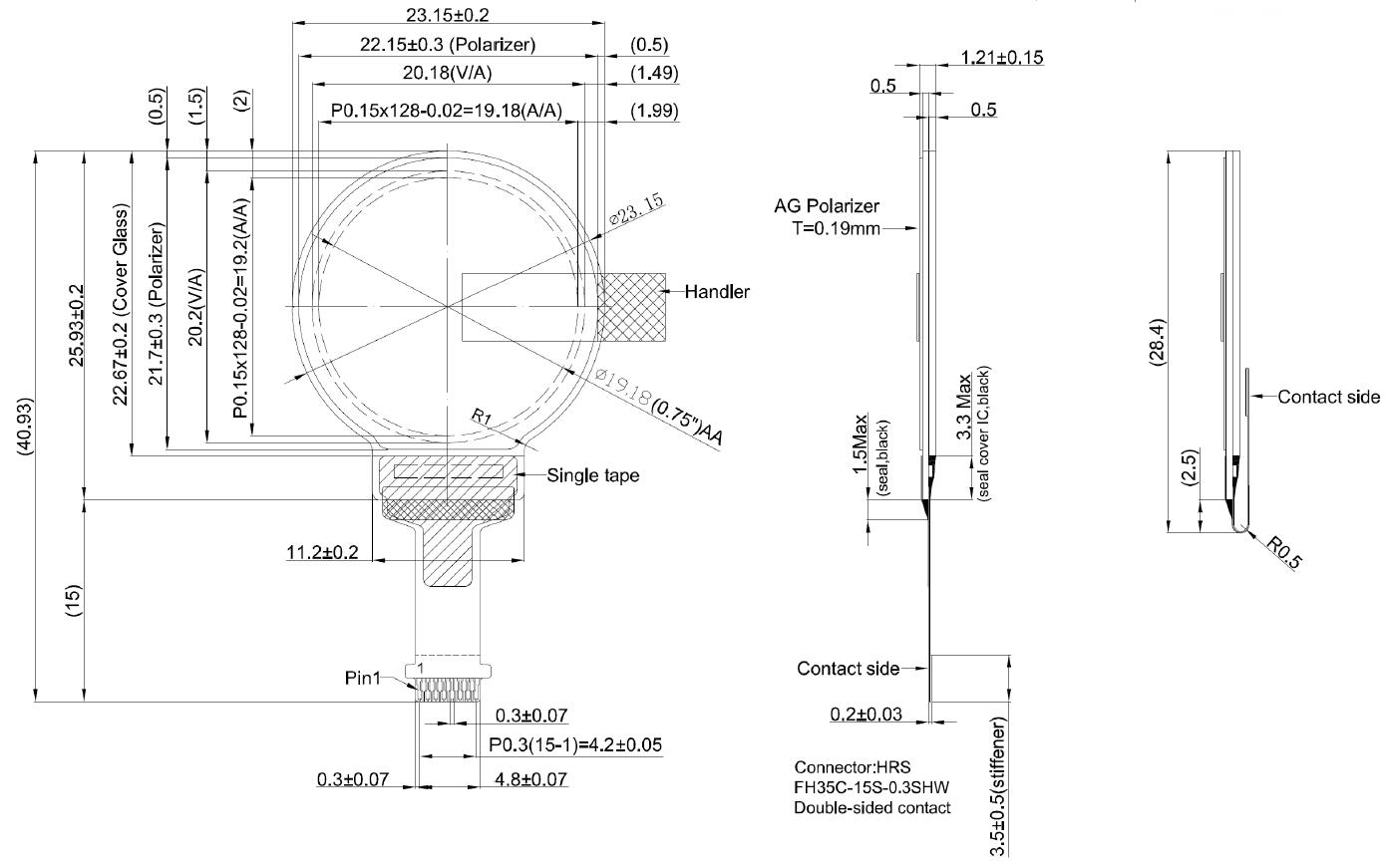

Outlin Dimension

23.15 (W) x 40.93 (H) x 1.21 (T)  (mm)

Active Area

D=19.18 (mm)

Pixel Pitch

0.15 (W) x 0.15 (H)  (mm)

Pixel Size

0.13 (W) x 0.13 (H)  (mm)

Brightness(Typ)

80 cd/m²(Typ)

Operating Temperature

-40℃~70℃

Storage Temperature

-40℃~85℃
Buy Samples buyepaper






Datasheet-E Paper Display，Controller IC,Connector,Source Code



File Type

Description (Downloadable)

 Version

Language

Update Date

Size
GDOR0075W Spec.

1.0

English

2019-06-25

1.04MB
SSD1327 1.0 English 2019-06-25 1.88MB
