Your present location:Home >> OLED Display >> 2.8"OLED Modules 256x64 Graphic Display screen GDO028B
  • Product Name: 2.8"OLED Modules 256x64 Graphic Display screen GDO028B
  • Code: 91000
  • Quantity in stock:
  • Retail price:
  • Unit of measurement:
  • Net weight: 0.0200
  • Views : 1050









GDO0280B is the graphic OLED display module made of 256x64 individual,blue OLED pixels,diagonal is only 2.8 inch.The controller ic SSD1322, communicates via 6800/8080 8-bit parallel and 3-wire/4-wire serial interface. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the connector type,we offer optional zif connector(fpc connector).











Buy it Now

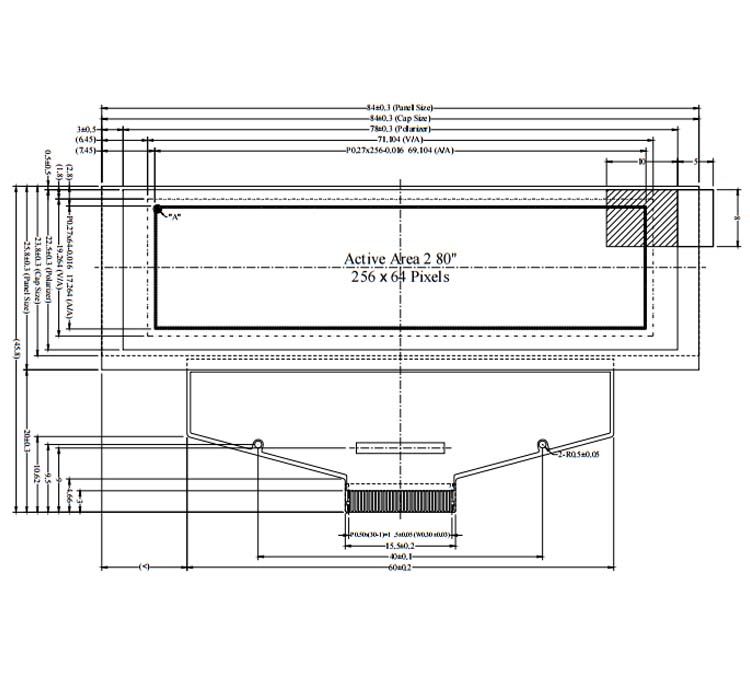

Outline Dimension

84.00(W)x25.80(H)x2.00(T)mm

Visual Area

71.104x19.264mm

Active Area

69.104(W)x17.264(H)mm

Display Format

256x64 Dots

Interface

SPI

Appearance

Blue on Black

Display Type

OLED

Brightness

--

Viewing Angle Range

Left:80.0 , Right:80.0 , Up:80.0 , Down:80.0 degree

Operating Temperature

-30~85

Storage Temperature

-40~90

Power Supply

2.8V

IC or Equivalent

SSD1322

Touch Panel Optional

NO

Sunlight Readable

NO





File Type
Documents Name (Downloadable)
Version
Language
Update Date
File Size
1.0
English
2017-03-03
830.36KB





















If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry





download attachments : GDO0280B Spec 【查看】
