Your present location:Home >> OLED Display >> 0.66"Very Smalll OLED Display Module 64x48 Display Module
  • Product Name: 0.66"Very Smalll OLED Display Module 64x48 Display Module
  • Code: 90066
  • Quantity in stock:
  • Retail price:
  • Unit of measurement:
  • Net weight: 0.0060
  • Views : 985

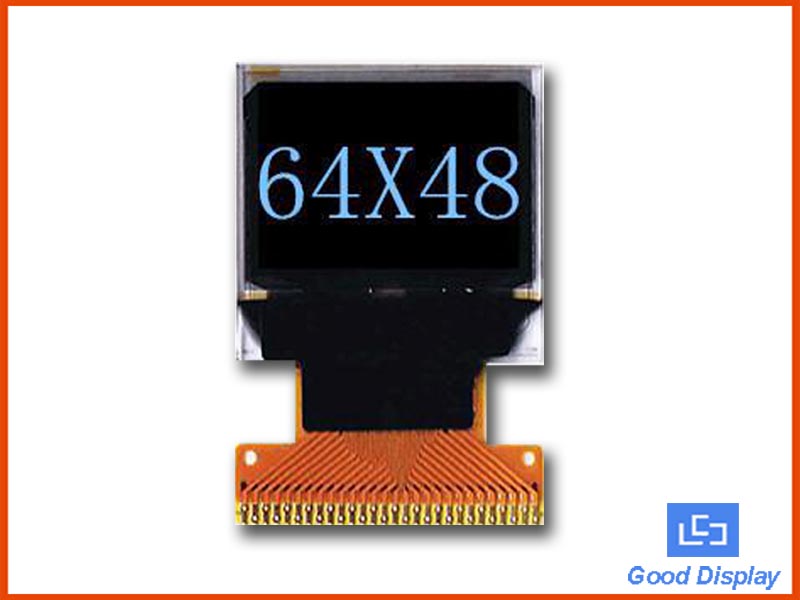

GDO0066B is the graphic OLED display module made of 64x48 individual blue OLED pixels,diagonal is only 0.66 inch.The controller ic SSD1306, communicates via 8080 4-bit/8-bit parallel and I2C/4-wire serial interface,thanks to controller's built-in voltage generation,only a single 2.8V power supply is needed. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the soldering type,no need connector.Just solder the FPC on your PCB directly.










Buy it Now

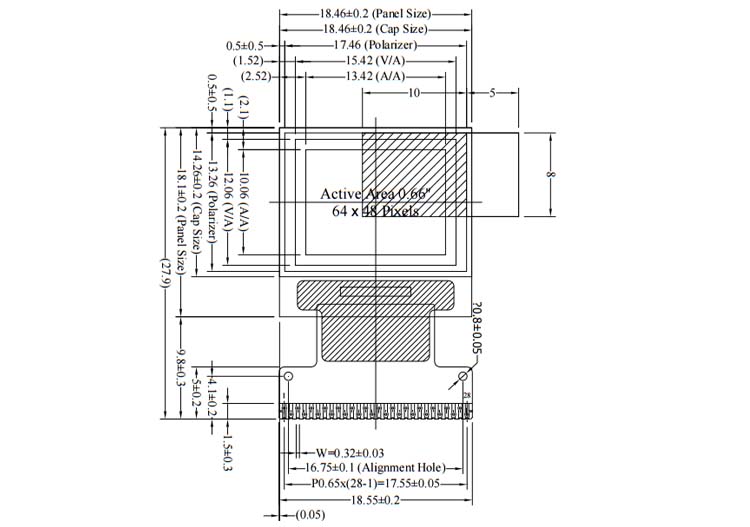

Outline Dimension

18.46(W)x18.10(H)x1.45(T)mm

Visual Area

15.42x12.06mm

Active Area

13.42(W)x10.06(H)mm

Display Format

64x48 Dots

Interface

I2C

Appearance

White on Black

Display Type

OLED

Brightness

--

Viewing Angle Range

Left:80.0 , Right:80.0 , Up:80.0 , Down:80.0 degree

Operating Temperature

-40℃~70℃

Storage Temperature

-40℃~80℃

Power Supply

2.8V

IC or Equivalent

SSD1306

Touch Panel Optional

NO

Sunlight Readable

NO









File Type
Documents Name (Downloadable)
Version
Language
Update Date
File Size
1.0
English
2017-03-03
1.01MB



















If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry





download attachments : GDO0066B Spec 【查看】
