  • Product Name: 1.5"Color OLED Display Module
  • Code: 90099
  • Quantity in stock:
  • Retail price:
  • Unit of measurement:
  • Net weight: 0.0130
  • Views : 1040

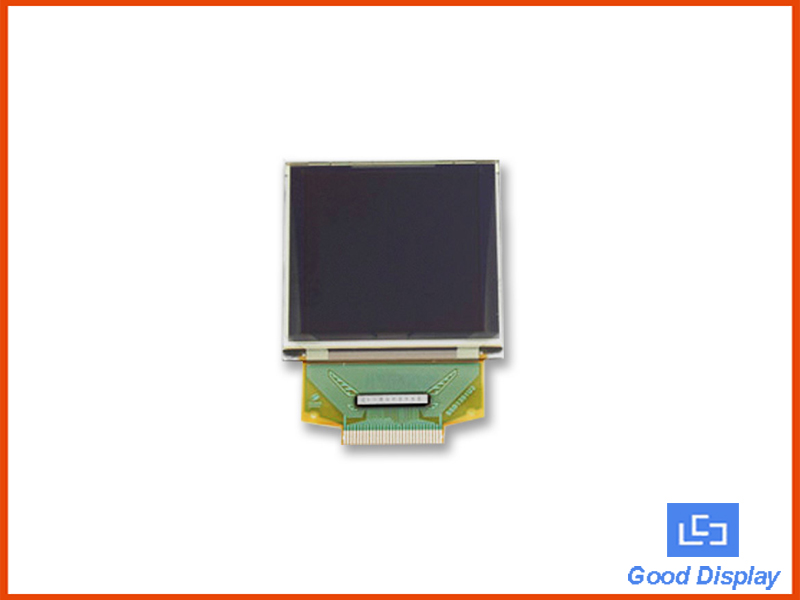

GDO0150C is the color graphic OLED display module made of 128xRGBx128 OLED pixels,diagonal is only 1.5 inch.The controller ic SSD1351, communicates via 6800/8080 8-bit parallel and 3-wire/4-wire serial interface. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the connector type,we offer optional zif connector(fpc connector).










Buy it Now

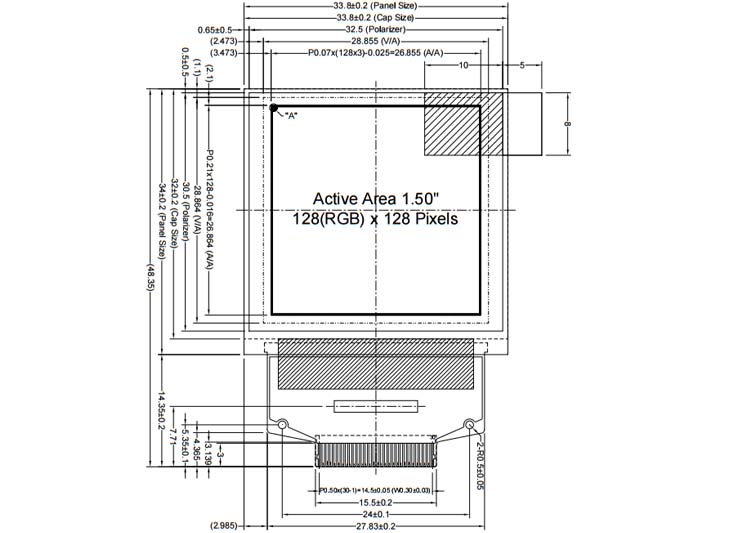

Outline Dimension

33.80(W)x34.00(H)x1.60(T)mm

Visual Area

28.85x28.86mm

Active Area

26.855(W)x26.864(H)mm

Display Format

128x128 Dots

Interface

I2C

Appearance

RGB on Black

Display Type

OLED

Brightness

90.0cd/m2

Viewing Angle Range

Left:80.0 , Right:80.0 , Up:80.0 , Down:80.0 degree

Operating Temperature

-30~70

Storage Temperature

-40~80

Power Supply

2.8V

IC or Equivalent

SSD1351

Touch Panel Optional

NO

Sunlight Readable

NO























If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry





download attachments : GDO0150C Spec 【查看】
