We can provide you with a complete set of ESL tag system:

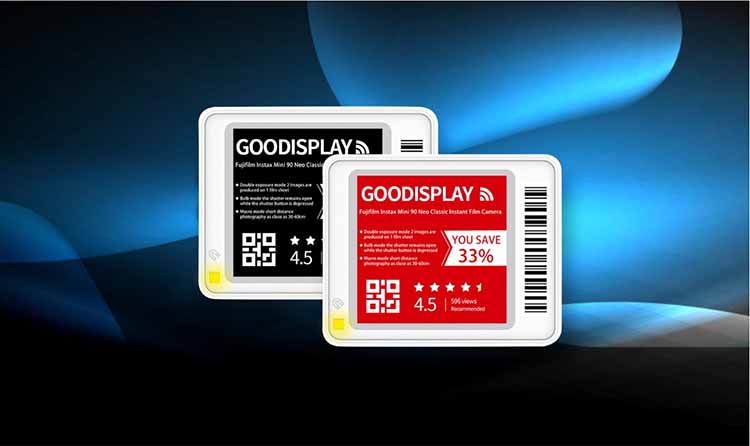

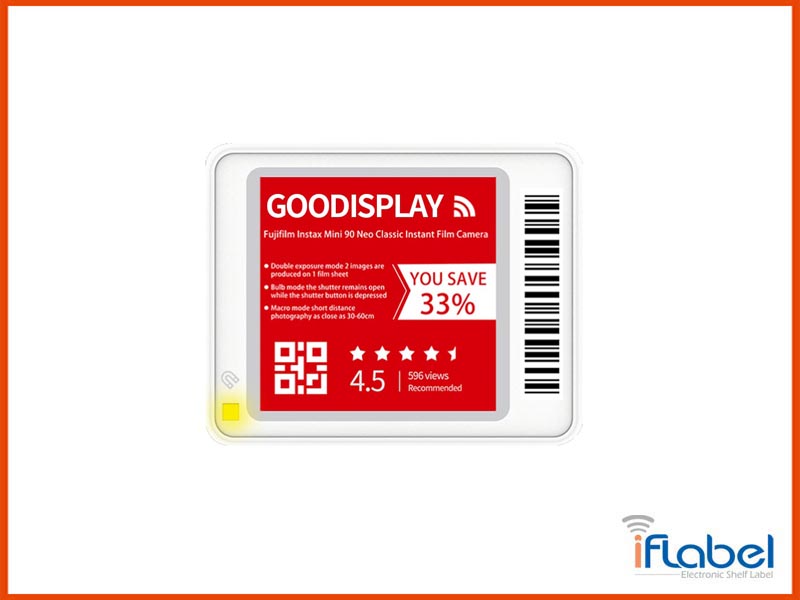

1, 1.54 inch S Serie Electronic label:
It can display multiple pictures, texts and barcodes at the same time. IP67 waterproof, in addition to various general application scenarios such as store, home, medical, conference, etc., it is also suitable for wet environments such as aquatic products.
· 1.54 inch
· Built-in LED light
· Replaceable battery
· Three colors, black, white and red
· Long battery life, 5 years (4 updates/day)
· Real-time update
· Bluetooth 5.0 technology
· Customization
· Better price
· NFC(Optional)
|
Model
|
GDC15S
|
|
Display Technology
|
EPD
|
|
Active Display Area(mm)
|
27x27
|
|
Resolution
|
152x152
|
|
DPI
|
142
|
|
Pixel Colors
|
Red Black and paper white
|
|
Viewing Angle
|
Nealy 180°
|
|
Usable Pages
|
4
|
|
Operating Frequency
|
2.4-2.485GHz
|
|
Standard
|
BLE 5.0
|
|
Encryption
|
128-bit AES
|
|
OTA |
YES
|
|
Battery |
1xCR2450 |
|
Battery Life |
5 years (4 updates/day) |
|
Battery Capacity |
600mAh |
|
LED |
1xRGB |
|
NFC |
YES (Optional) |
|
Operating Temperature |
0~40℃ |
|
Dimensions(mm) |
44.5x35.9x13.7 |
|
Packaging Unit |
200 Labels/box |
|
Certification |
CE, ROHS, FCC,SRRC |
2,Accessories:
①AP: Used in conjunction with an electronic price tag. It can be wall-mounted, Bluetooth + WiFi solution, covering an area of up to 25 meters, and each base station can support 5000 electronic price tags. We have three types of the AP.
②PDA: 4G full Netcom, dual-spread Wi-Fi free switching, GPS positioning, 5 million cameras, 1D 2D scanning, smooth running of various software.
③Other accessories: More accessories that make it easy to use electronic tags in all situations.
3, Cloud system:
Full-featured and easy to operate. For details, please click to download the cloud system operation manual.
