Your present location:Home >> Millimeter Wave Radar >> Biological radar sensor for perception detection, millimeter wave, 24GHz, IR24VDA
Biological radar sensor, millimeter wave, 24GHz, SYH24A1
  • Product Name: Biological radar sensor, millimeter wave, 24GHz, IR24VDA
  • Code: IR24VDA
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 204

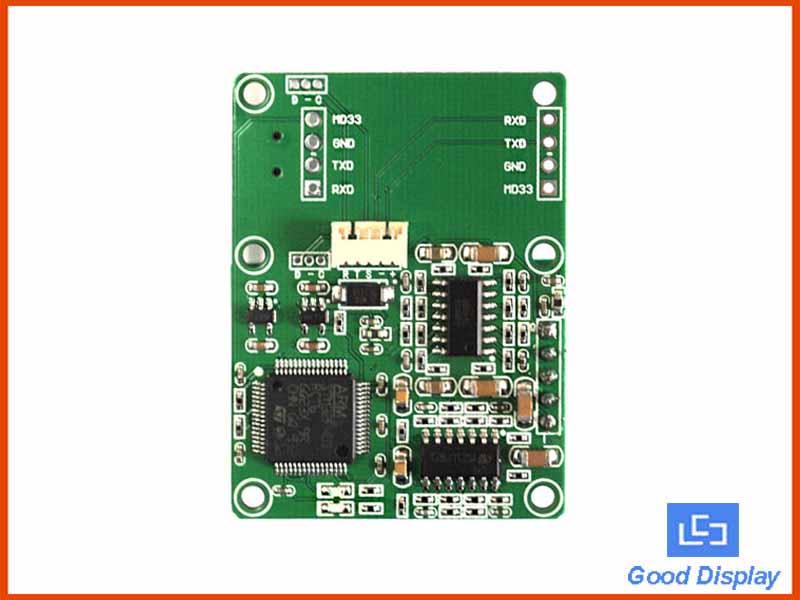

IR24VDA radar module is a radar detection module based on millimeter wave Doppler radar system for human biological motion perception and human biological perception. This module is based on the enhanced Doppler radar signal processing system, and realizes wireless perception of the status of personnel in a specific place through synchronous sensing technology of Doppler parameters of personnel movements and physiological parameters of personnel.

This module has the following working characteristics:
1. This module restricts the detection object to personnel (moving or stationary) and eliminates interference from other inanimate objects in the environment;
2. Can realize the synchronous perception function of moving personnel and stationary personnel;
3. Can effectively eliminate the interference of non-living objects, and can also detect non-living moving objects;
4. The output power of this module is small, and no harm to human body;
5. This module is not affected by environmental factors such as temperature, light and dust. It has the advantages of long detection distance, high sensitivity, and wide application fields.






· 24GHz millimeter wave radar sensor
· 2 × 8 microstrip antenna
· Based on enhanced Doppler radar technology, to realize the human perception function in two-dimensional area;
· Realize the synchronous perception function of moving personnel and stationary personnel;
· Maximum distance for motion perception: ≥20 meters
· Maximum human perception distance: ≥5 meters
· Antenna beam width: 80 ° / 30 °
· Not affected by temperature, humidity, noise, airflow, dust, light, etc., suitable for harsh environments;
· The output power is small, which is not harmful to the human body






Part Number

IR24VDA

Working frequency

24GHz

Moving target sensing distance(max.)

≥20M

Respiratory signal detection distance（max.）

≥5M

Antenna beam width

80°/30°

Power consumption

≤500mW

Operating Temp.

-20℃-60℃

Fall Alarm

YES

Purchase Online

buyepaper

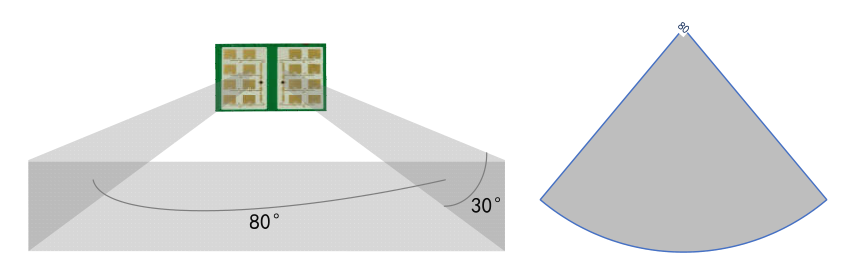

Radar coverage area：















Use bio-radar to determine whether there are people in the room, confirm the situation of people in hotels and family rooms, and connect smart home devices such as TVs and air conditioners. Without involving the privacy of the camera, you can know the daily situation of the elderly living alone.







微米波雷达感应器感应人数

Check the number and distribution of people in the room

A person's breathing and heart rate were measured without contact

Datasheet-E Paper Display，Controller IC,Connector,Source Code

File Type

Description (Downloadable)

 Version

Language

Update Date

Size

1.0

English

2020-03-30

1.68MB
1.0 English 2020-03-30 783.94KB
