Your present location:Home >> Monochrome LCD >> 4 Digits TN positive transflective segment lcd ultra low temperature GDC04212

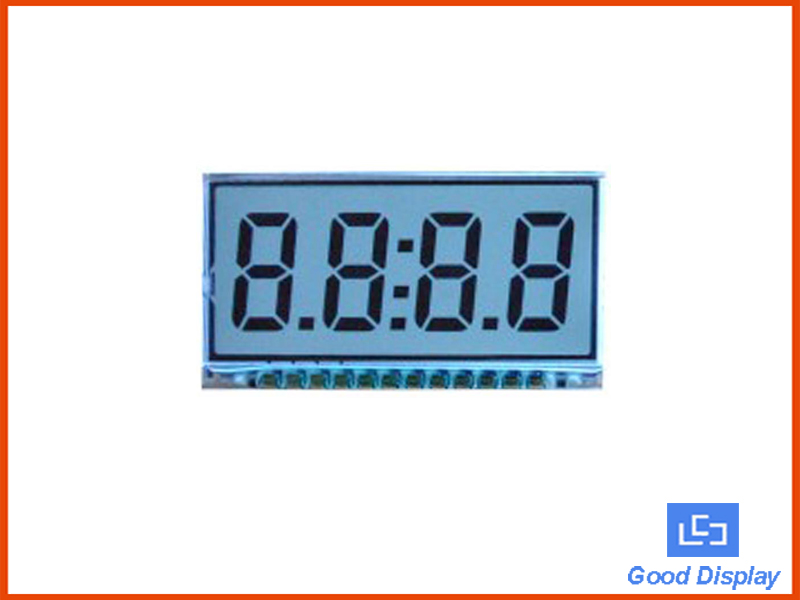

  • Product Name: 4 Digits TN positive transflective segment lcd ultra low temperature GDC04212
  • Code: 043
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 116





This is a TN Positive transflective type 6 o'clock viewing angle Segment LCD with 4 digits and symbols such as alarm, battery and other symbols. Operating temperature is -40℃~80℃, so is suitable for outdoor applications.










· Wide temperature range.(Operating Temp: -40℃~80℃)
· Viewing direction: 6 o'clock
· Multiple symbols suitable for various applications











Part Number

GDC04212

Display Type

TN

Display content

4-digits

Viewing Direction

6:00 o'clock

Outline Dimension

42*23*2.8mm

Active Area

39*16.5mm

Operating Voltage

3.0V

Operating Temp

'-40℃~80℃

Storage Temp

'-45℃~85℃

Drive Mode

1/4 Duty, 1/3 Bias

Display Type TN
Polarizer Mode Transflective, Positive
Connector Pin








File Type
Documents Name (Downloadable)
Version
Language
Update Date
File Size
1.0
English
2019-03-18
40.79KB







1. This product comes with a one-year warranty. Buyers must contact us first for the exchange within the warranty period.
2. All the products will be 100% tested before delivery.
3. Our warranty does not extend to any products that are physically damaged or are not under normal operating conditions as a result of misuse or improper installation on the buyer's part.
4. We will provide a Returned Merchandise Authorization (RMA) Number for each item that needs returning. We do not accept the returns without a RMA number.
5. The returns should be returned with our original packages.
6. Defective products must be returned within 30 days from the RMA issuing date. Otherwise, no replacement will be made.
7. Customers must contact us first for the return address.
8. No refund is accepted after 30 days of receipt.
9. The returns made for non-defective merchandise will be charged a up to 30% restocking fee.
10. In all cases, buyers pay for the shipping fees at their own cost to return products for exchange or refund. We will be responsible for the postage of replacements.
11. The refund will be made upon receipt of the return item. After we receive the product, we inspect it to determine the cause of any defect, then update by email with our findings. This process usually takes five business days.
