Your present location:Home >> 2-Color EPD
Product Image Product Name Description

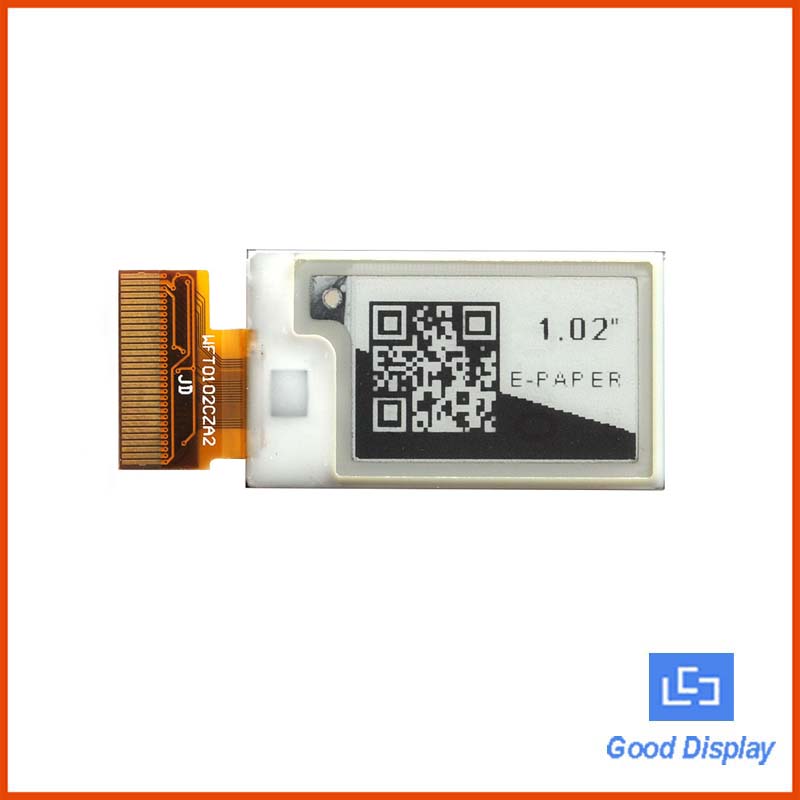

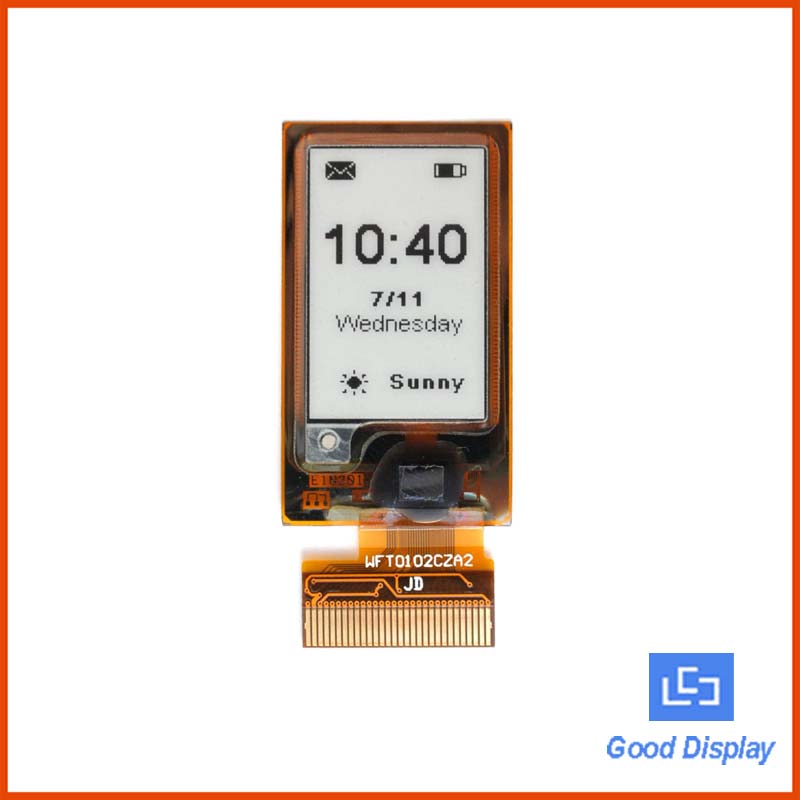

  1.02 inch flexible e-paper display small mini e-ink screen module GDEW0102I3F

Product Model: GDEW0102I3F

Outline Dimension: 32.57×18.6×0.3mm

Dot Pitch: 0.175×0.17mm

Operating Voltage: 3.3v

Front-light: --

Features: mini size, flexible, ultra-thin, partial refresh

  1.02 inch mini partial refresh e-paper display panel, GDEW0102T4

Product Model: GDEW0102T4

Outline Dimension: 32.57x18.6x0.98mm

Dot Pitch: 0.175x0.17mm

Operating Voltage: 3.3v

Front-light: --

Features: mini size, 1.02 inch, partial refresh

  1.43 inch e-paper display wearable graphic electronic paper screen GDEH014TT1

  Product Model: GDEH014TT1

  Outline Dimension: 18.3(H)×42.7(V)×0.607(D)mm

  Dot Pitch: 0.113 (H)×0.113 (V)mm

  Operating Voltage: 3.3 V

  Front-light: --

  Features: Wearable electronic paper screen, flexible

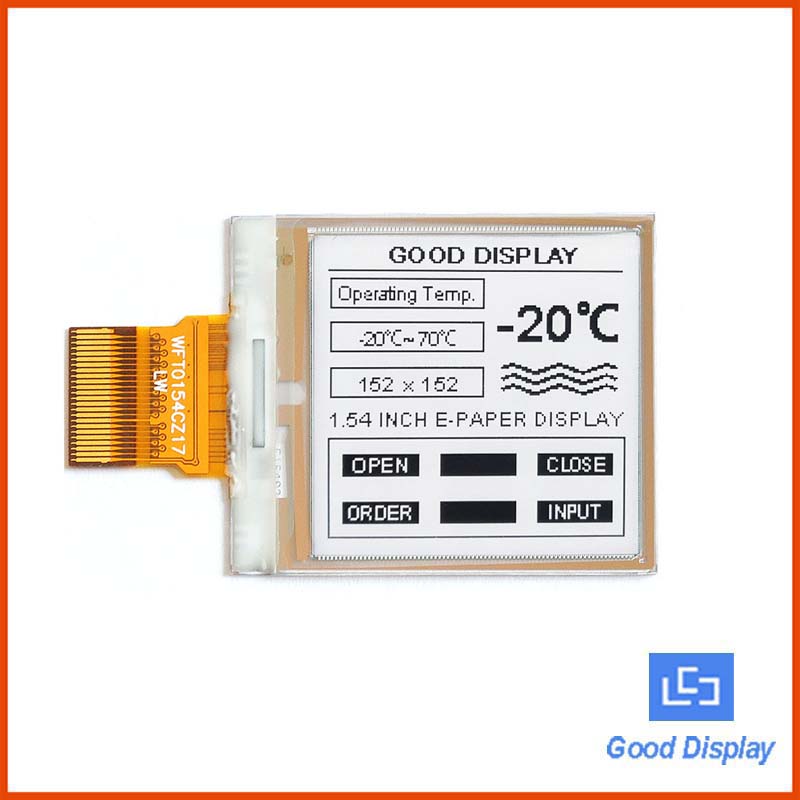

  1.54 inch DES e-paper display wide working temperature 152X152 resolution outdoor EPD GDEW0154M10

Product Model: GDEW0154M10

Outline Dimension: 31.8x37.32x1.02mm

Dot Pitch: 0.181x0.181mm

Operating Voltage: 3.3v

Front-light: Optional

Features: DES, Wide working temperature, Can be used outdoors

  1.54 inch e-paper screen 152x152 resolution partial refresh 4 grayscale GDEW0154T8

Product Model: GDEW0154T8

Outline Dimension: 31.80(H)×37.32(V) ×0.98(D)mm

Dot Pitch: 0.181×0.181mm

Operating Voltage: 3.3V

Front-light:Optional

Features: partial refresh, 152×152 resolution, 4 grayscale

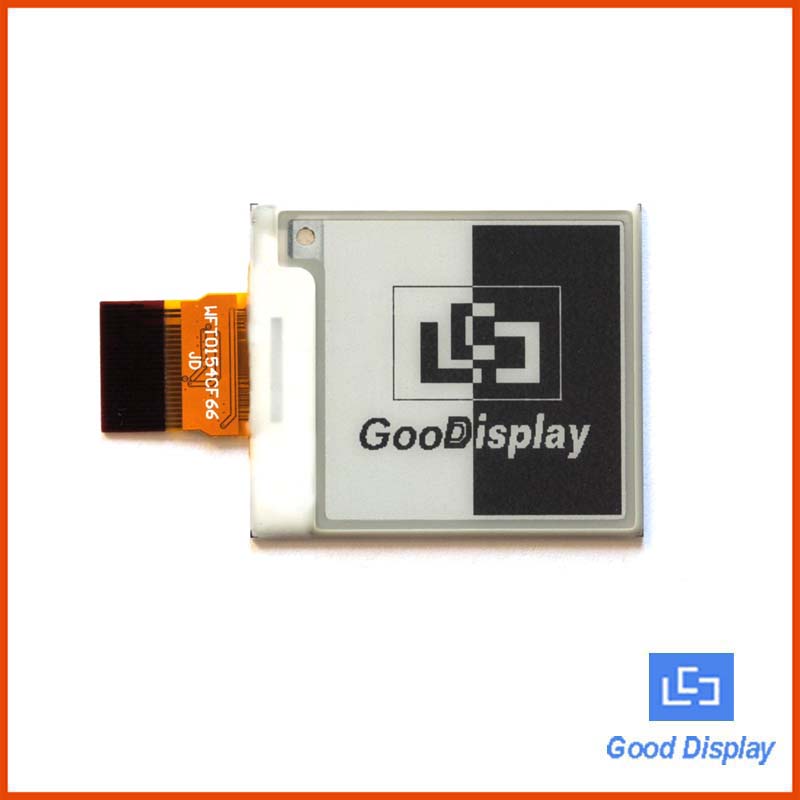

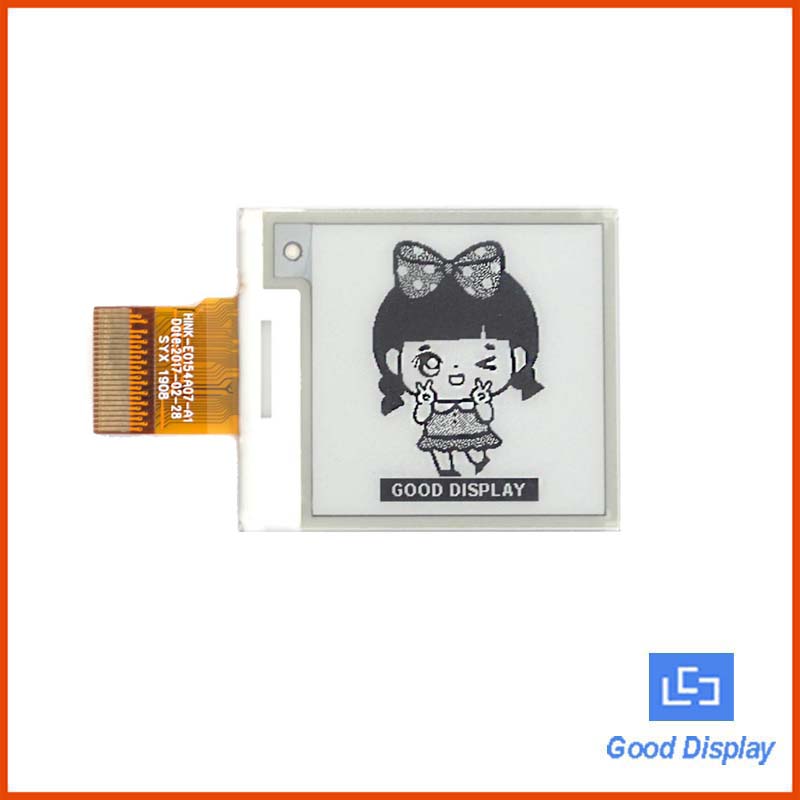

  1.54 inch e-paper display module partial refresh E-ink screen panel new GDEH0154D67

Product Model: GDEH0154D67

Outline Dimension: 37.32x31.80x1.05mm

Dot Pitch: 0.135x0.135mm

Operating Voltage: 3.3v

Front-light:Optional

Features: partial refresh, 200x200 resolution

  1.54 inch e-paper display high resolution 200x200 partial refresh GDEW0154M09

Product Model: GDEW0154M09

Outline Dimension: 31.8x37.32x0.98mm

Dot Pitch: 0.138x0.138mm

Operating Voltage: 3.3v

Front-light: Optional

Features: fast refresh speed, 200x200 resolution, partial refresh

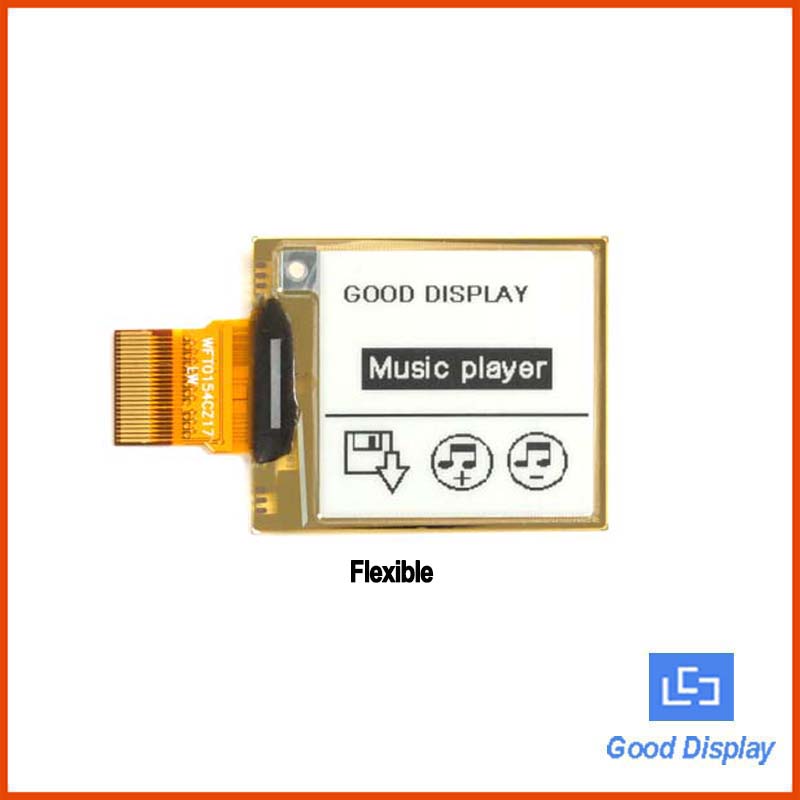

  1.54 inch small flexible partial refresh eink screen 4 Grayscale epaper display panel - GDEW0154I9F

Product Model: GDEW0154I9F

Outline Dimension: 31.8x37.32x0.34mm

Dot Pitch: 0.181x0.181mm

Operating Voltage: 3.3v

Front-light:Optional

Features: flexible,4 Grayscale, partial refresh,152x152 resolution

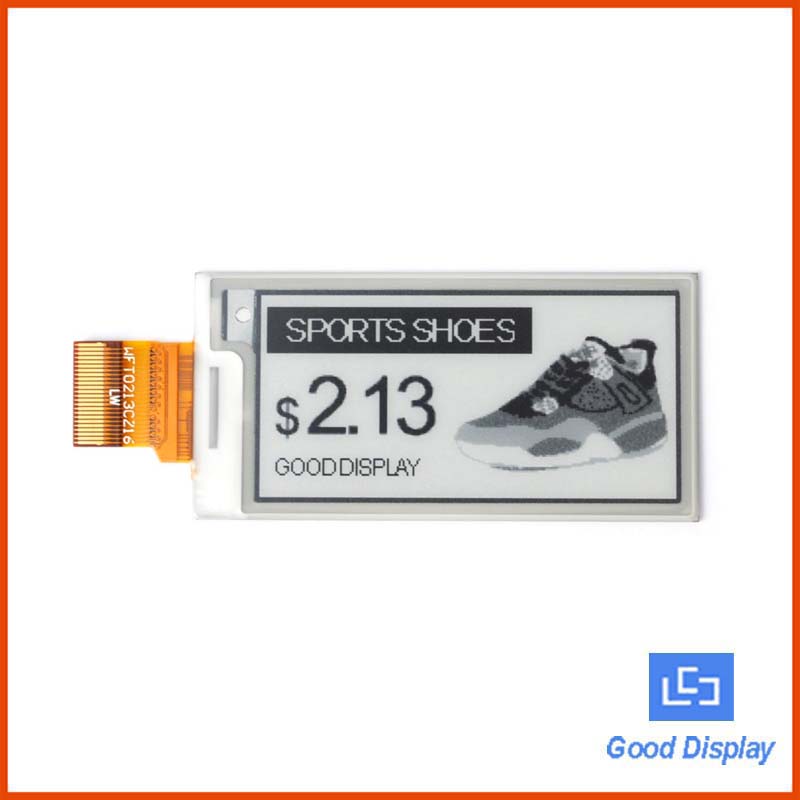

  2.13-inch e-ink display black and white 4 grayscale electronic paper screen partial refresh GDEW0213T5

Product Model: GDEW0213T5

Outline Dimension: 59.2(H)×29.2 (V) ×0.98(D)mm

Dot Pitch: 0.229×0.228mm

Operating Voltage: 3.3V

Front-light: --

Features: partial refresh, 4 Grayscale, 212x104 resolution

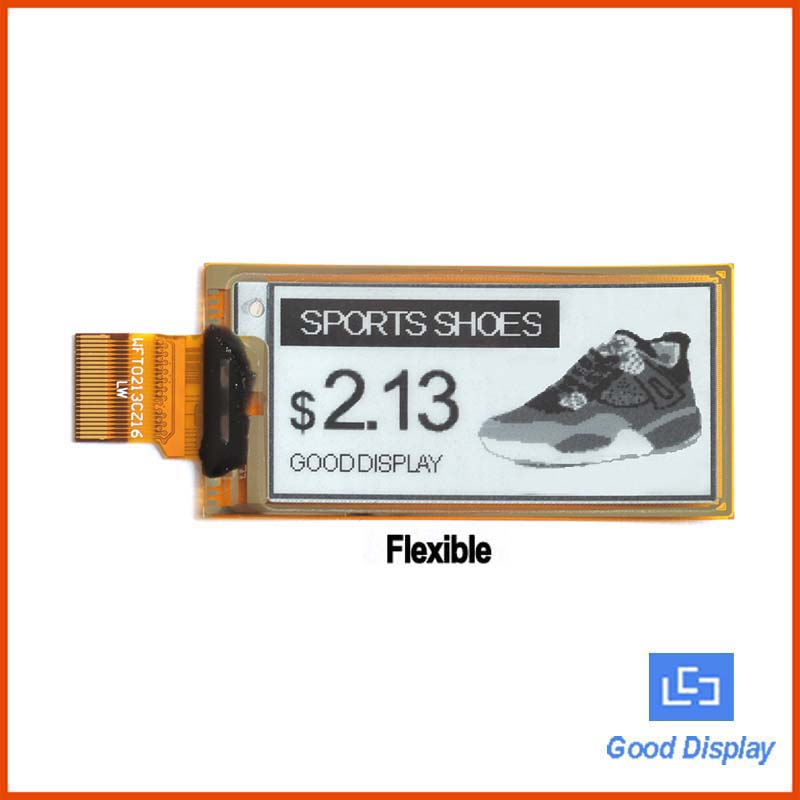

  2.13 inch e-paper display flexible partial refresh 4 Grayscale eink epaper GDEW0213I5F

Product Model: GDEW0213I5F

Outline Dimension: 59.2×29.2×0.3mm

Dot Pitch: 0.229×0.228mm

Operating Voltage: 3.3v

Front-light: --

Features: flexible, partial refresh, 4 Grayscale, 212x104 resolution

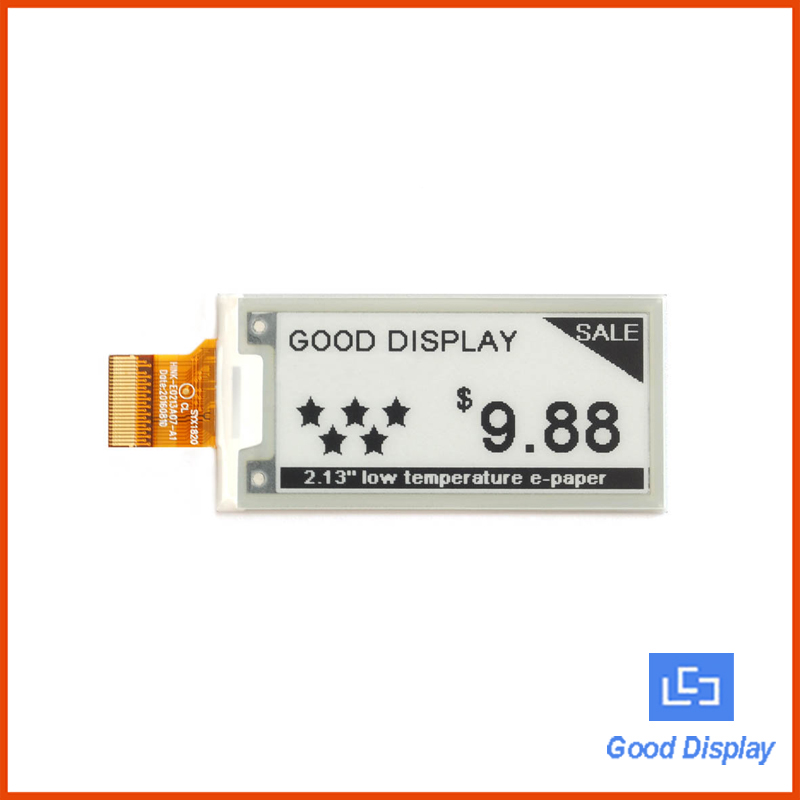

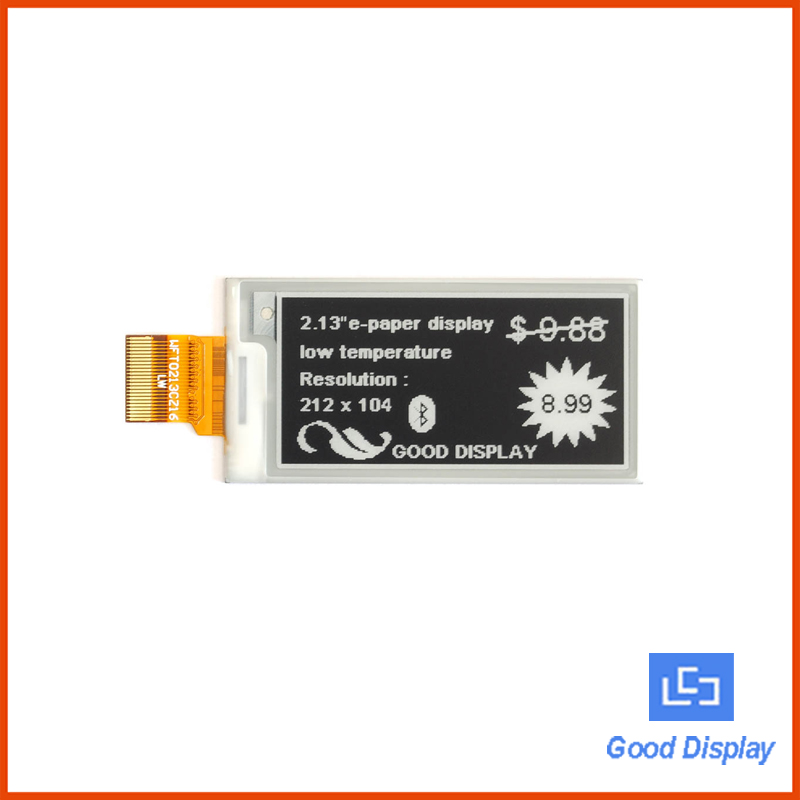

  2.13 inch e-paper display ultra low temperature E ink panel SPI interface GDEW0213V7LT

Product Model: GDEW0213V7LT

Outline Dimension: 59.2×29.2×0.98mm

Dot Pitch: 0.229×0.228mm

Operating Voltage: 3.3V

Front-light: --

Features: ultra low temperature, 212x104 resolution

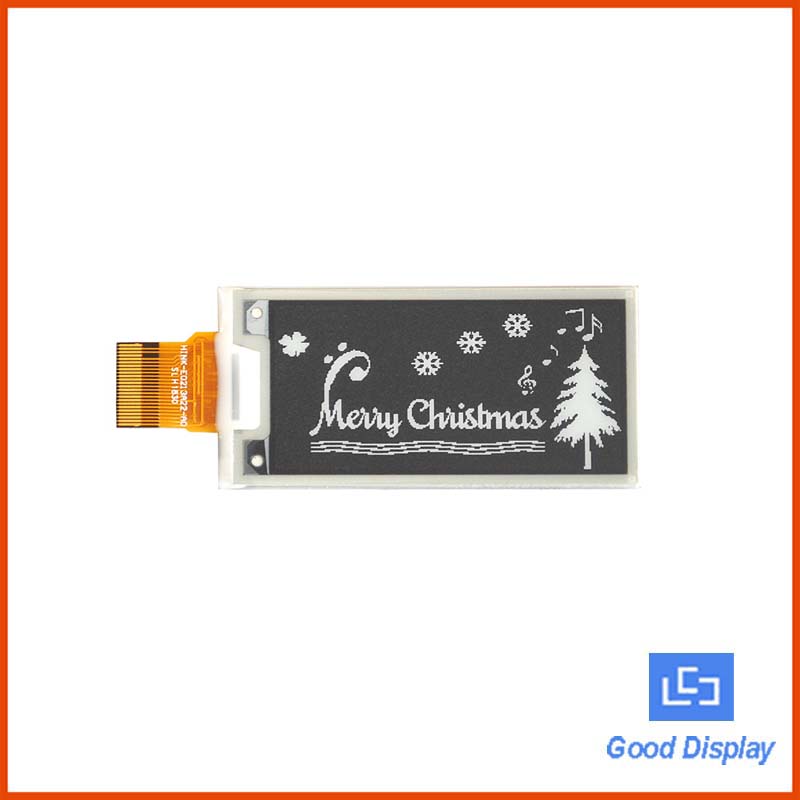

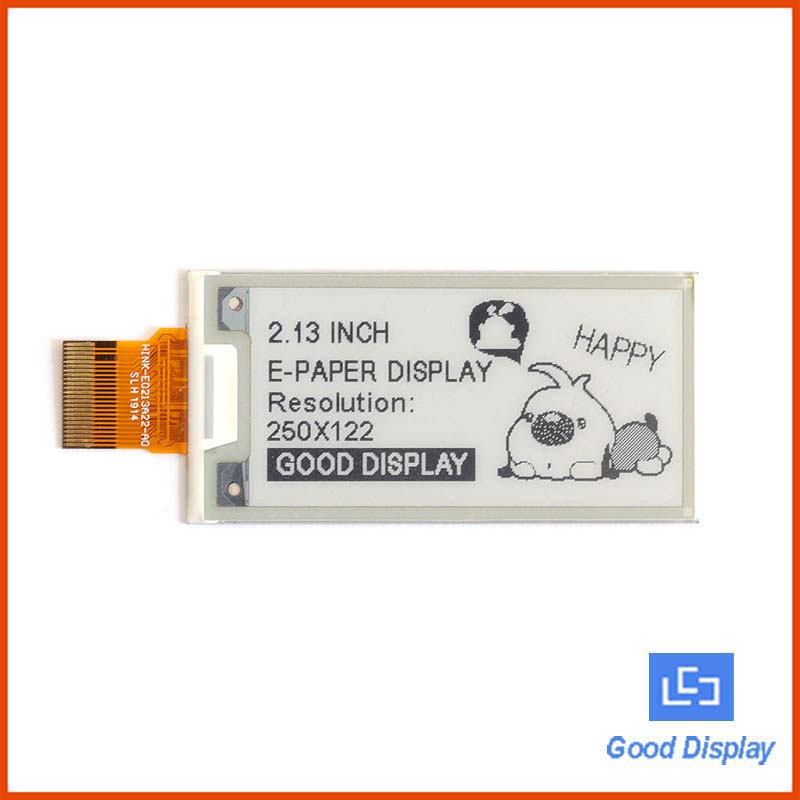

  2.13 inch e-paper display module partial refresh e-ink display screen GDEH0213B72

Product Model: GDEH0213B72

Outline Dimension: 29.2×59.2×1.05mm

Dot Pitch: 0.1942×0.1943mm

Operating Voltage: 3.3V

Front-light:

Features: partial refresh, 250x122 resolution

  2.13 inch e-paper display module partial refresh e-ink screen GDEH0213B73

Product Model: GDEH0213B73

Outline Dimension: 29.2x59.2x1.05mm

Dot Pitch: 0.1942x0.1943mm

Operating Voltage: 3.3v

Front-light: --

Features: partial refresh, 250x122 resolution

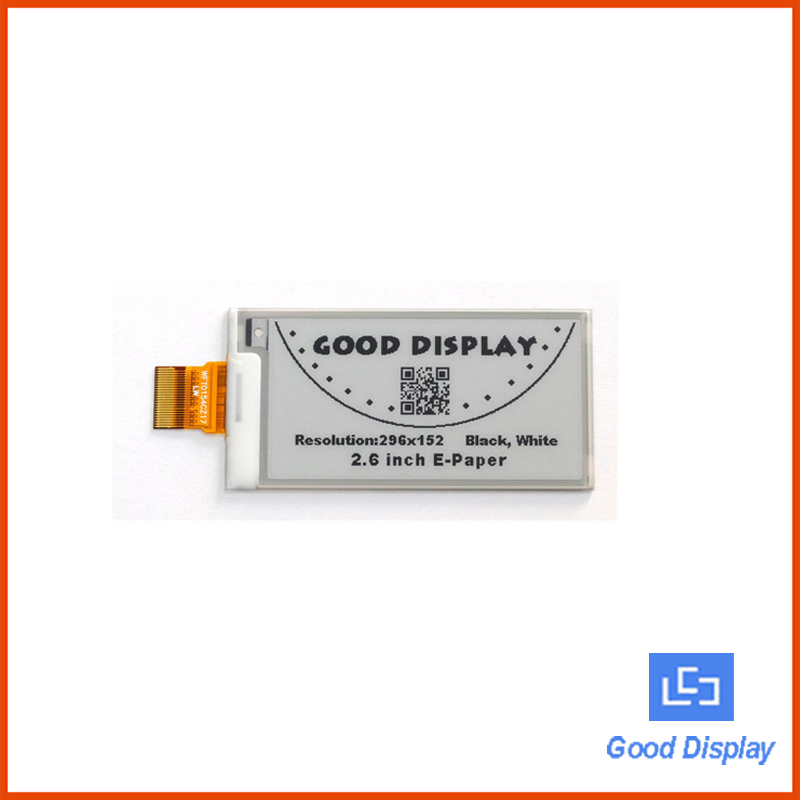

  2.6 inch e-paper display partial refresh 4 Grayscale e-ink screen GDEW026T0

Product Model: GDEW026T0

Outline Dimension: 71.82×36.3×1.18mm

Dot Pitch: 0.203×0.202mm

Operating Voltage: 3.3v

Front-light: --

Features: partial refresh, 4 Grayscale, 296x152 resolution

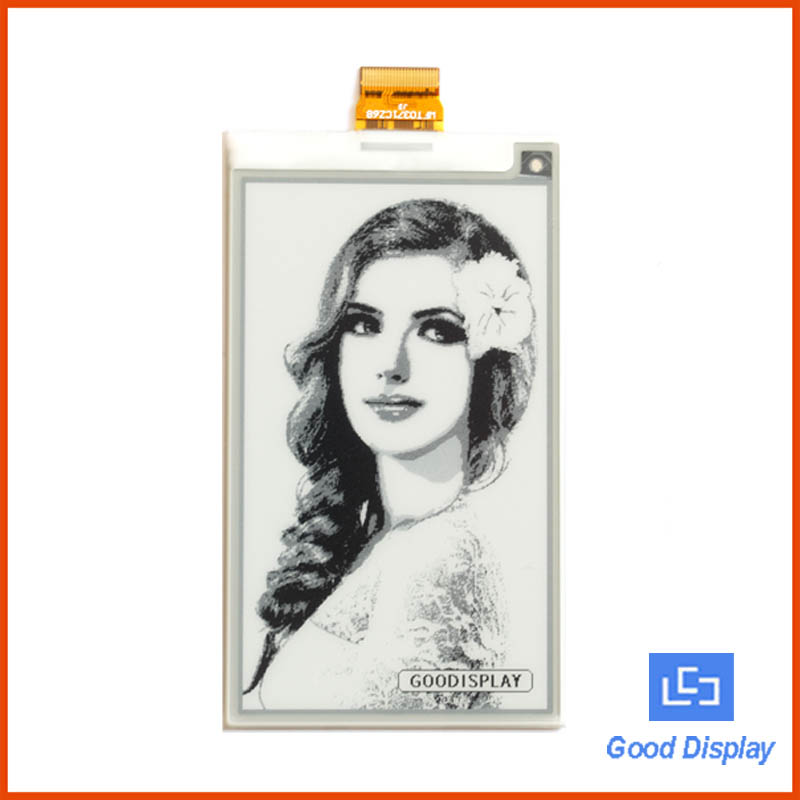

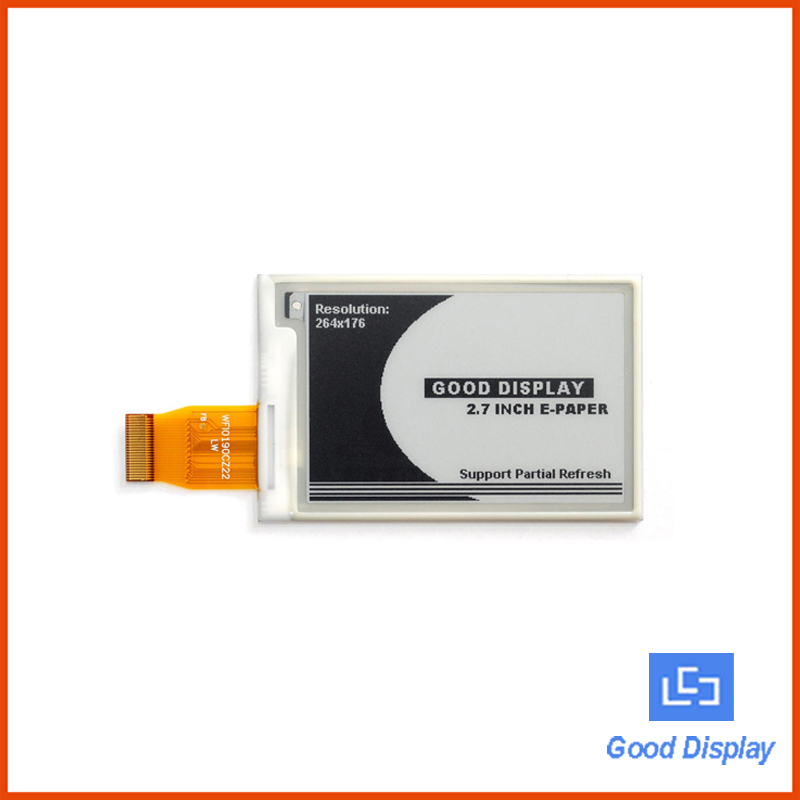

  2.7 inch e-paper display small size 4 grayscale electronic paper display GDEW027W3

Product Model: GDEW027W3

Outline Dimension: 70.42(H)×45.8(V) ×0.98(D)mm

Dot Pitch: 0.217×0.217mm

Operating Voltage: 3.3 V

Front-light: --

Features: partial refresh, 264×176 resolution, 4 Grayscale

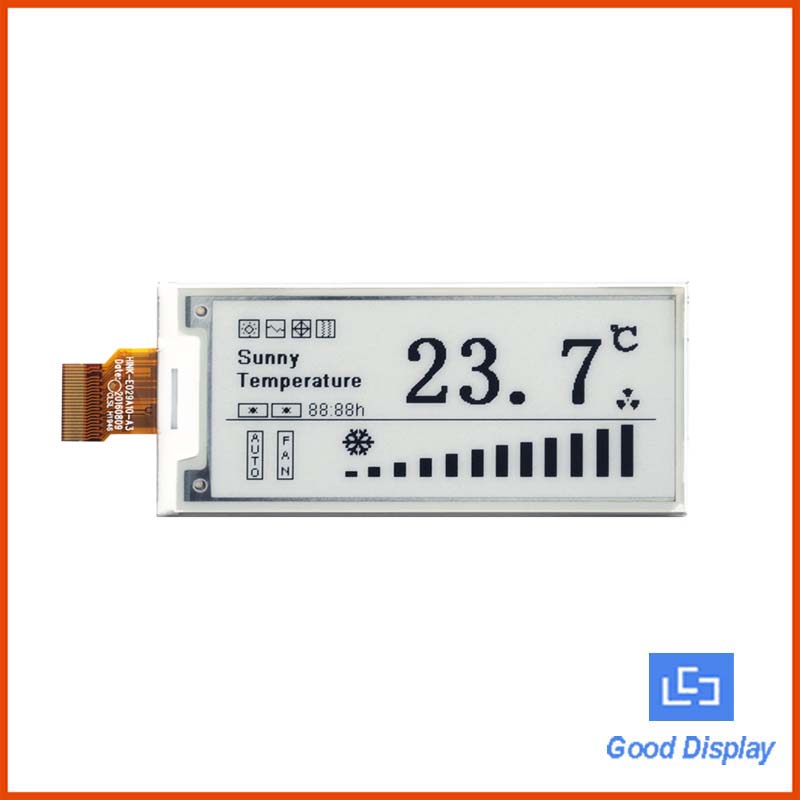

  2.9 inch e-paper display GDEH029A1

Product Model: GDEH029A1

Outline Dimension: 79.0 (H)×36.7 (V) ×1.05(D)mm

Dot Pitch: 0.227×0.226mm

Operating Voltage: 3.3V

Front-light: --

Features: partial update, 296×128 resolution

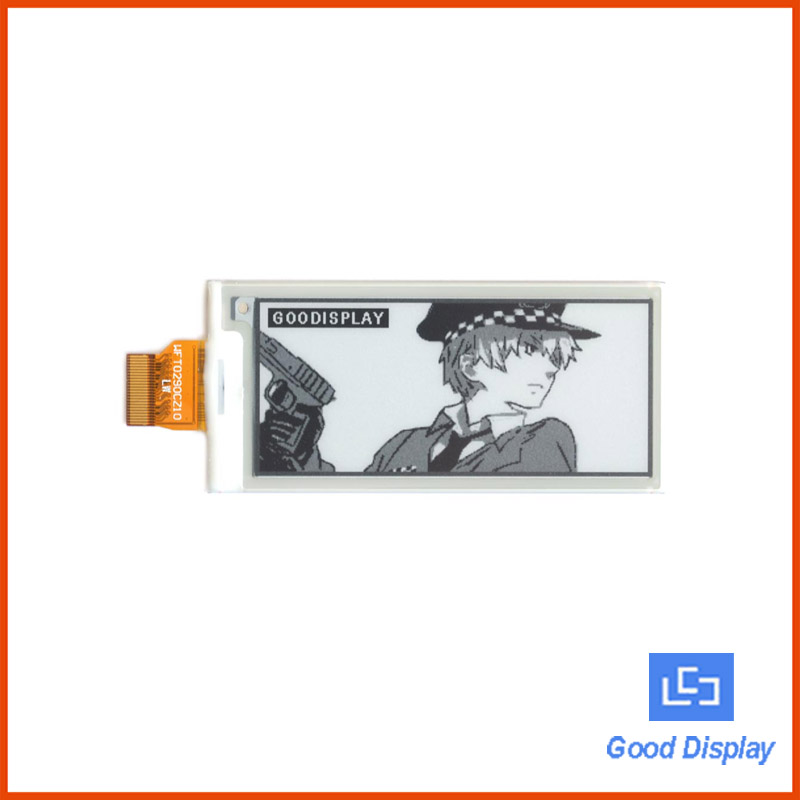

  2.9-inch e-paper display black and white 4 grayscale electronic paper display GDEW029T5

Product Model: GDEW029T5

Outline Dimension: 79.0(H)×36.7(V) ×1.18(D)mm

Dot Pitch: 0.226×0.227mm

Operating Voltage: 3.3V

Front-light: --

Features: Partial refresh, 296x128 resolution, 4 Grayscale

  2.9 inch e-paper display ultra low temperature electronic paper screen GDEH029D57LT

Product Model: GDEH029D57LT

Outline Dimension: 36.7x79x1.05mm

Dot Pitch: 0.226x0.227mm

Operating Voltage: 3.3v

Front-light: --

Features: ultra low temperature,

Operating Temp:-25℃~+40℃, 296x128 resolution

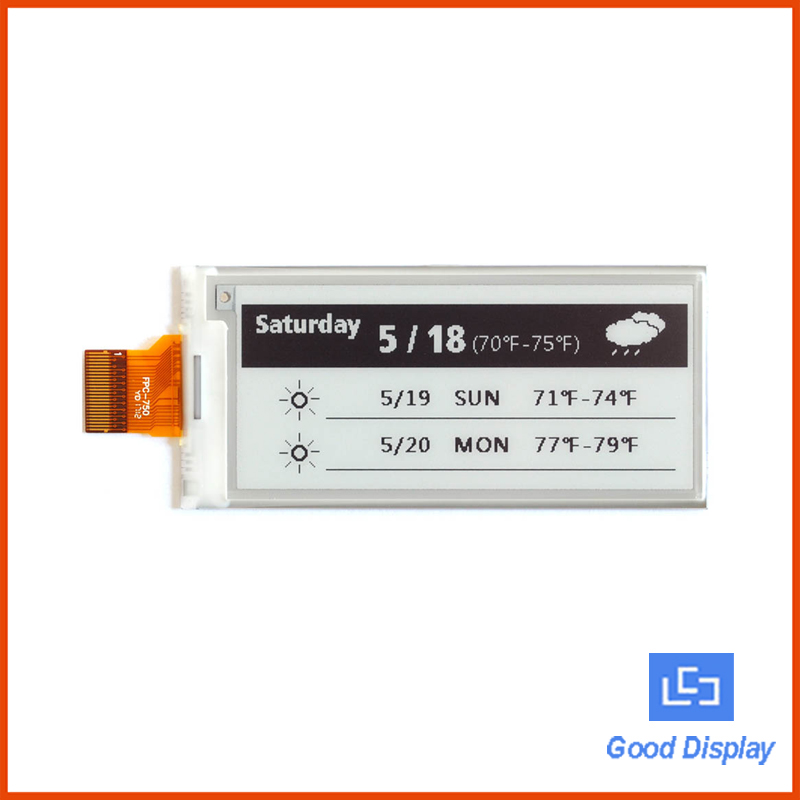

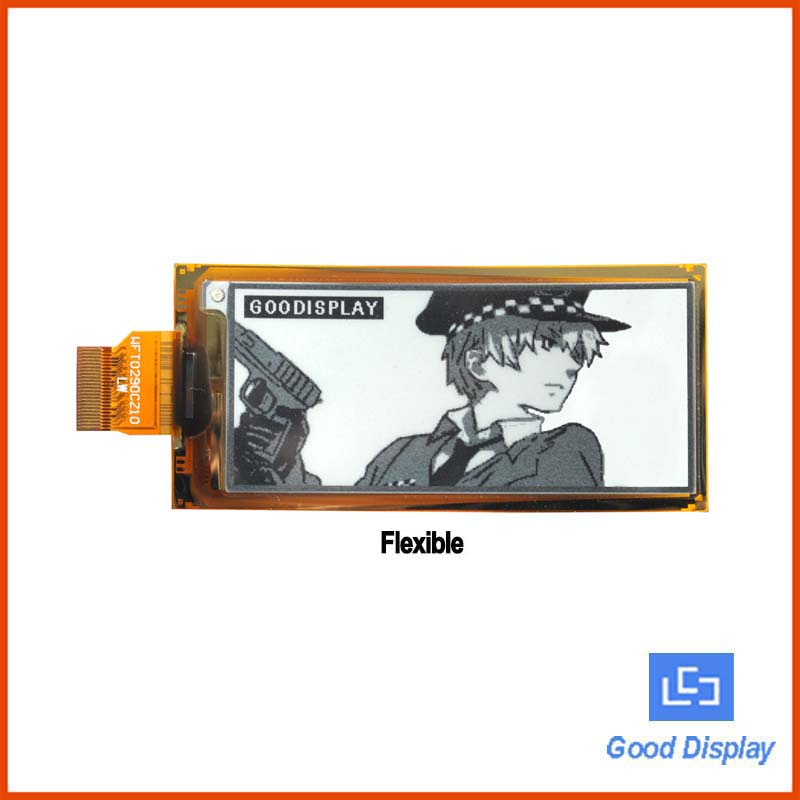

  2.9 inch flexible 4 grayscale e ink display module e paper display buy epd display manufacture GDEW029I6F

Product Model: GDEW029I6F

Outline Dimension: 79×36.7×0.34mm

Dot Pitch: 0.227×0.226mm

Operating Voltage: 3.3v

Front-light: --

Features: 2.9 inch flexible e-paper display, 296x128 resolution, 4 Grayscale

  2.9 inch e-paper display buy e ink display module epd display manufacture e-ink display sale China GDEM029E97

Product Model: GDEM029E97

Outline Dimension: 36.7×79×1.2mm

Dot Pitch: 0.226×0.227mm

Operating Voltage: 3.3v

Front-light: --

Features: Partial refresh,ultra low power consumption, 296x128 resolution

  3.71 inch e-paper display e-ink screen panel 4 grayscale GDEW0371W7

Product Model: GDEW0371W7

Outline Dimension: 92.99×53×1.18mm

Dot Pitch: 0.196×0.196mm

Operating Voltage: 3.3v

Front-light: --

Features: 3.71 inch, 416x240 resolution, 4 Grayscale

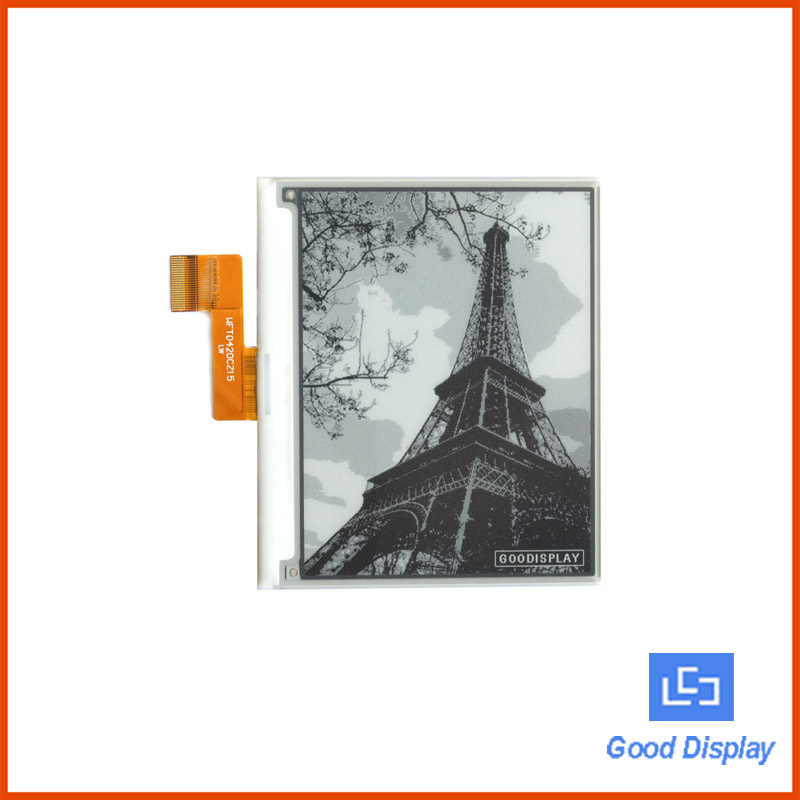

  4.2 inch e-paper display 400x300 resolution electronic paper screen 4 grayscale GDEW042T2

Product Model: GDEW042T2

Outline Dimension: 91.0(H)×77.0(V) ×1.18(D)mm

Dot Pitch: 0.212×0.212mm

Operating Voltage: 3.3 V

Front-light: --

Features: 400×300 resolution, 4 Grayscale

  4.3 inch e-paper display 800x600 e paper display

Product Model: GDE043A2

Outline Dimension: 126.5x74.6x1.17mm

Dot Pitch: 0.11x0.11mm

Operating Voltage: 3.3V

Front-light: Optional

Features: High resolution, 800x600, parallel interface, partial refresh

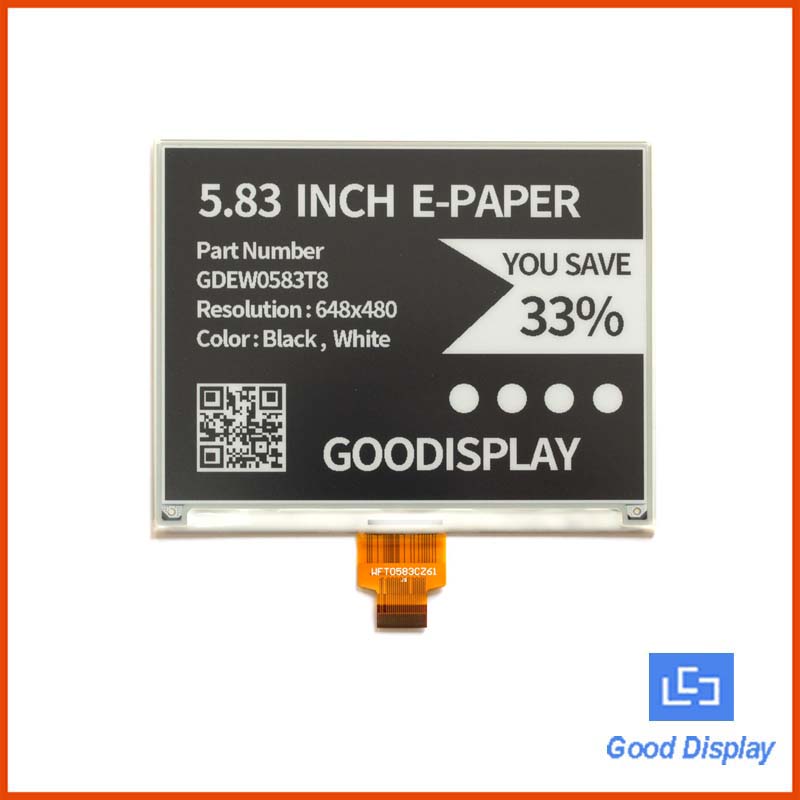

  5.83 inch high resolution 648x480, e-paper display, black and white, e-ink screen, GDEW0583T8

Product Model: GDEW0583T8

Outline Dimension: 125.40x99.50x1.18mm

Dot Pitch: 0.184x0.184mm

Operating Voltage: 3.3V

Front-light: --

Features: High resolution, 648x480 resolution

  6 inch parallel e-paper display 800x600 pixels GDE060B3

Product Model: GDE060B3

Outline Dimension: 101.8(W)x138.4(H)x1.18(D)mm

Dot Pitch: 0.151x 0.153mm

Operating Voltage: 3.3 V

Front-light: Optional

Features: Parallel interface, 800x600 resolution

  6 inch e-paper display GDE060BA

Product Model: GDE060BA

Outline Dimension: 101.8x138.4x1.18mm

Dot Pitch: 0.151x 0.153mm

Operating Voltage: 3.3V

Front-light: Optional

Features: Parallel interface, 800x600 resolution, support partial refresh and 16 grayscale

  6 inch HD large parallel e-paper display 1024×758 GDE060F3

Product Model: GDE060F3

Outline Dimension: 101.8×138.4×1.18mm

Dot Pitch: 0.1195×0.1195mm

Operating Voltage: 3.3v

Front-light: Optional

Features: High resolution, 1024x758 resolution, parallel interface

  7.5 inch Large 4 Grayscale e-paperdisplay higher resolution 800x480 SPI GDEW075T7

Product Model: GDEW075T7

Outline Dimension: 170.2x111.2x1.18mm

Dot Pitch: 0.205x0.204mm

Operating Voltage: 3.3v

Front-light: Optional

Features: Higher resolution 800x480,4 Grayscale

  8 inch large e-paper display parallel e-ink screen panel 768X1024 GDEW080T5

Product Model: GDEW080T5

Outline Dimension: 134.11x178.56x1.18 mm

Dot Pitch: 0.159x 0.159 mm

Operating Voltage: 3.3V

Front-light: --

Features: Large size, 768×1024 resolution, partial refresh, parallel interface

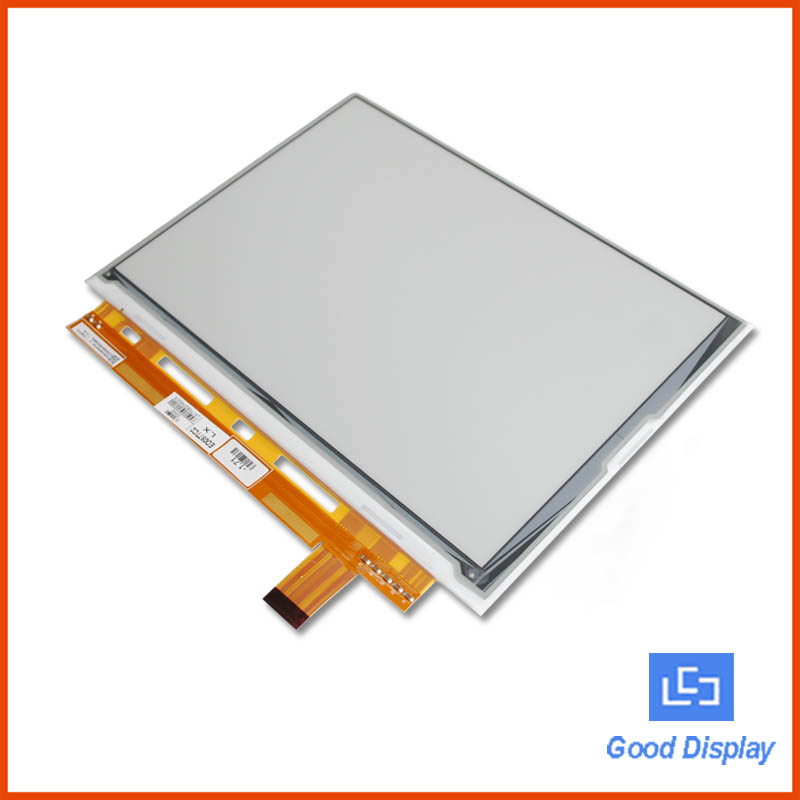

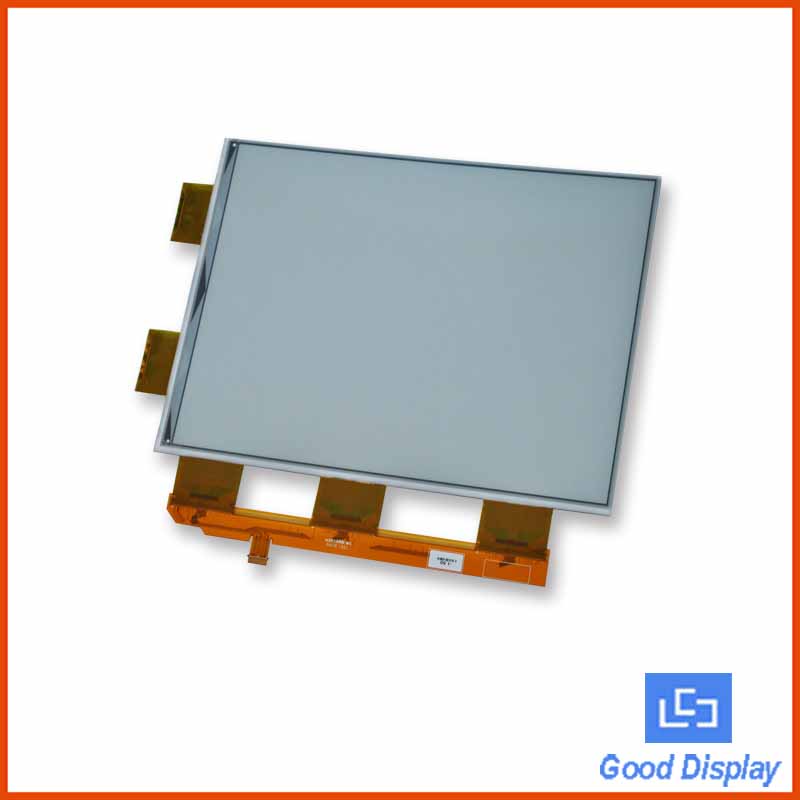

  9.7 inch Display resolution 1200x825 big size parallel e-paper display panel

Product Model: GDEP097TC2

Outline Dimension: 218.8(W)×156.425(H)×1.15(D)mm

Dot Pitch: 0.169 (H)x0.169 (V)mm

Operating Voltage: 3.3V

Front-light: --

Features: large size, 9.7 inch, 1200x825 resolution, partial refresh, parallel interface

  11.6 inch large size e-ink screen module SPI interface resolution 960x640, GDEH116T91

Product Model: GDEH116T91

Outline Dimension: 254.31x176.35x0.85mm

Dot Pitch: 0.2547x0.2547mm

Operating Voltage: 3.3v

Front-light: --

Features: 11.6 inch SPI interface large e-paper

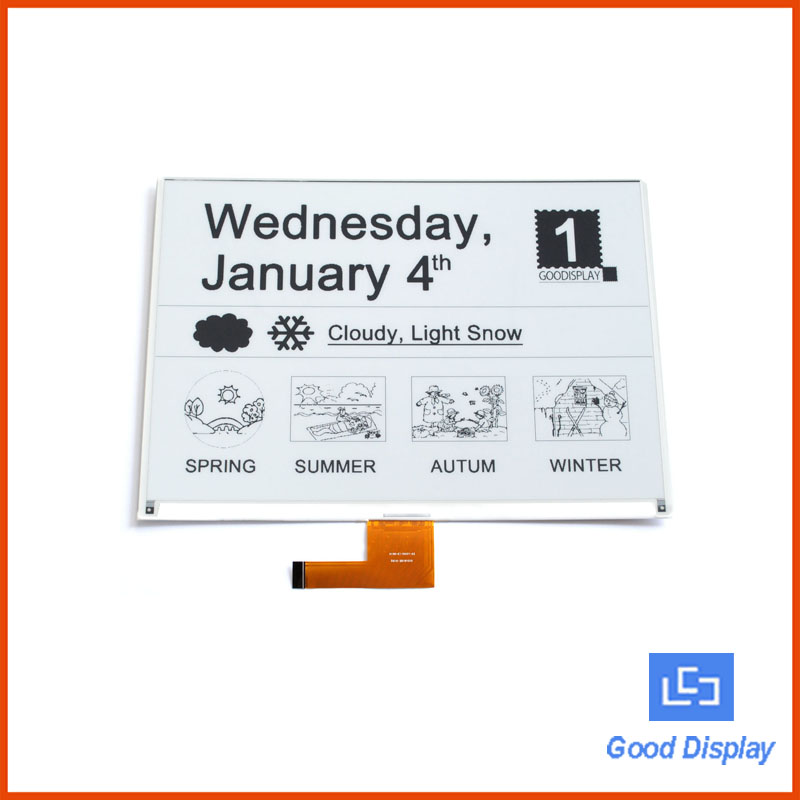

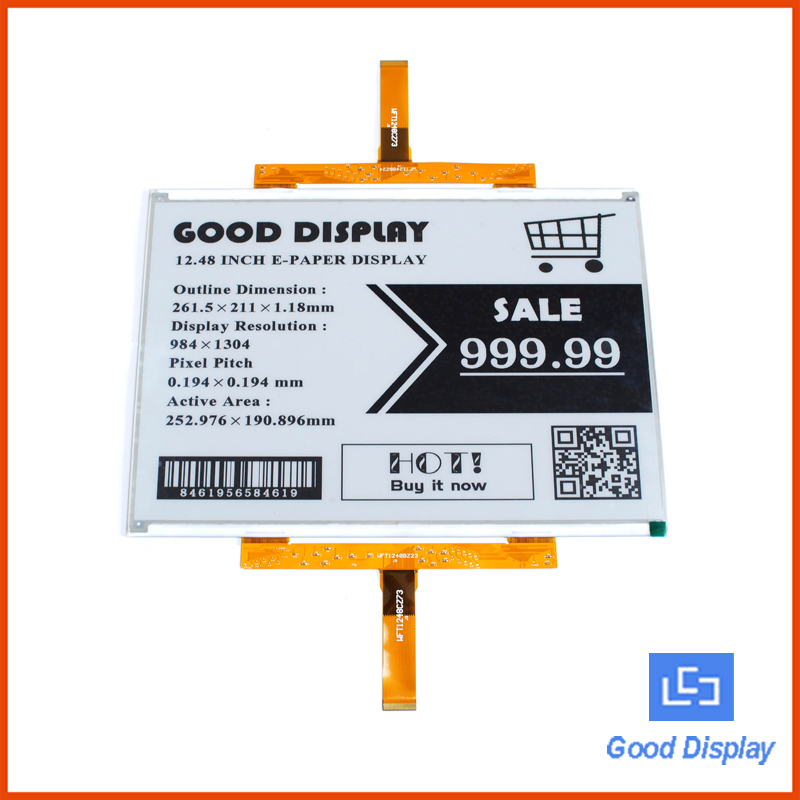

  12.48 inch large e-ink display, 4 Grayscale big e-paper screen, GDEW1248T3

Product Model: GDEW1248T3

Outline Dimension: 261.5×211×1.18mm

Dot Pitch: 0.194×0.194mm

Operating Voltage: 3.3v

Front-light: --

Features: large size 12.48 inch, 4 Grayscale, 1304x984 resolution

  large-size electronic paper screen with parallel port 13.3-inch GDEP133UT1

Product Model: GDEP133UT1

Outline Dimension: 285.8(W)×213.65(H)×0.994(D)mm

Dot Pitch: 0.169 (H)×0.169 (V)mm

Operating Voltage: 3.3V

Front-light: --

Features: 13.3-inch large-size electronic paper screen

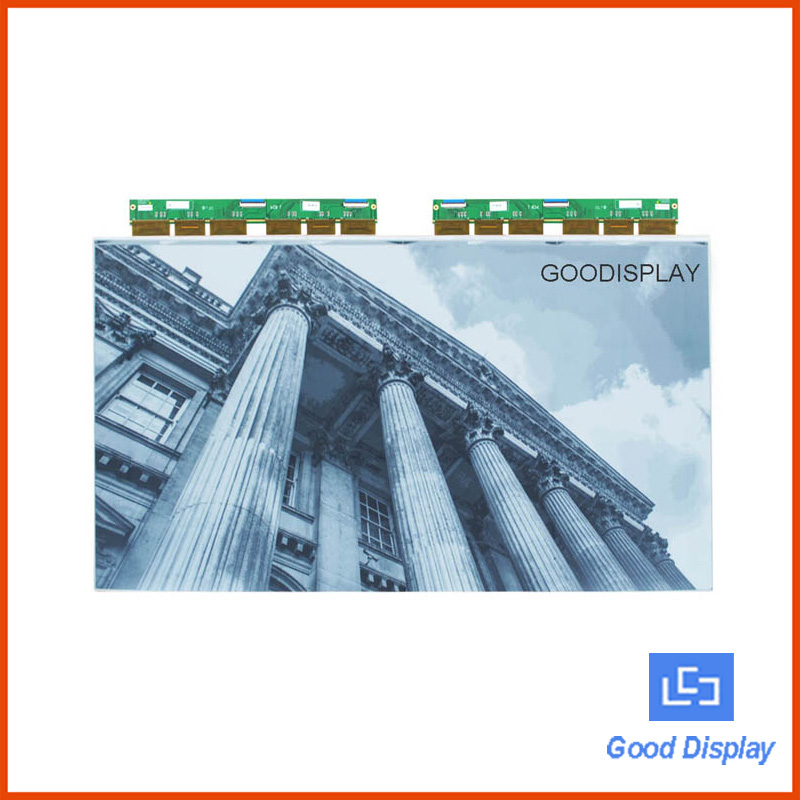

  32 inch parallel e ink display, largest e-paper display, GDEP312TT2-D

Product Model: GDEP312TT2-D

Outline Dimension: 697.2(H)×402.8(V)×0.805(D)mm

Dot Pitch: 0.27(H)×0.27(V)mm

Operating Voltage: 3.3V

Front-light: --

Features: The largest one

The following products have been discontinued, please contact our sales engineer if you want to order.

For more information about new EPD, please visit our new website.



CH-LCD Bistable LCD EPD12864-XX

Product Model: EPD12864-XX

Outline Dimension: 66.0x43.4x1.4mm

Dot Pitch: 0.43x0.43mm

Operating Voltage: 3.0V

Features: Ch-LCD E-Paper Bistable LCD 128x64

  1.54 inch e-paper display anti-ultraviolet 200x200 partial update GDEP015OC1

Product Model: GDEP015OC1

Outline Dimension: 31.8(H)x37.32(V)x1.05(D) mm

Dot Pitch: 0.138x0.138 mm

Operating Voltage: 3.3 V

Front-light:Optional

Features: paticial refresh, 200×200 resolution

  1.54 inch e-paper display module partial refresh E-ink screen panel GDEH0154D27

Product Model: GDEH0154D27

Outline Dimension: 31.8×36.32×1.05mm

Dot Pitch: 0.138×0.138mm

Operating Voltage: 3.3V

Front-light:Optional

Features: partial refresh, 200×200 resolution

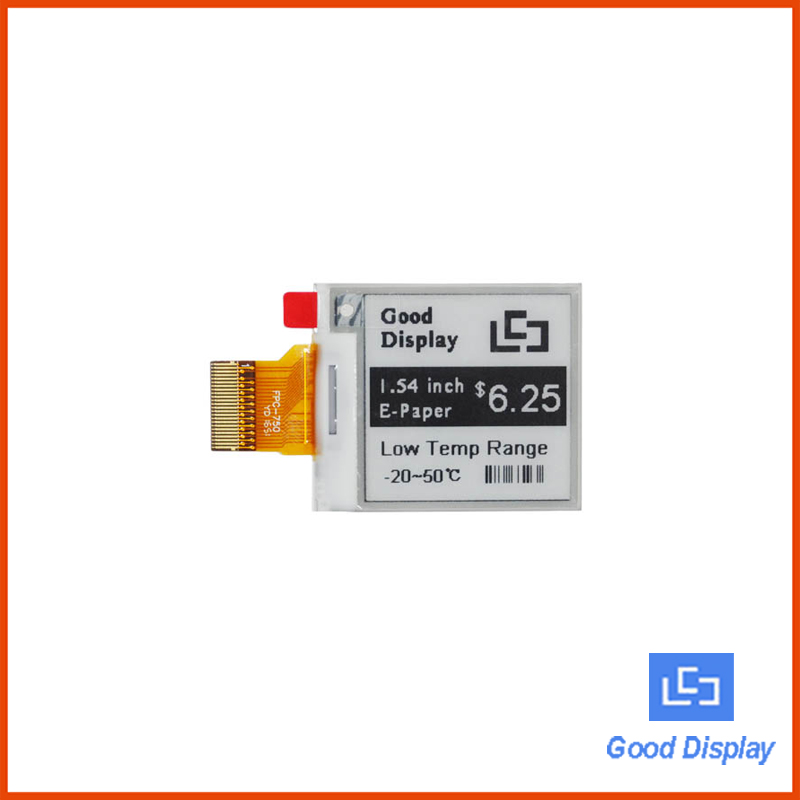

  1.54 inch e-paper display ultra low temperature E ink panel SPI interface GDEM0154E97LT

Product Model: GDEM0154E97LT

Outline Dimension: 31.8×37.3×1.05mm

Dot Pitch: 0.181×0.181mm

Operating Voltage: 3.3v

Front-light: Optional

Features: ultra low temperature, partial refresh, 152x152 resolution

  2.04 inch epaper display with fast update speed 4 grey levels GDE021A1

Product Model: GDE021A1

Outline Dimension: 59.2x29.2x1.18mm

Dot Pitch: 0.138x0.138mm

Operating Voltage: 3.3v

Front-light: --

Features: 2.04 inch, 4 grayscale

  2.13 inch e-paper display ultra low temperature partial refresh E ink panel SPI interface GDEH0213D30LT

Product Model: GDEH0213D30LT

Outline Dimension: 29.2×59.2×1.05mm

Dot Pitch: 0.225×0.220mm

Operating Voltage: 3.3v

Front-light: --

Features: ultra low temperature, partial refresh, 212x104 resolution

  2.9 inch e-paper display ultra low temperature electronic paper screen GDEH029D56LT

Product Model: GDEH029D56LT

Outline Dimension: 36.7×79×1.25mm

Dot Pitch: 0.227×0.226mm

Operating Voltage: 3.3v

Front-light: --

Features: ultra low templerature, 296x128 resolution, partial refresh

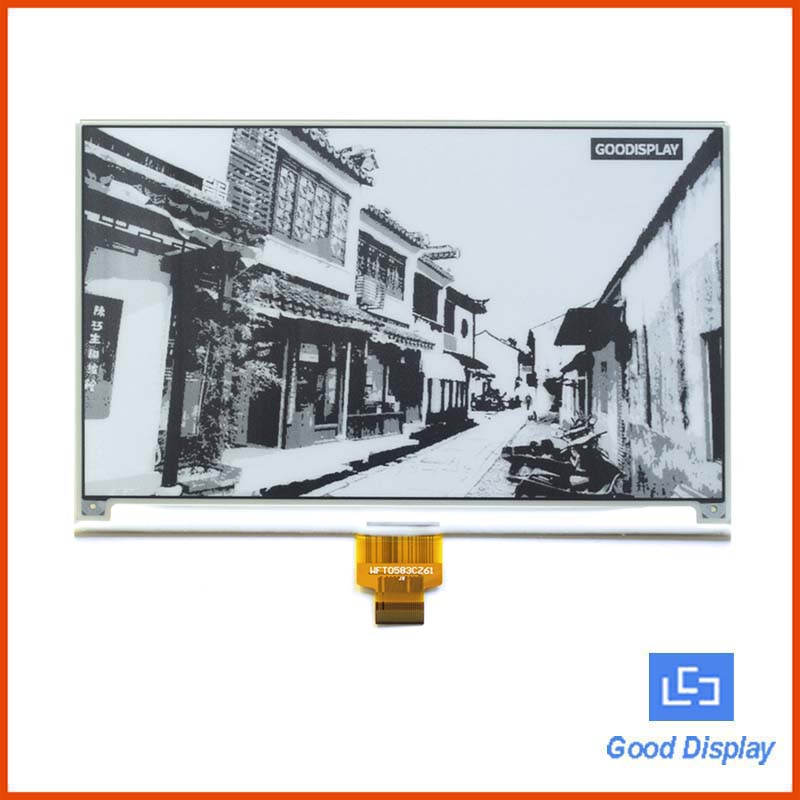

  5.83 inch e-paper display GDEW0583T7

Product Model: GDEW0583T7

Outline Dimension: 125.40(H)×99.50(V)×1.18(D)mm

Dot Pitch: 0.198×0.197mm

Operating Voltage: 3.3v

Front-light: --

Features: 5.83 inch, 600x448 resolution

  7.5 inch E-paper large display 640x384 SPI GDEW075T8

Product Model: GDEW075T8

Outline Dimension: 170.2(H) × 111.2(V) × 1.18(D)mm

Dot Pitch: 0.255 × 0.255mm

Operating Voltage: 3.3 V

Front-light: Optional

Features: Large size, 7.5 inch, 640x384 resolution
