E-ink display development demo kit HAT support data partial refresh for parallel interface EPD, DESTM32-Tcon-11
  • Product Name: E-ink display development demo kit HAT support data partial refresh for parallel interface EPD, DESTM32-Tcon-11
  • Code: DESTM32-Tcon-11
  • Quantity in stock: Yes
  • Retail price:
  • Unit of measurement: pcs
  • Net weight: --
  • Views : 1062

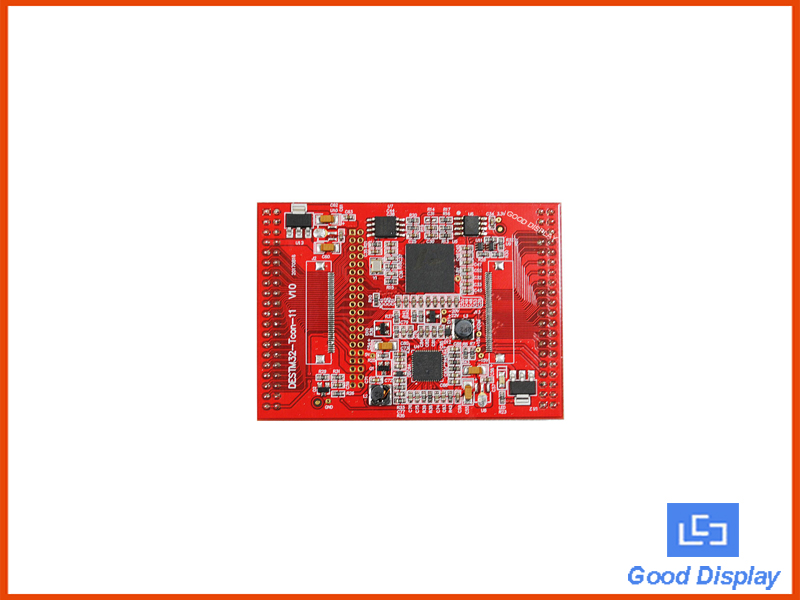

This DESTM32-Tcon-11 board is used to drive Good Display's parallel electronic paper, including the function of  the power supplyand data refresh. It can be a reference for partial refresh solution developer.

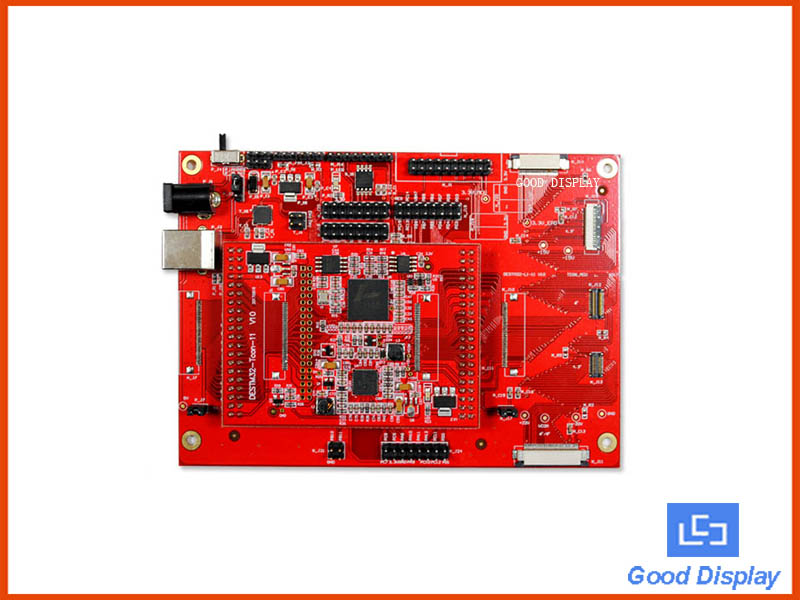

DESTM32-T development board including the mainboard DESTM32 L1-11 and adapter board DESTM32-Tcon-11 two parts.

And the pinboard DESTM32-T is used for 4.3 inch, 6 inch and 8 inch E-paper display.

1. 4.3 inch E-Paper Display: GDE043A2 and GDE043A6

2. 6 inch E-Paper Display: GDE060BA-T, GDE060BA, GDE060BAFL and GDE060BAFL-T

3. 8 inch E-Paper Display: GDEW080T5









· E paper driver board

· Data partial refresh

· Helpful source code for developer



DEMO does not provide electronic paper screen, the screen must be purchased separately

If you are new to e-paper, then maybe you also need the main board of demo, then visit Following link to order the demo set that matched with these e-papers:







File Type

Description (Downloadable)

                  Version

               Language

       Update Date

       Size

 DESTM32-T Specification

                   1.1

               English

       2017-11-24

      703.97KB

Schematic DESTM32-Tcon-11

                    1.1                English        2017-11-24         830.87KB

Schematic DESTM32-L1-11

                    1.1                English        2017-11-24         779.58KB
TPS65185                1.0                 English      2019-02-18        2.37MB
AVT6203A                1.0             English      2019-02-18        1.79MB





Purchase Online:  buyepaper
