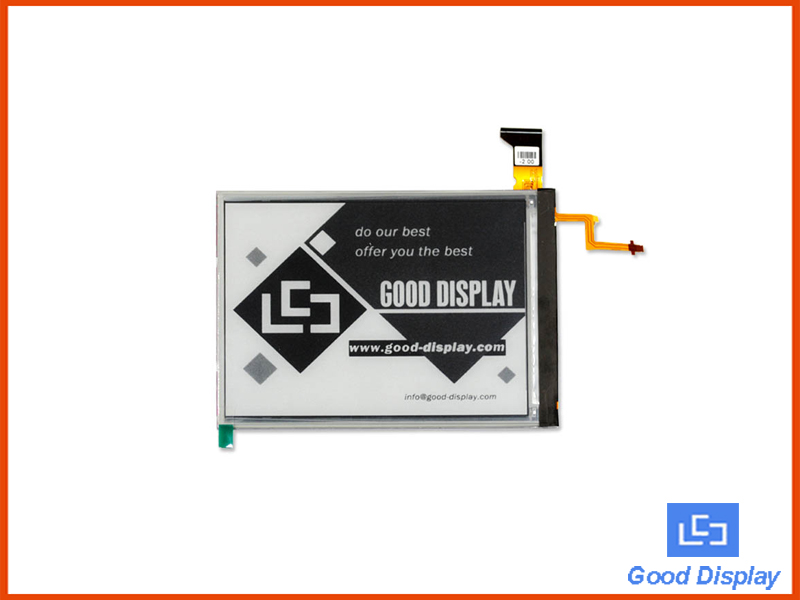

6 inch e-paper display Front light 800x600 e ink display GDE060BAFL
  • Product Name: 6 inch e-paper display Front light 800x600 e ink display GDE060BAFL
  • Code: 06004
  • Quantity in stock: Yes
  • Retail price:
  • Unit of measurement: pcs
  • Net weight:
  • Views : 1452




The resolution of the module is 800×600,and the active area is 6.0 inch diagonal.
It also comes with a front light that makes it able to  be used in dark places.The capacitive touch panel is available.






· With frontlight
· Parallel interface
· 600x800 resoluiton
· 16 Grayscale
· Support partial refresh
· Come with helpful development resources and manual (STM32 platform )






Part Number

GDE060BAFL

Type

Dot Matrix

Resolution

800*600

Outline Size(mm)

101.8*138.4*2.1

Active Size(mm)

90.6*122.4

Pixel Pitch(mm)

0.151*0.153

Operating Temp.

0~50C

Storage Temp.

—20~70C

Contrast Ratio

above 8:1

Max Grayscale

16

Color

Black,White,Grey
Power consumption of the e-paper only(mW) 600
Power consumption of the front-light(mW) 230
Time of refresh(s) 1
Time of partial refresh(s) 1

Purchase Online

buyepaper








Part Number

Full refresh Time

Resolution

Feature

GDE060B3

1S

800x600

         Parallel

GDE060BA

1S

800x600

Parallel

GDE060F3

1S

1024x758

Parallel/High Resolution

GDE060BAFL

1S

800x600

Parallel/Frontlight

GDE060BA-T

1S

800x600

Parallel/Touch screen

GDE060BAFL-T

1S

800x600

Parallel/Touch/Frontlight

 More Large E-Paper Display ... ...







Datasheet-E Paper Display，Controller IC,Connector,Source Code

File Type

Description (Downloadable)

 Version

Language

Update Date

Size
GDE060BAFL Spec.

1.1

English

2019-11-20

472.04KB
IC Driver 1.0 English 2017-08-28 1001.95KB
Connector Spec. 1.0 English 2017-08-11 483.13B
Picture Production and Bitmap Convert 1.0 English 2020-02-04 460.8KB










Development Board

File Type

Description (Downloadable)

                  Version

               Language

       Update Date

       Size

 DESTM32-T Specification

                   1.1

               English

       2017-11-24

      703.97KB

 Schematic DESTM32-Tcon-11

                    1.1                English        2017-11-24         830.87KB

 Schematic DESTM32-L1-11

                    1.1                English        2017-11-24         779.58KB
TPS65185                1.0             English      2019-02-18        2.37MB
AVT6203A                1.0             English      2019-02-18        1.79MB
Sample Code 1.0 English 2019-02-14           9.16MB







File Type

Description (Click to see more)

Language

 Update Date
The Principle and Advantage of E-Paper English 2012-10-25
Matrix E-ink Display -- FAQ English 2018-11-13
Matrix E-ink Display -- FAQ Pt. 2 English 2018-11-13
Warranty English 2016-10-25
