6 inch HD large parallel e-paper display 1024*758 GDE060F3
  • Product Name: 6 inch HD large parallel e-paper display 1024*758 GDE060F3
  • Code: 06006
  • Quantity in stock: 20
  • Retail price:
  • Unit of measurement: --
  • Net weight: --
  • Views : 1083

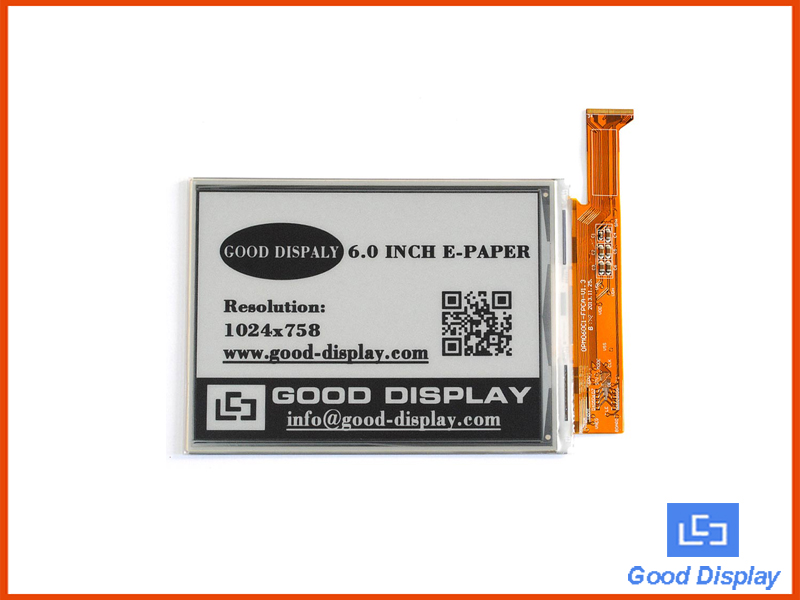

This is an E ink E paper display panel, 6.0 inch, 1024*758 resolution, square, 34 pins FPC connection,
optional FPC connector, communicating via Parallel interface, with integrated circuits including source
and gate drivers,supports black, white.

In view of so many advantages: ultra low power consumption, wide viewing angle, readable under sunlight,
GDE060F3 is a very good choice for E-book reader.






· Higher resolution 1024x758 than GDE060BA 800*600.
· Parallel interface
· 16 Grayscale
· Support partial refresh
· Comes with helpful development resources and manual (STM32 platform )






Part Number

GDE060F3

Type

Dot Matrix

Resolution

1024*758

Outline Size(mm)

101.8*138.4*1.18

Active Size(mm)

90.581*122.368

Pixel Pitch(mm)

0.1195*0.1195

Operating Temp.

0C~50C

Storage Temp.

-20C~70C

Contrast Ratio

8:1

Max Grayscale

16

Color

Black,White
Power consumption of the refresh(mW) 600
Standby power consumption Pc(mW) 0.4
Time of refresh(s) 1
Time of partial refresh(s) 1
Purchase Online

buyepaper/AliExpress







Part Number

Full refresh Time

Resolution

Feature

GDE060B3

1S

800x600

         Parallel

GDE060BA

1S

800x600

Parallel

GDE060F3

1S

1024x758

Parallel/High Resolution

GDE060BAFL

1S

800x600

Parallel/Frontlight

GDE060BA-T

1S

800x600

Parallel/Touch screen

GDE060BAFL-T

1S

800x600

Parallel/Touch/Frontlight





Datasheet-E Paper Display，Controller IC,Connector,Source Code

File Type

Description (Downloadable)

 Version

Language

Update Date

Size
GDE060F3 Specifications

1.0

English

2018-03-20

485.28KB
Connector Spec. 1.0 English 2017-08-11 1.77MB
Picture Production and Bitmap Convert 1.0 English 2020-02-04 534.42KB

If you want to buy the set: e-paper and matched demo, please click here: With Drive Board





Development Board

File Type

Description (Downloadable)

                  Version

               Language

       Update Date

       Size

 DESTM32-T Specification

                   1.1

               English

       2017-11-24

      703.97KB

 Schematic DESTM32-Tcon-11

                    1.1                English        2017-11-24         830.87KB

 Schematic DESTM32-L1-11

                    1.1                English        2017-11-24         779.58KB
TPS65185                1.0             English      2019-02-18        2.37MB
AVT6203A                1.0             English      2019-02-18        1.79MB
Sample Code 1.0 English 2018-03-20 11.77MB
Sample Code for T-con 1.0 English 2019-02-14 1.84MB
Sample Code Partial Refresh 1.0 English 2019-10-22 2.57MB







File Type

Description (Click to see more)

Language

 Update Date
The Principle and Advantage of E-Paper English 2012-10-25
Matrix E-ink Display -- FAQ English 2018-11-13
Matrix E-ink Display -- FAQ Pt. 2 English 2018-11-13
Warranty English 2016-10-25











Q:Is there a corresponding DEMO board?
A:Yes. Both DESTM32-L and DESTM32-T can support this e-paper.
