Your present location:Home >> 2-Color EPD >> 1.02 inch flexible e-paper display small mini e-ink screen module GDEW0102I3F
  • Product Name: 1.02 inch flexible e-paper display small mini e-ink screen module GDEW0102I3F
  • Code: 00102
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 1187

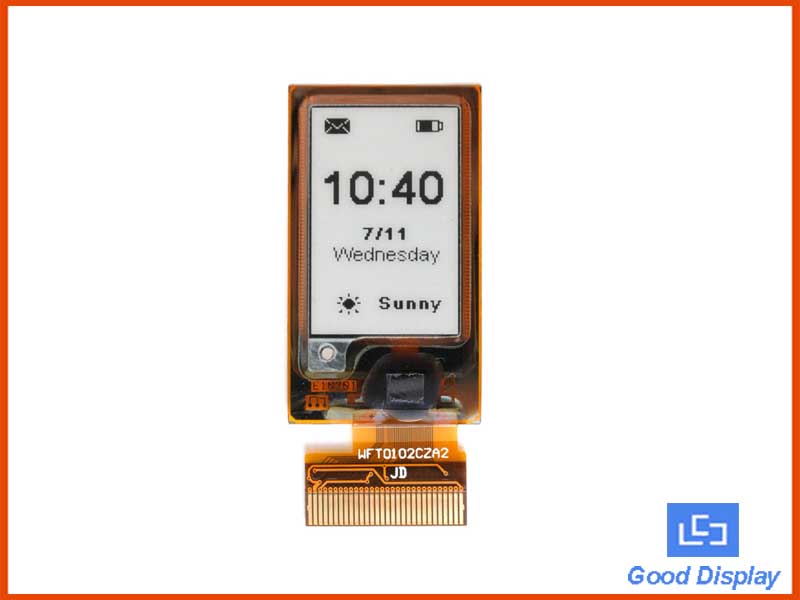

This is the 1.02 inch flexible E ink Epaper display panel with 128*80 resolution, 30 pins FPC connection, communication via SPI interface and IC driver with partial refresh.
Its waveform is stored in on-chip OTP, and it supports black and white.

In view of so many advantages: ultra low power consumption, ultra wide viewing angle, GDEW0102I4F is a very good choice for applications like:

· Smart tags
· Smart watches
· And other related products.








· Mini flexible e-ink e-paper display, Support small bending
· Ultra-thin, not fragile
· Support Partial refresh
· SPI interface, 30 pin connector.
· The I2C signal master interface to read built-in temperature sensor.
· Comes with helpful development resources and manual (STM32 platform )
· Development platform available STM32 / Raspberry Pi / Arduino / ESP8266






Part Number

GDEW0102I3F

Features

Fexible,unbendable, ultra-thin, not fragile

Resolution

128*80

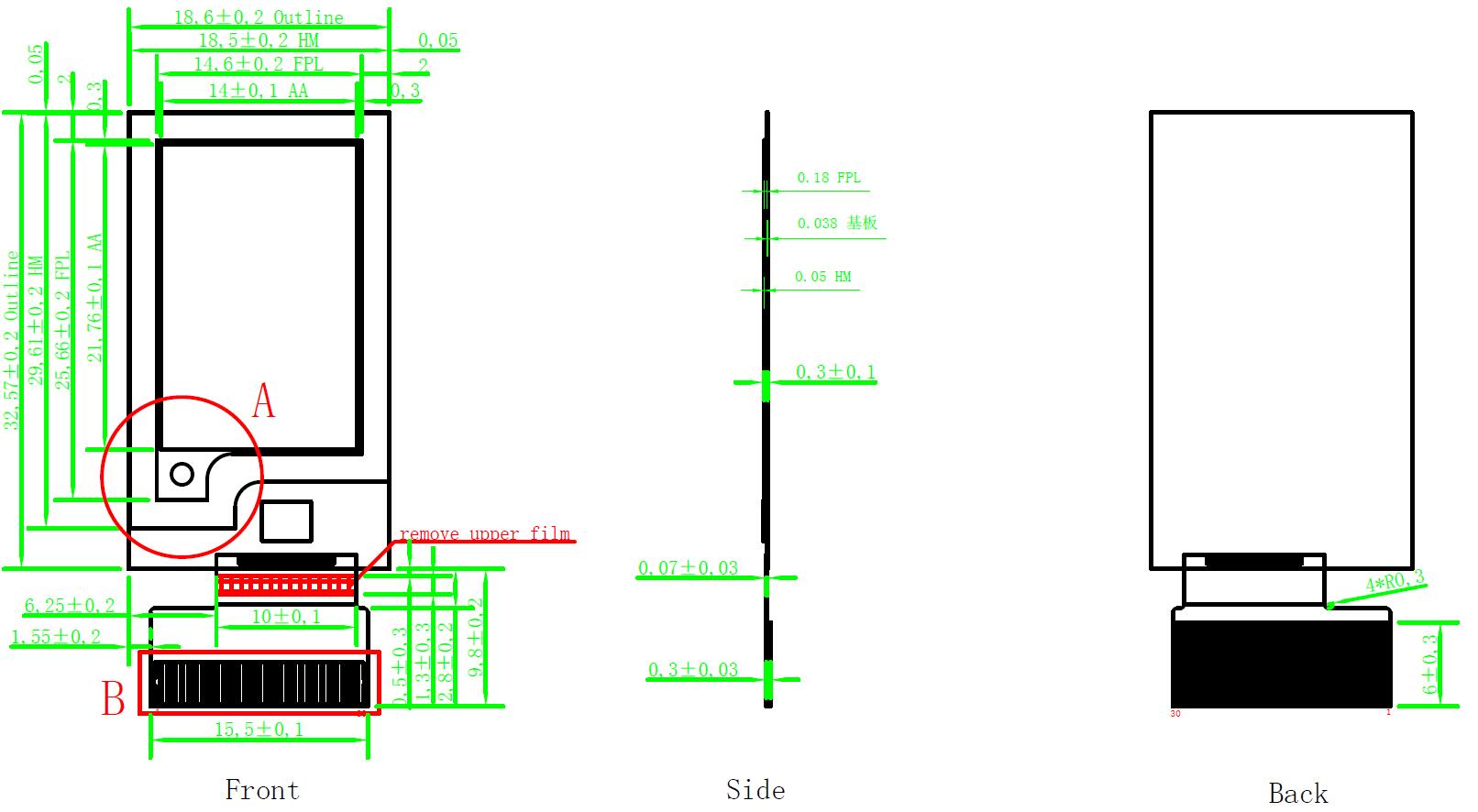

Outline Size(mm)

32.57*18.6*0.3

Active Size(mm)

21.76*14

Pixel Pitch(mm)

0.175*0.17

Operating Temp.

0℃~50℃

Storage Temp.

-25℃~70℃

Connector

30 Pin

Color Black,White
Max Grayscale 2
Full refresh(s) 3
Partial refresh(s) 0.3
Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.0165

Purchase Online

buyepaperAliExpress












File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEW0102I3F Spec.

1.1

English

2019-11-15

2.2MB

IC Driver 1.0 English 2020-01-21 1.49MB
 Picture Production and Bitmap Convert 1.0 English 2020-01-21 458.68KB
 Readme(SPI interface Partial refresh considerations)                1.0              English      2019-11-19       0.84KB
