Your present location:Home >> T/P Front-light >> 4.3 inch e-ink display touchscreen e paper with touchscreen partial refresh GDE043A2-T

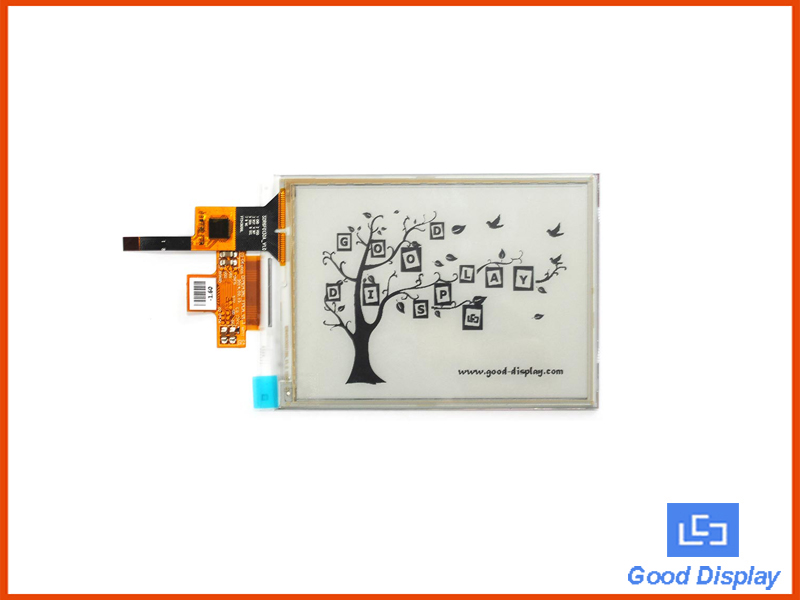

4.3 inch e-ink display touchscreen e paper with touchscreen partial refresh GDE043A2-T
  • Product Name: 4.3 inch e-ink display touchscreen e paper with touchscreen partial refresh GDE043A2-T
  • Code: 04304
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 1038





Check out our latest e-paper touchscreen products here!





This is an e-ink e paper display panel, 4.3 inch, 800*600 resolution, with capacitive touch panel, high-resolution AM TFT Black/White display module can be used in portable electronic devices, such as E-book Reader. Support partial refresh, fast update and no flicker update.

In view of so many advantages: ultra low power consumption, wide viewing angle, reflective mode and so on. GDE043A2-T is a very good choice for applications like E-book reader, smart home products and other related products.







· With Touch Panel.
· Parallel interface,
· Support partial refresh, fast update and no flicker update.
· Come with helpful development resources and manual (STM32 platform )






Part Number

GDE043A2-T

Type

Dot Matrix

Resolution

800*600

Outline Size(mm)

126.5*74.6*1.65

Active Size(mm)

88*66

Pixel Pitch(mm)

0.11*0.11

Operating Temp.

0℃~+50℃

Storage Temp.

-25℃~+70℃

Power Supply

2.8-3.6V

Color

Black, White

Max Grayscale

16
Time of refresh(s) 1
Time of partial refresh(s) 1
Power consumption of the e-paper only(mW) 260
Power consumption of the touch screen(mW) 36.3
Purchase Online



buyepaper  /  Aliexpress











Part Number

Resolution

Feature

Full refresh

 Frontlight(optional) T/P(optional)
GDE043A2 480x800 Parallel interface,Partial refresh 1s √ √
GDEP043ZF3 800x600 Parallel interface 1s √ √
GDE043A2-T 800x600 Parallel interface,Partial refresh,With touch screen 1s √ √
GDE043A2-FL 800x600 Parallel interface,With front light 1s √ √









File Type

Description (Downloadable)

 Version

Language

Update Date

Size
GDE043A2-T Specification

1.0

English

2019-01-04

1.68MB
Sample Code 1.0 English 2019-01-04 1.73MB
Touch Screen Sample Code  1.0  English  2019-10-22 1.73MB
Picture Production and Bitmap Convert 1.0 English 2020-02-04 501.6KB

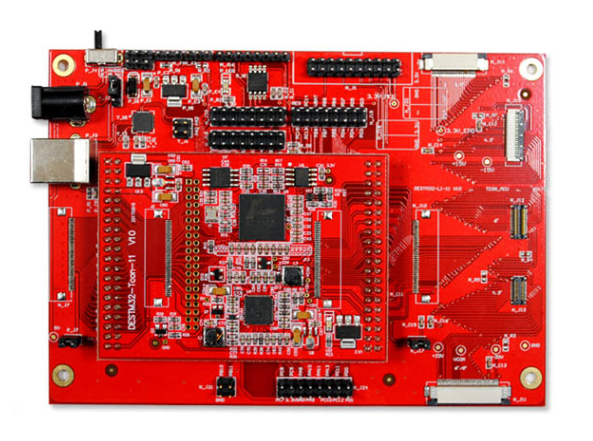

Development Board

File Type

Description (Downloadable)

                  Version

               Language

       Update Date

       Size

 DESTM32-T Specification

                   1.1

               English

       2017-11-24

      703.97KB

 Schematic DESTM32-Tcon-11

                    1.1                English        2017-11-24         830.87KB

 Schematic DESTM32-L1-11

                    1.1                English        2017-11-24         779.58KB
TPS65185                1.0             English      2019-02-18        2.37MB
AVT6203A                1.0             English      2019-02-18        1.79MB

If you want to buy the set: e-paper and matched demo, please click here: With Drive Board






File Type

Description (Click to see more)

Language

 Update Date
The Principle and Advantage of E-Paper English 2012-10-25
Matrix E-ink Display -- FAQ English 2017-08-16
Matrix E-ink Display -- FAQ Pt. 2 English 2018-11-13

Warranty

English

 2016-10-25











Q:Can this e-paper support partial refresh?
A:Yes.
