  • Product Name: 1.54 inch e-paper display module with touch screen color red display panel GDEW0154Z04-T
  • Code: 01502-1
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 555

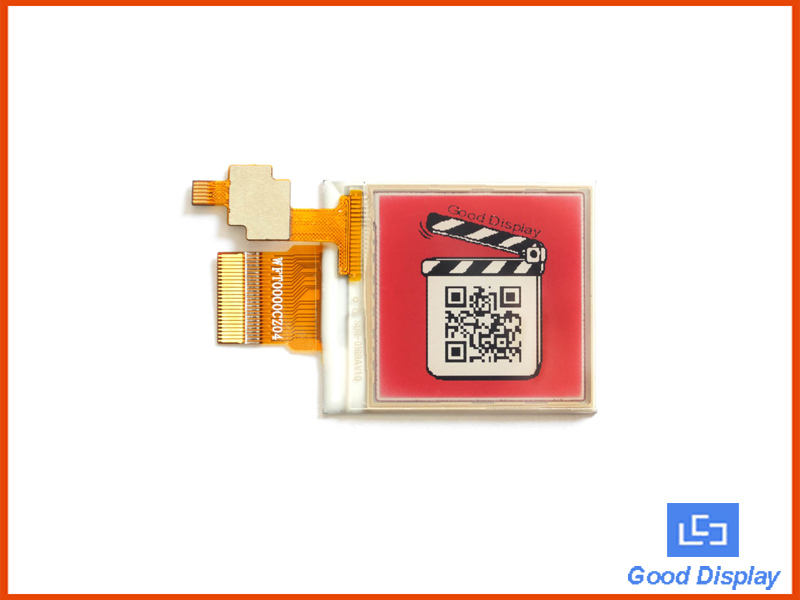

This is a 1.54 inch E ink E paper display with capacitive touch screen, 200*200 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform,  supports black,white and red.



In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW0154Z04-T is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, IED and other related products.

Note: All of 3-color epaper doesn't support partial refesh





With touch panel
Three colors, black, white and red

Come with helpful development resources and manual (STM32 platform )

200x200 resolution
Development platform available STM32 / Arduino / Raspberry Pi / ESP8266






Part Number

GDEW0154Z04-T

Type

Dot Matrix

Resolution

200*200

Outline Size(mm)

31.8*.37.3*1.53

Actve Size(mm)

27.6*27.6

Power Supply

2.8V-3.3V

Operating Temp.

0°C~40°C

Storage Temp.

-25°C~60°C

Connector

24 Pin FPC, Pitch:0.5mm

Channels

16

Color

Black,White,Red

Time of refresh(s)  8
Power consumption of the e-paper only(mW) 26.4
Power consumption of the touch screen(mW) 13.2
Purchase Online

buyepaper





Part Number

Color

Full refresh Time

Resolution

Feature

T/P and Front-light(optional)

GDEH0154D67

BW

2S

200x200

Partial refresh,High Resolution

GDEW0154Z04

BWR

8S

200x200

Three colors

GDEW0154Z17

BWR

16S

152x152

Three colors

GDEW0154C39

BWY

26S

152x152

Three colors

GDEW0154I9F

BW

3S

152x152

Flexible

x

GDEM0154E97LT

BW

3S

152x152

Low temperature

GDEW0154T8

BW

3S

152x152

Partial refresh,4 Grayscale

GDEW0154M09

BW 0.82S 200x200 Fast speed,High Resolution





Datasheet-E Paper Display,Controller IC,Connector,Source Code
