New 1.54 inch e-paper display frontlight partial refresh E-ink GDEH0154D67-FL
  • Product Name: New 1.54 inch e-paper display with backlight, partial refresh E-ink GDEH0154D67-FL
  • Code: 015411
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 170

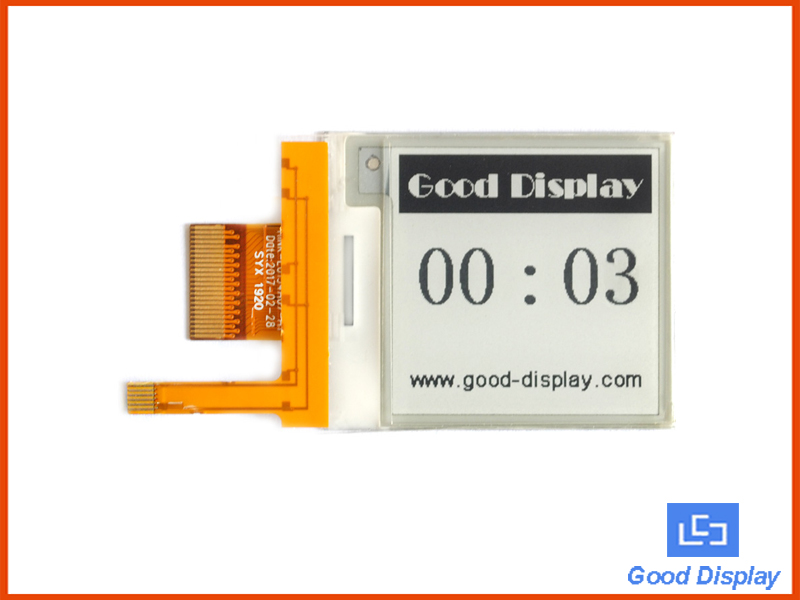

This is a 1.54 inch backlit e-paper display with backlight, 200x200 resolution,  24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform,  supports black and white. Support partial refresh, fast refresh and no flicker refresh.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, GDEH0154D67-FL is a very good choice for applications like shelf label, smart tags, wearable devices, smart home application, industrial instrument, smart cards and other related products, and it can be used in dark surrounding.







Backlight e-paper display

Support partial refresh, fast update and no flicker update.

200x200 resolution
Come with helpful development resources and manual (STM32 platform )
With back-light
Development platform available STM32 / Arduino / Raspberry Pi / ESP8266





Part Number

GDEH0154D67-FL

Type

Dot Matrix

Resolution

200x200

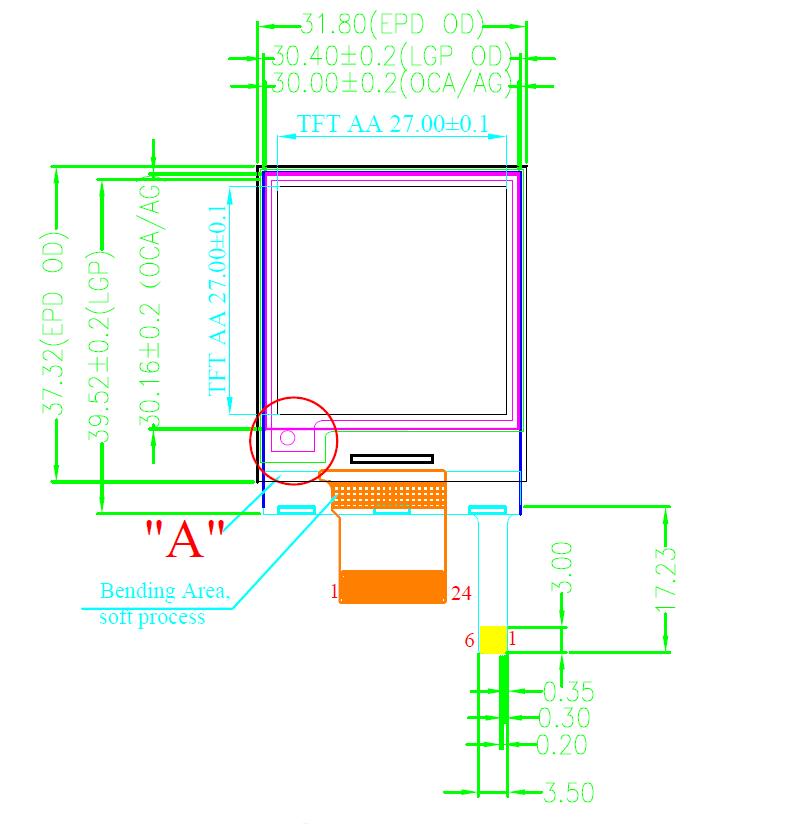

Outline Size(mm)

31.8*.37.32*1.8

Actve Size(mm)

27.00*27.00

Pixel Pitch(mm)

0.135*0.135

Operating Temp.

0~50C

Storage Temp.

-25~60C

Connector

24 Pin FPC

Max Grayscale

2

Color

Black,White
Time of refresh(s) 2
Time of partial refresh(s) 0.26
Interface  SPI
Driving voltage 2.8V-3V
Power consumption of the e-paper only(mW) 4.95
Power consumption of the front-light(mW) 43.5
Purchase Online buyepaper  /AliExpress









Part Number

Color

Full refresh Time

Resolution

Feature

 T/P and Front-light(optional)

GDEH0154D67

BW

2S

200x200

Partial refresh,High Resolution

√

GDEW0154Z04

BWR

8S

200x200

Three colors

√

GDEW0154Z17

BWR

16S

152x152

Three colors

√

GDEW0154C39

BWY

26S

152x152

Three colors

√

GDEW0154I9F

BW

3S

152x152

Flexible

x

GDEM0154E97LT

BW

3S

152x152

Low temperature

√

GDEW0154T8

BW

3S

152x152

Partial refresh,4 Grayscale

√

GDEW0154M09

 BW 0.82S 200x200 Fast speed,High Resolution √







Datasheet-E Paper Display，Controller IC,Connector,Source Code
